Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-RI / AB-RI A2
AB-RI A2
AB-RI A2
AB-RI A2

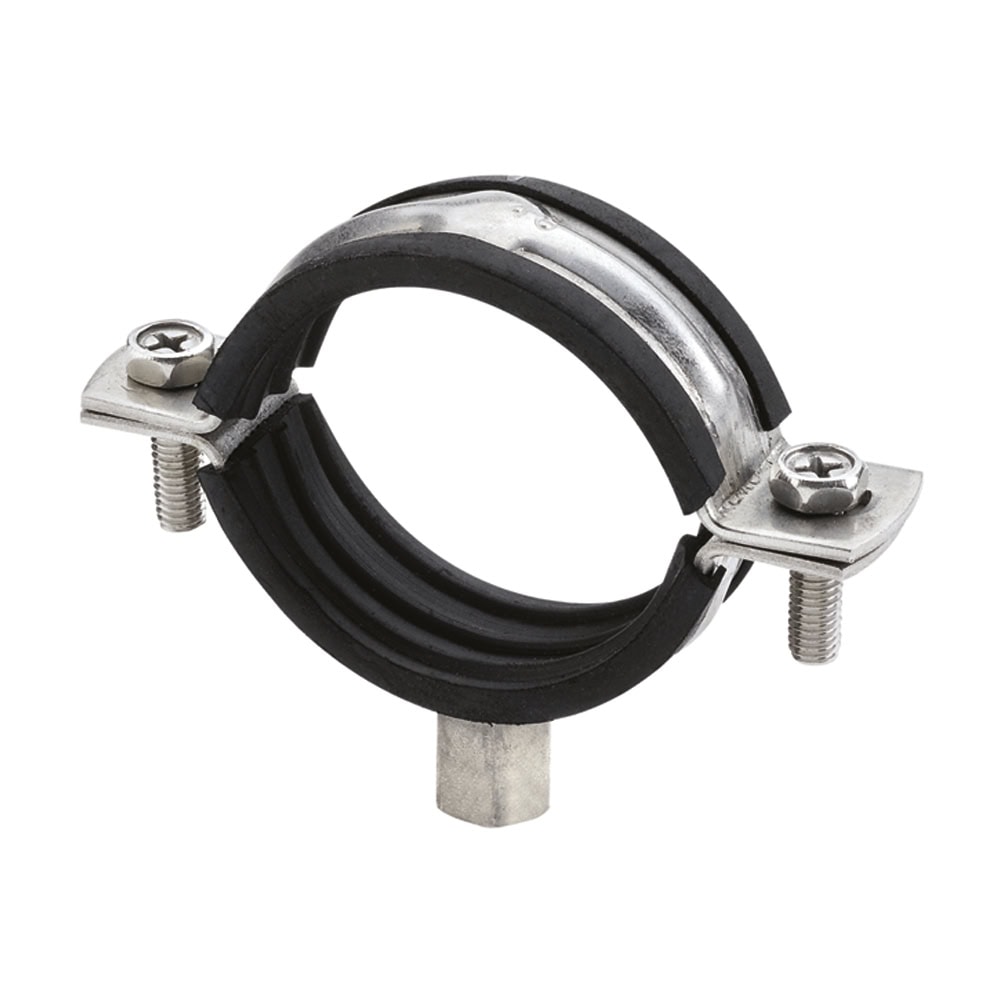

Abraçadeira isofónica reforçada inoxidável M8+M10 AB-RI A2

Braçadeira reforçada em aço inoxidável, com porca soldada de rosca dupla M8+M10. Pode ser utilizada para fixar tubos metálicos ou plásticos de Ø18 a Ø160 mm (conforme o modelo) em diferentes tipos de instalações. Incorpora uma borracha isolante em EPDM para atenuar o ruído e as vibrações. Cumpre o Código Técnico de Construção e a norma DIN-4109 de isolamento acústico. Fabricada em aço inoxidável A2, um material muito resistente à corrosão.
Variantes do produto

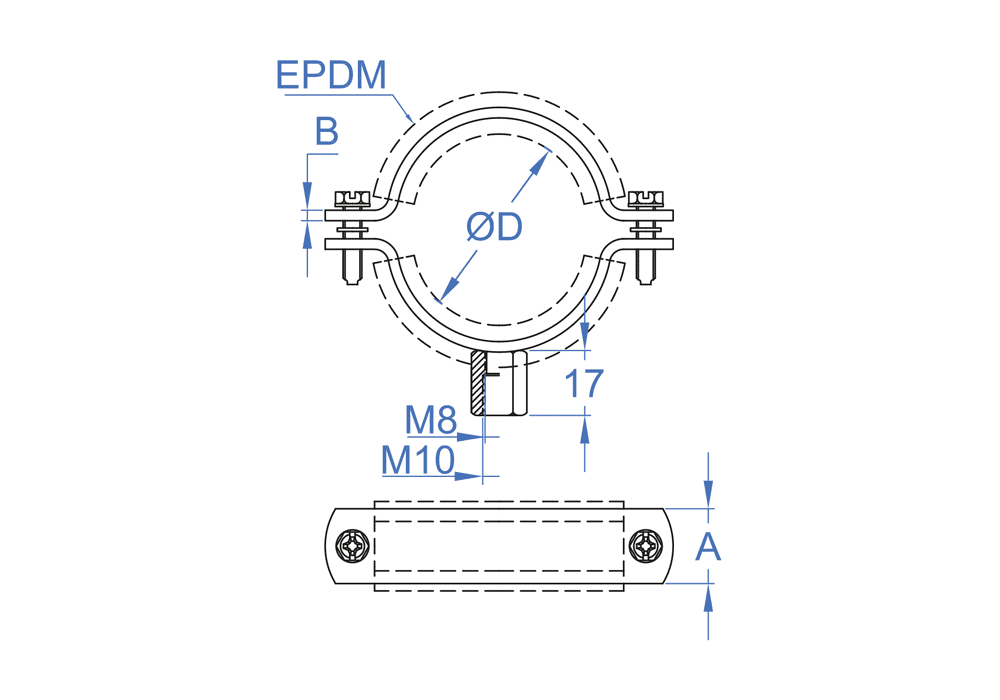

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABRIA201818 (M8+M10)15 - 18150502008423533737953
ABRIA202222 (M8+M10)20 - 24150501508423533737960
ABRIA202828 (M8+M10)26 - 30150501508423533737977
ABRIA203535 (M8+M10)32 - 36150501008423533737984
ABRIA204040 (M8+M10)36 - 4215025758423533737991
ABRIA204848 (M8+M10)47 - 5015025758423533738004
ABRIA205454 (M8+M10)51 - 5515025508423533738011
ABRIA206060 (M8+M10)60 - 6415025508423533738028
ABRIA207575 (M8+M10)75 - 801502508423533044778
ABRIA209090 (M8+M10)87 - 921502508423533044785
ABRIA2110110 (M8+M10)106 - 1121502508423533044815
ABRIA2115115 (M8+M10)114 - 1191502508423533044822
ABRIA2125125 (M8+M10)124 - 1311502508423533044839
ABRIA2140140 (M8+M10)133 - 1401502508423533044846
ABRIA2160160 (M8+M10)159 - 1631502508423533044853
