Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-RI / AB-RI A4
AB-RI A4
AB-RI A4
AB-RI A4

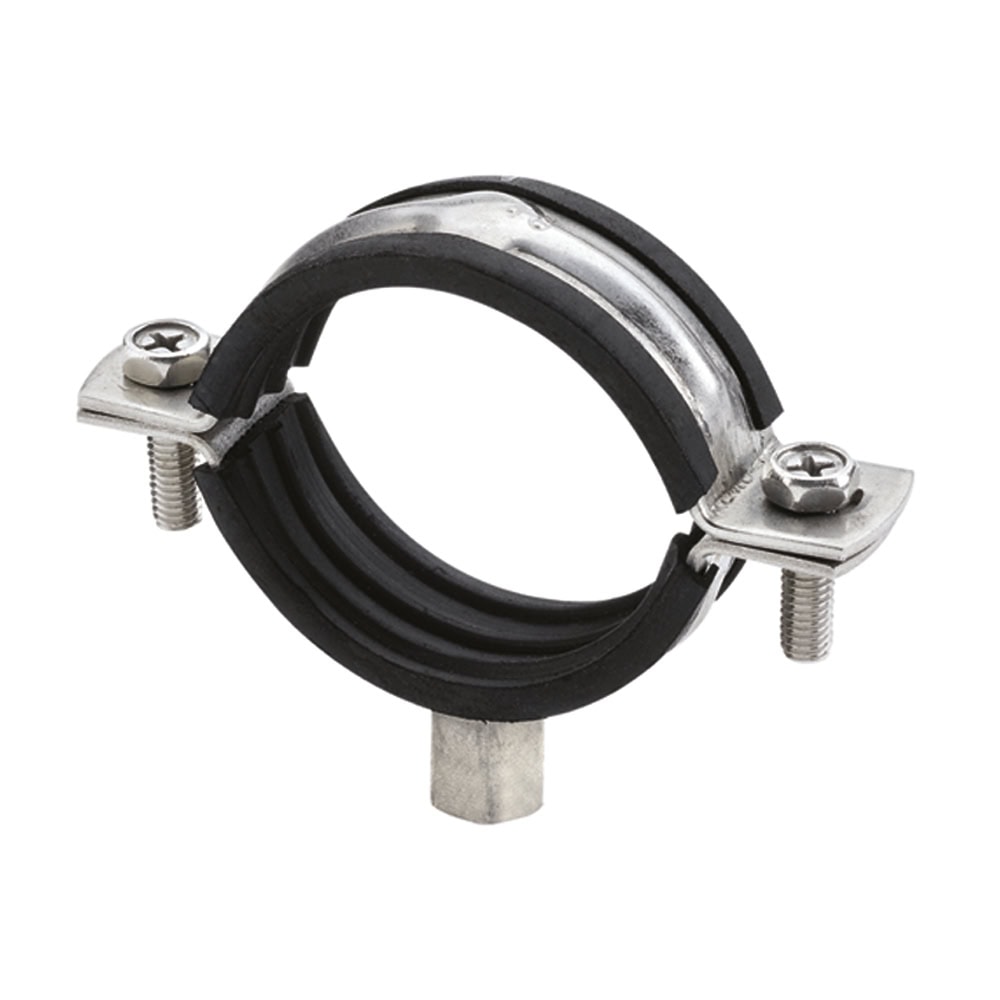

Abraçadeira isofónica reforçada inoxidável M8+M10 AB-RI A4

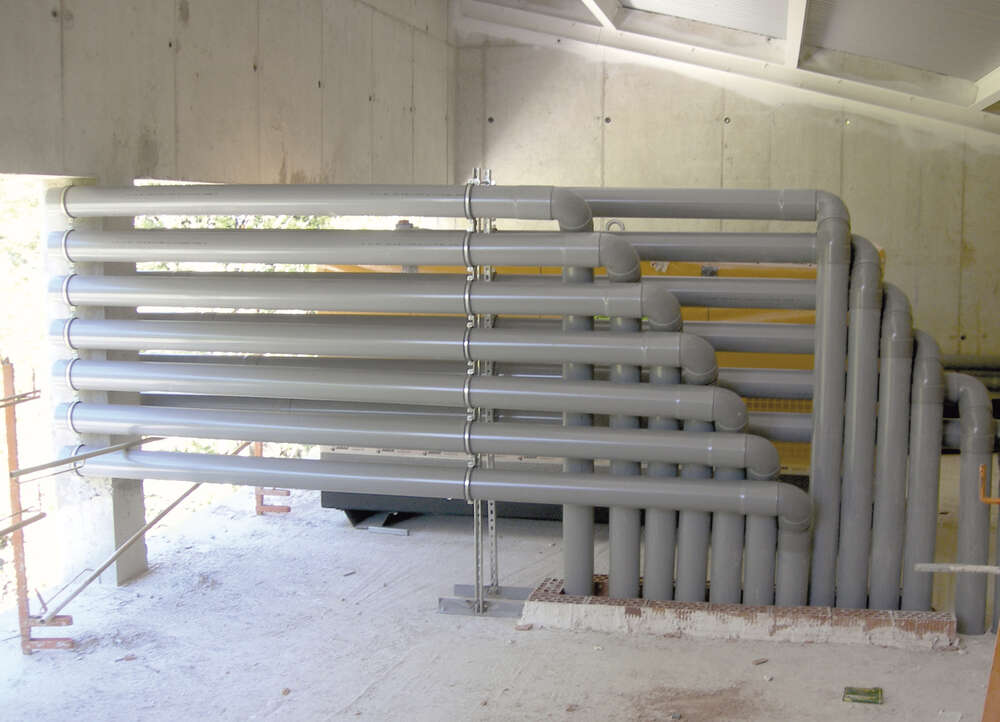

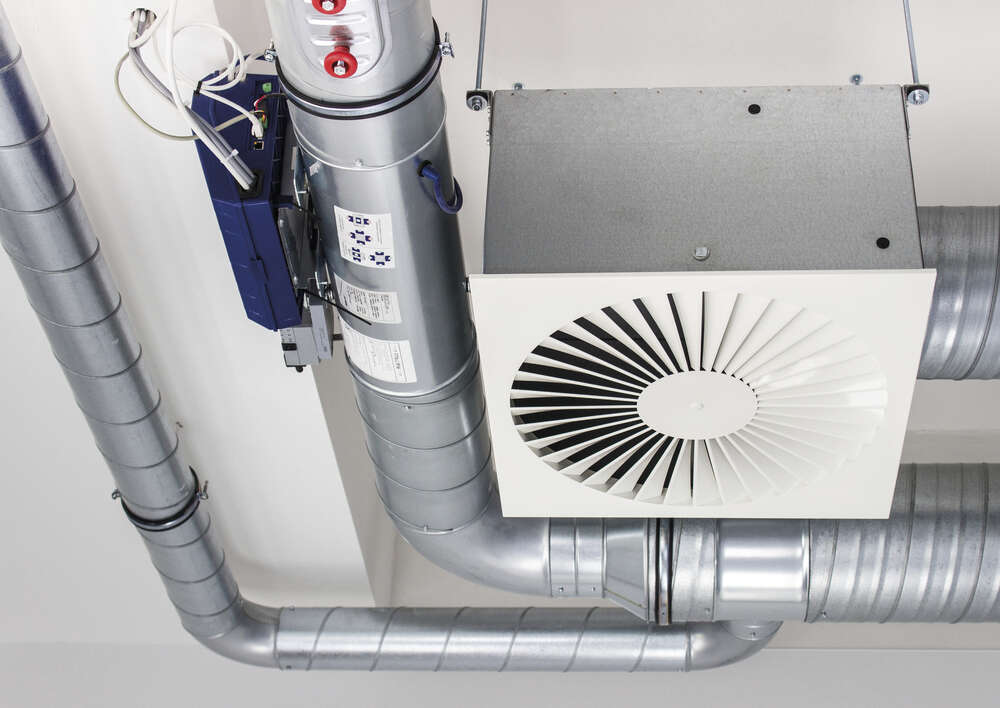

Braçadeira reforçada em aço inoxidável, com porca soldada de rosca dupla M8+M10. Permite fixar tubos metálicos ou plásticos em diferentes tipos de instalações. Pode ser utilizada com tubos entre Ø18 e Ø160 mm (dependendo do modelo). Incorpora uma borracha EPDM para reduzir o ruído e as vibrações. Cumpre o Código Técnico de Construção e a norma DIN-4109 de isolamento acústico. Fabricada em aço inoxidável A4, um material que permite a sua utilização em ambientes altamente corrosivos.
Variantes do produto

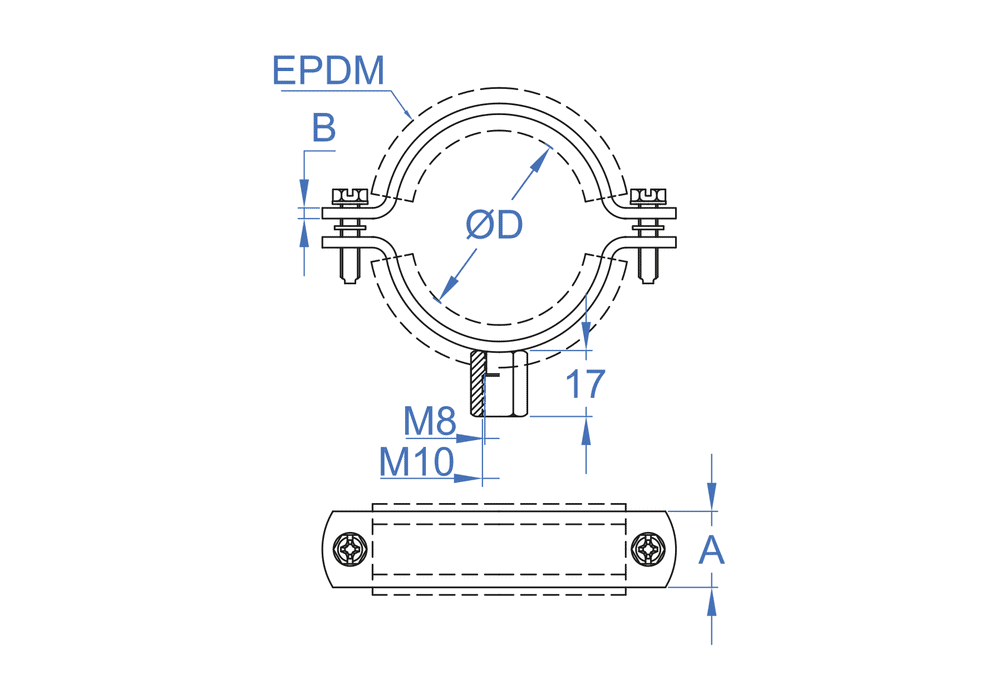

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABRIA401818 (M8+M10)15 - 18150502008423533738936
ABRIA402222 (M8+M10)20 - 24150501508423533738943
ABRIA402828 (M8+M10)26 - 30150501508423533738950
ABRIA403535 (M8+M10)32 - 36150501008423533738967
ABRIA404040 (M8+M10)36 - 4215025758423533738974
ABRIA404848 (M8+M10)47 - 5015025758423533738981
ABRIA405454 (M8+M10)51 - 5515025508423533738998
ABRIA406060 (M8+M10)60 - 6415025508423533739001
ABRIA407575 (M8+M10)75 - 801502508423533045485
ABRIA409090 (M8+M10)87 - 921502508423533045515
ABRIA4110110 (M8+M10)106 - 1121502508423533045522
ABRIA4115115 (M8+M10)114 - 1191502508423533045539
ABRIA4125125 (M8+M10)124 - 1311502508423533045546
ABRIA4140140 (M8+M10)133 - 1401502508423533045553
ABRIA4160160 (M8+M10)159 - 1631502508423533045560
