Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-RI / AB-RI
AB-RI
AB-RI
AB-RI

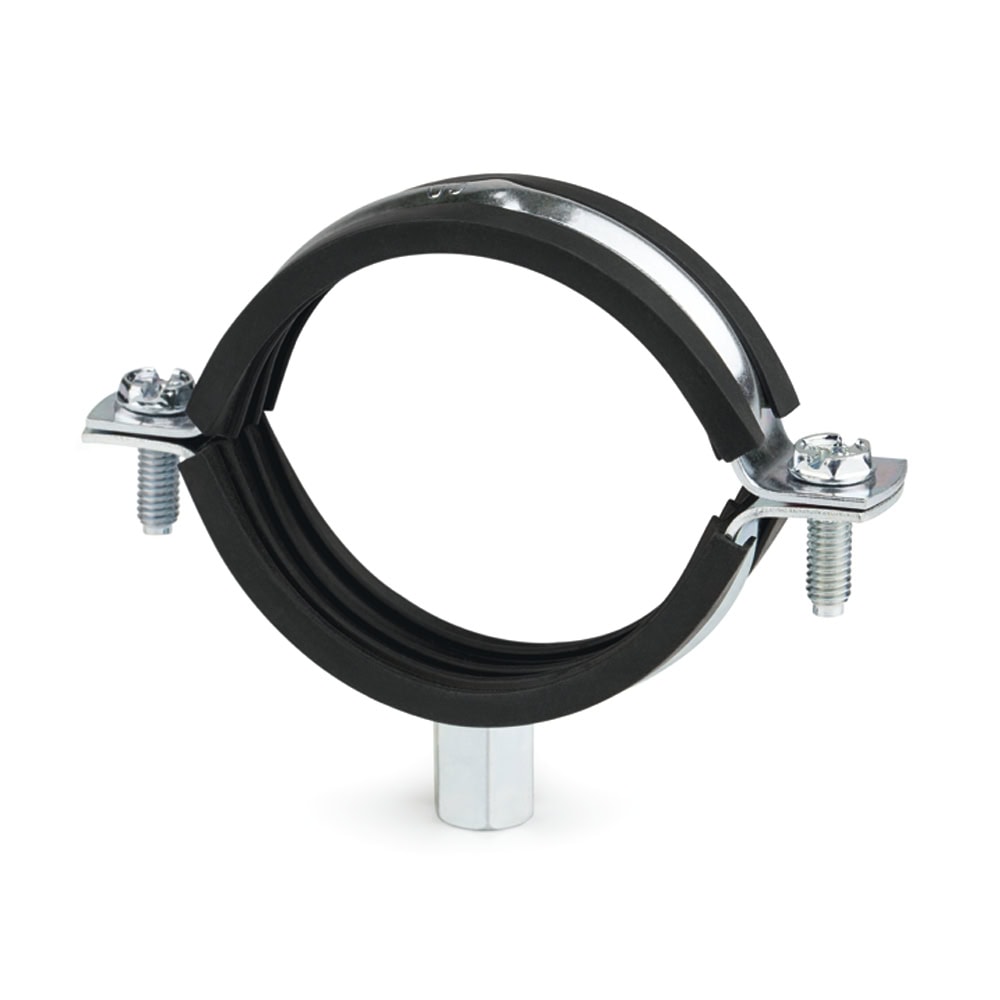

Abraçadeira isofónica reforçada M8+M10 AB-RI

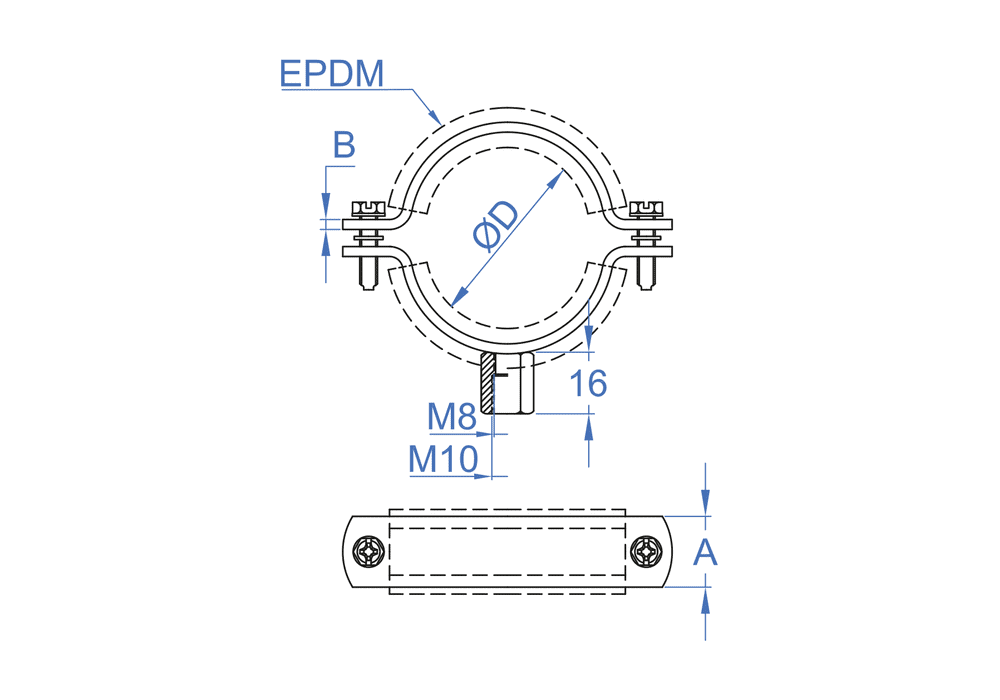

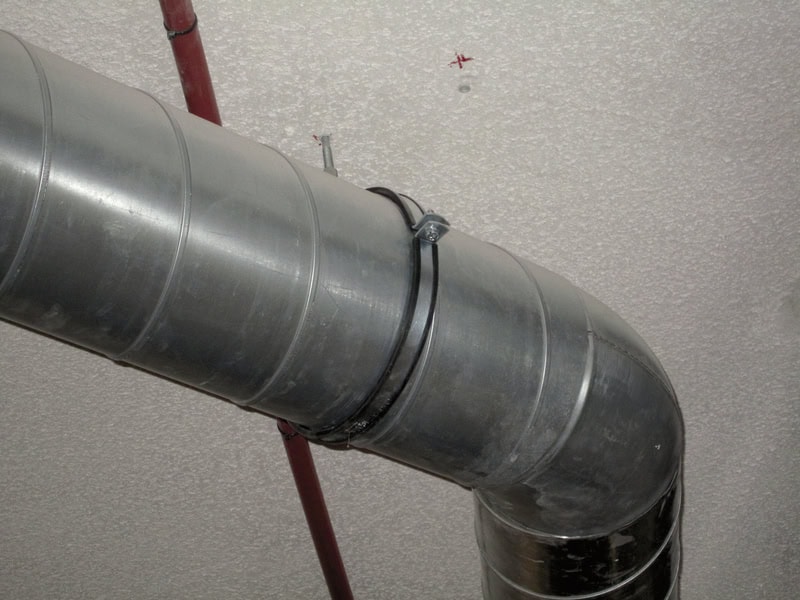

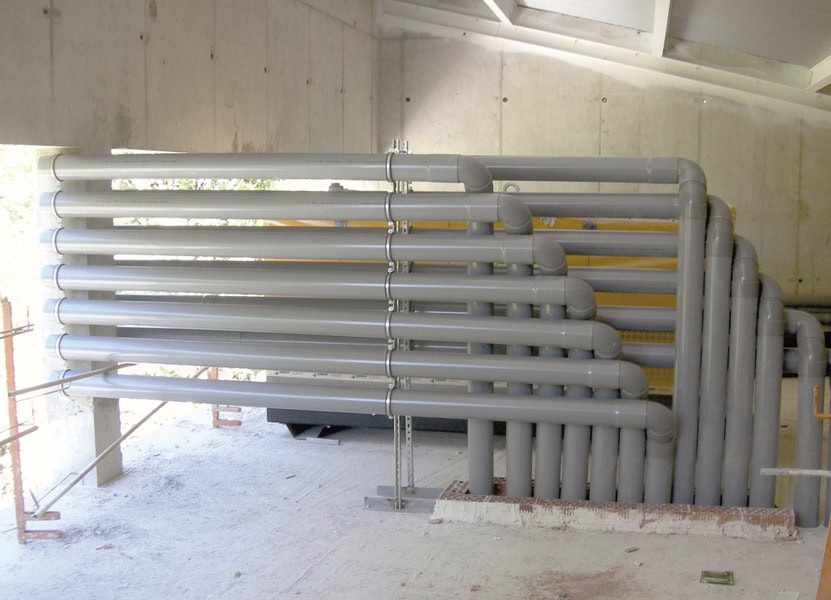

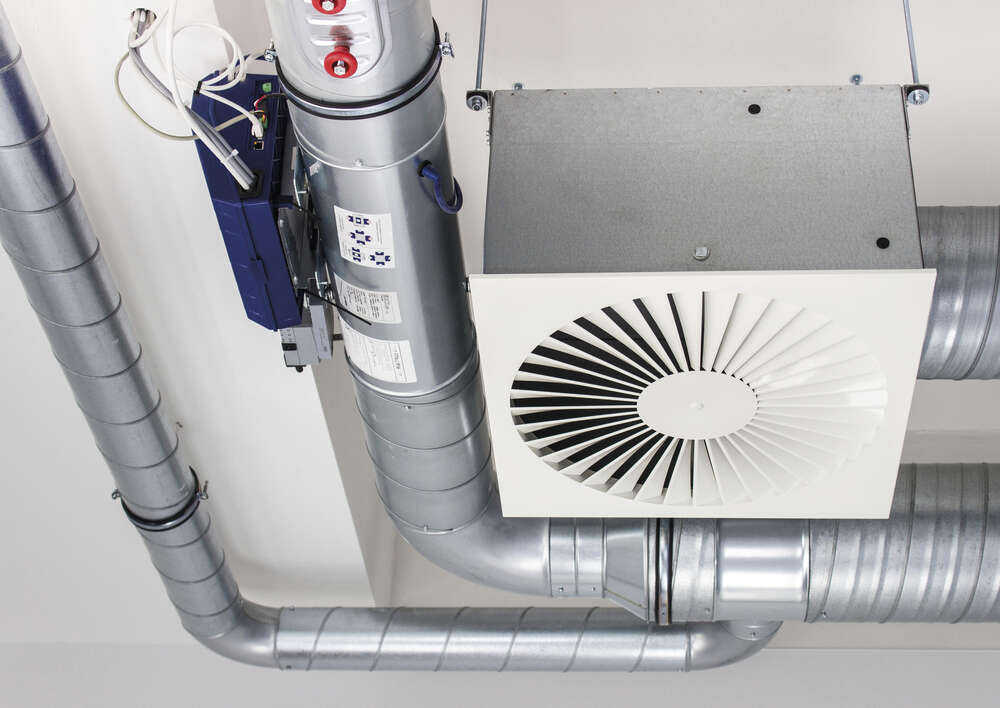

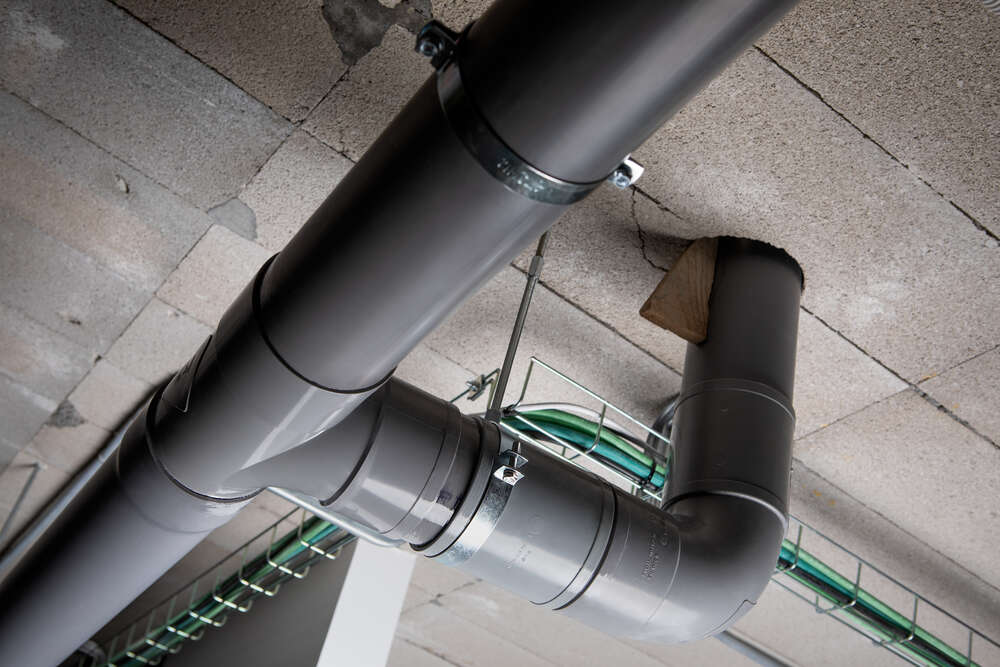

Abraçadeira isofónica reforçada, concebida para fixar tubos de ventilação, plásticos ou metálicos entre Ø18 e Ø355 mm (conforme o modelo). Pode ser utilizada em instalações de abastecimento ou evacuação de água ou transporte de gasóleo, entre outras. Possui uma porca soldada de rosca dupla M8-M10 e uma borracha isolante de EPDM que reduz o ruído e as vibrações. Cumpre o Código Técnico de Construção e a norma DIN-4109 de isolamento acústico. Fabricada em aço zincado.

Aprovações e certificados

+ info
  • EN ISO 3822-1
Variantes do produto
CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABRI01818 (M8+M10)15 - 1980502008423533221407
ABRI02222 (M8+M10)20 - 2580501508423533221506
ABRI02828 (M8+M10)26 - 3080501508423533221605
ABRI03535 (M8+M10)32 - 3680501008423533221704
ABRI04040 (M8+M10)38 - 438025758423533221803
ABRI04848 (M8+M10)47 - 518025758423533221902
ABRI05454 (M8+M10)53 - 568025508423533222008
ABRI06060 (M8+M10)60 - 648025508423533222107
ABRI07070 (M8+M10)68 - 72802508423533222206
ABRI07575 (M8+M10)75 - 801502508423533222305
ABRI08383 (M8+M10)81 - 861502508423533222404
ABRI09090 (M8+M10)87 - 921502508423533222503
ABRI100100 (M8+M10)99 - 1051502508423533222602
ABRI110110 (M8+M10)107 - 1121502508423533222701
ABRI115115 (M8+M10)113 - 1182002508423533222800
ABRI125125 (M8+M10)125 - 1302002508423533222909
ABRI133133 (M8+M10)132 - 1372002508423533223005
ABRI140140 (M8+M10)138 - 1422002508423533223104
ABRI150150 (M8+M10)148 - 1522002508423533223203
ABRI160160 (M8+M10)159 - 1662002508423533223302
ABRI180180 (M8+M10)179 - 1842002508423533045775
ABRI200200 (M8+M10)196 - 2032002508423533223401
ABRI220220 (M8+M10)215 - 2262002508423533223500
ABRI250250 (M8+M10)245 - 2542002508423533045782
ABRI280280 (M8+M10)278 - 2842002508423533831620
ABRI300300 (M8+M10)299 - 3042002508423533045812
ABRI315315 (M8+M10)314 - 3192002508423533045829
ABRI355355 (M8+M10)354 - 3592002508423533045836
