AB-RI
AB-RI
AB-RI

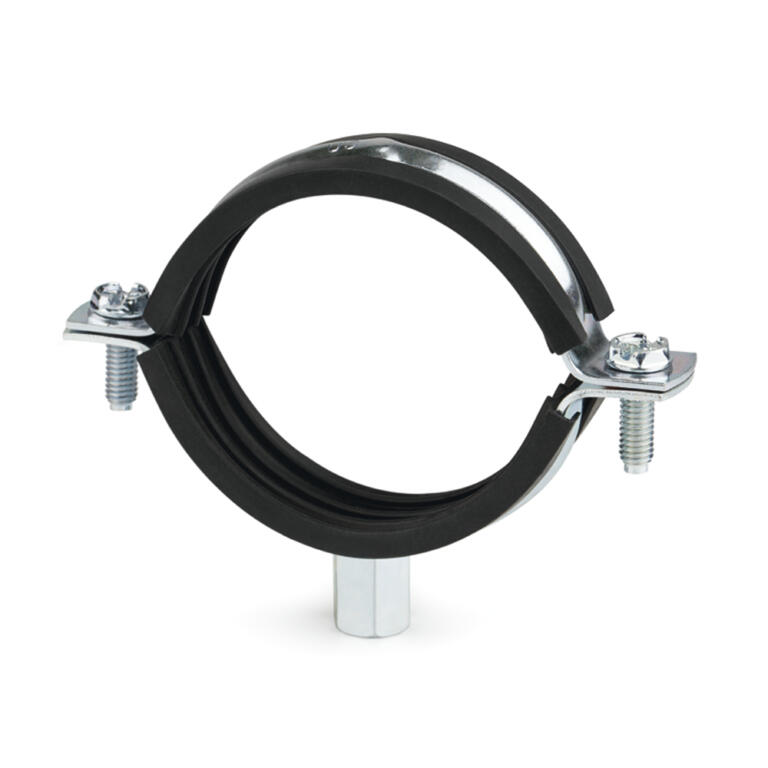

Verstärkte schallentkoppelte Klemme M8+M10 AB-RI

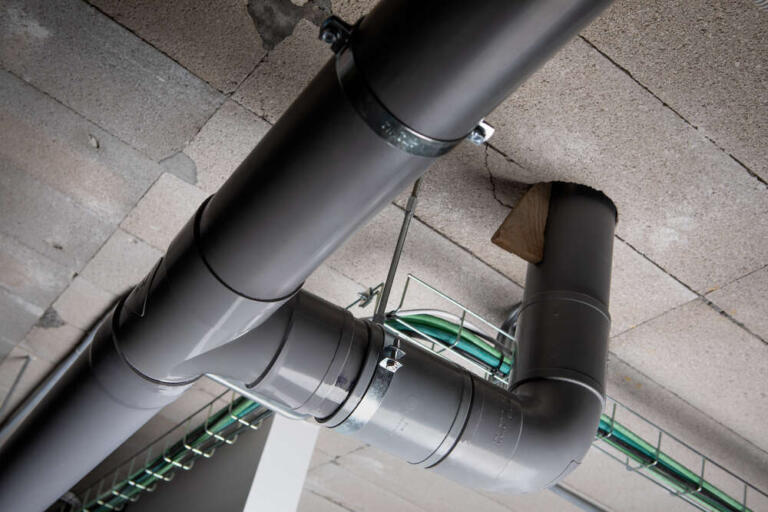

Verstärkte schallisolierende Schelle zur Befestigung von Lüftungsrohren aus Kunststoff oder Metall mit einem Durchmesser zwischen 18 mm und 355 mm (je nach Modell). Sie kann unter anderem in Anlagen zur Wasserversorgung oder -entsorgung sowie zum Transport von Heizöl eingesetzt werden. Sie verfügt über eine verschweißte Doppelgewindemutter M8-M10 und einen isolierenden EPDM-Gummi, der Geräusche und Vibrationen reduziert. Sie entspricht der spanischen Bauverordnung und der Norm DIN-4109 zur Schalldämmung. Sie ist aus verzinktem Stahl gefertigt.

Zulassungen und zertifikate

+ info
  • EN ISO 3822-1
Produktvarianten

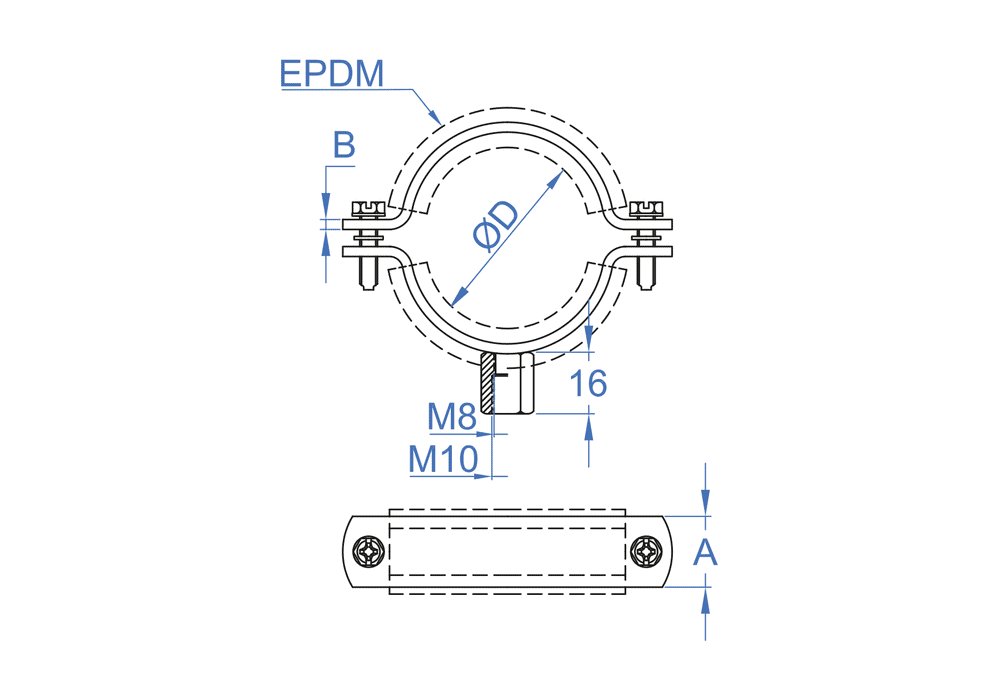

CodeAbmessungØ D [mm]MAXIMALE LASTStk. VerpackungStk. UmverpackungEANTechnische Info.
ABRI01818 (M8+M10)15 - 1980502008423533221407
ABRI02222 (M8+M10)20 - 2580501508423533221506
ABRI02828 (M8+M10)26 - 3080501508423533221605
ABRI03535 (M8+M10)32 - 3680501008423533221704
ABRI04040 (M8+M10)38 - 438025758423533221803
ABRI04848 (M8+M10)47 - 518025758423533221902
ABRI05454 (M8+M10)53 - 568025508423533222008
ABRI06060 (M8+M10)60 - 648025508423533222107
ABRI07070 (M8+M10)68 - 72802508423533222206
ABRI07575 (M8+M10)75 - 801502508423533222305
ABRI08383 (M8+M10)81 - 861502508423533222404
ABRI09090 (M8+M10)87 - 921502508423533222503
ABRI100100 (M8+M10)99 - 1051502508423533222602
ABRI110110 (M8+M10)107 - 1121502508423533222701
ABRI115115 (M8+M10)113 - 1182002508423533222800
ABRI125125 (M8+M10)125 - 1302002508423533222909
ABRI133133 (M8+M10)132 - 1372002508423533223005
ABRI140140 (M8+M10)138 - 1422002508423533223104
ABRI150150 (M8+M10)148 - 1522002508423533223203
ABRI160160 (M8+M10)159 - 1662002508423533223302
ABRI180180 (M8+M10)179 - 1842002508423533045775
ABRI200200 (M8+M10)196 - 2032002508423533223401
ABRI220220 (M8+M10)215 - 2262002508423533223500
ABRI250250 (M8+M10)245 - 2542002508423533045782
ABRI280280 (M8+M10)278 - 2842002508423533831620
ABRI300300 (M8+M10)299 - 3042002508423533045812
ABRI315315 (M8+M10)314 - 3192002508423533045829
ABRI355355 (M8+M10)354 - 3592002508423533045836
