Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-RE / AB-RE A4
AB-RE A4
AB-RE A4

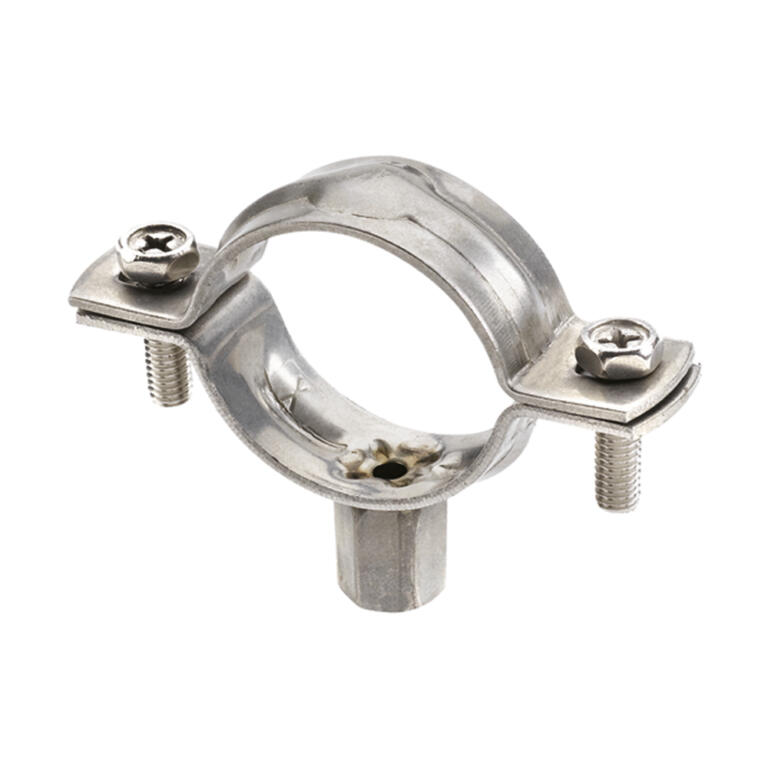

Abraçadeira reforçada inoxidável M8+M10 AB-RE A4

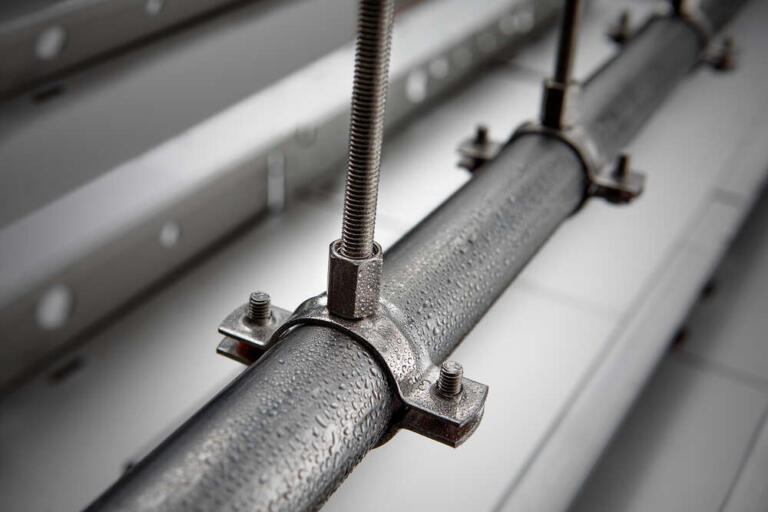

Braçadeira reforçada em aço inoxidável, com porca soldada de rosca dupla M8+M10. Permite fixar tubos metálicos ou plásticos em instalações de ventilação, saneamento ou elétricas. Pode ser utilizada com tubos entre Ø18 e Ø200 mm (dependendo do modelo). Os parafusos possuem arruelas plásticas que evitam a sua perda. É fabricada em aço inoxidável A4, um material que permite a sua utilização em ambientes altamente corrosivos.
Variantes do produto

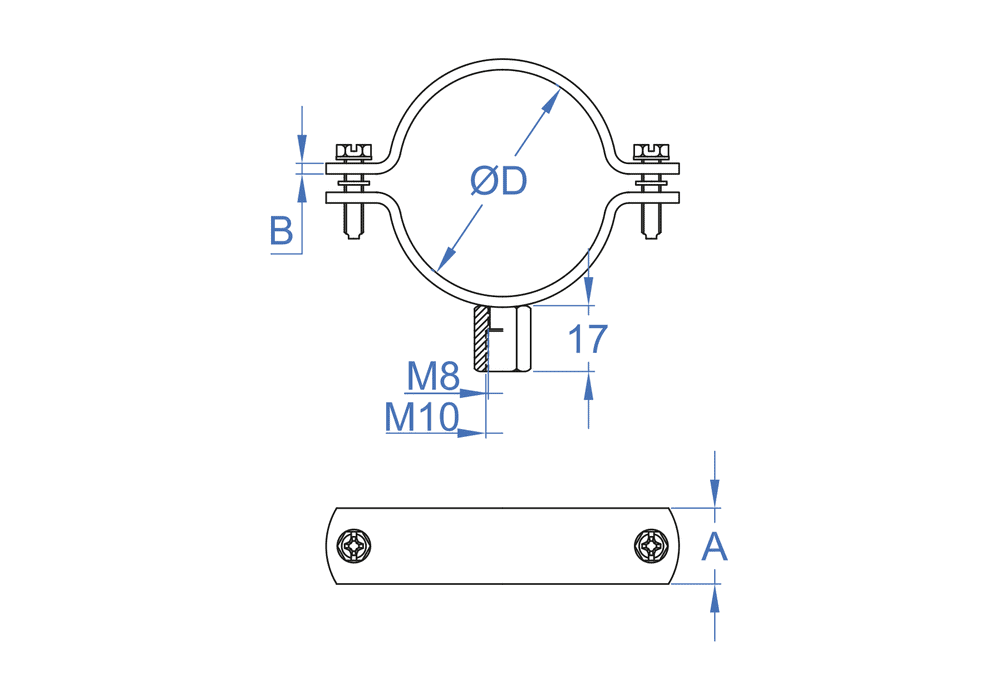

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABREA401818 (M8+M10)15 - 18150503008423533738806
ABREA402222 (M8+M10)20 - 24150502008423533738813
ABREA402828 (M8+M10)26 - 30150501508423533738820
ABREA403535 (M8+M10)32 - 36150501008423533738837
ABREA404040 (M8+M10)36 - 42150251008423533738844
ABREA404848 (M8+M10)47 - 50150251008423533738851
ABREA405454 (M8+M10)51 - 5515025758423533738868
ABREA406060 (M8+M10)60 - 6415025758423533738875
ABREA407575 (M8+M10)75 - 8015025508423533026071
ABREA409090 (M8+M10)87 - 921502508423533045683
ABREA4110110 (M8+M10)106 - 1121502508423533045713
ABREA4115115 (M8+M10)114 - 1191502508423533045720
ABREA4125125 (M8+M10)124 - 1311502508423533045737
ABREA4140140 (M8+M10)133 - 1401502508423533045744
ABREA4160160 (M8+M10)159 - 1631502508423533045751
ABREA4200200 (M8+M10)199 - 2121502508423533045768
