Products / Installation Systems / Heavy metal clamps / AB-RI / AB-RI A2
AB-RI A2
AB-RI A2
AB-RI A2

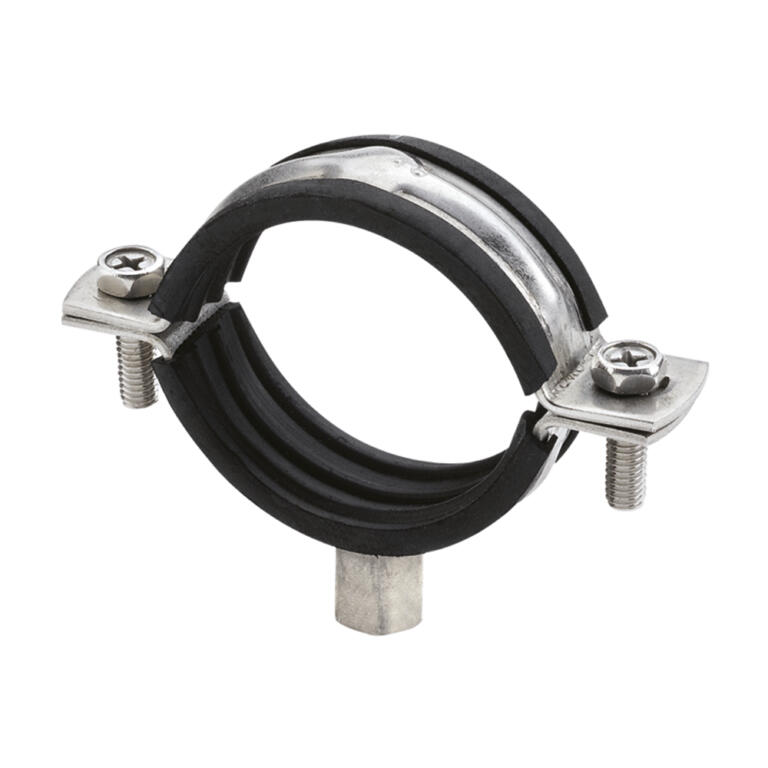

Reinforced stainless steel isophonic clamp M8+M10 AB-RI A2

Reinforced stainless steel clamp with welded double thread nut M8+M10. It can be used to secure metal or plastic pipes from Ø18 to Ø160 mm (depending on the model) in different types of installations. It incorporates EPDM insulating rubber to reduce noise and vibrations. Complies with the Technical Building Code and DIN-4109 noise insulation standard. Made of A2 stainless steel, a highly corrosion-resistant material.
Product variants
CodeSizeØ D [mm]MAXIMUN LOADPcs. BoxPcs. MasterboxEANTechnical info.
ABRIA201818 (M8+M10)15 - 18150502008423533737953
ABRIA202222 (M8+M10)20 - 24150501508423533737960
ABRIA202828 (M8+M10)26 - 30150501508423533737977
ABRIA203535 (M8+M10)32 - 36150501008423533737984
ABRIA204040 (M8+M10)36 - 4215025758423533737991
ABRIA204848 (M8+M10)47 - 5015025758423533738004
ABRIA205454 (M8+M10)51 - 5515025508423533738011
ABRIA206060 (M8+M10)60 - 6415025508423533738028
ABRIA207575 (M8+M10)75 - 801502508423533044778
ABRIA209090 (M8+M10)87 - 921502508423533044785
ABRIA2110110 (M8+M10)106 - 1121502508423533044815
ABRIA2115115 (M8+M10)114 - 1191502508423533044822
ABRIA2125125 (M8+M10)124 - 1311502508423533044839
ABRIA2140140 (M8+M10)133 - 1401502508423533044846
ABRIA2160160 (M8+M10)159 - 1631502508423533044853
