Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7504-P / DIN-7504-P HT Z
DIN-7504-P HT Z

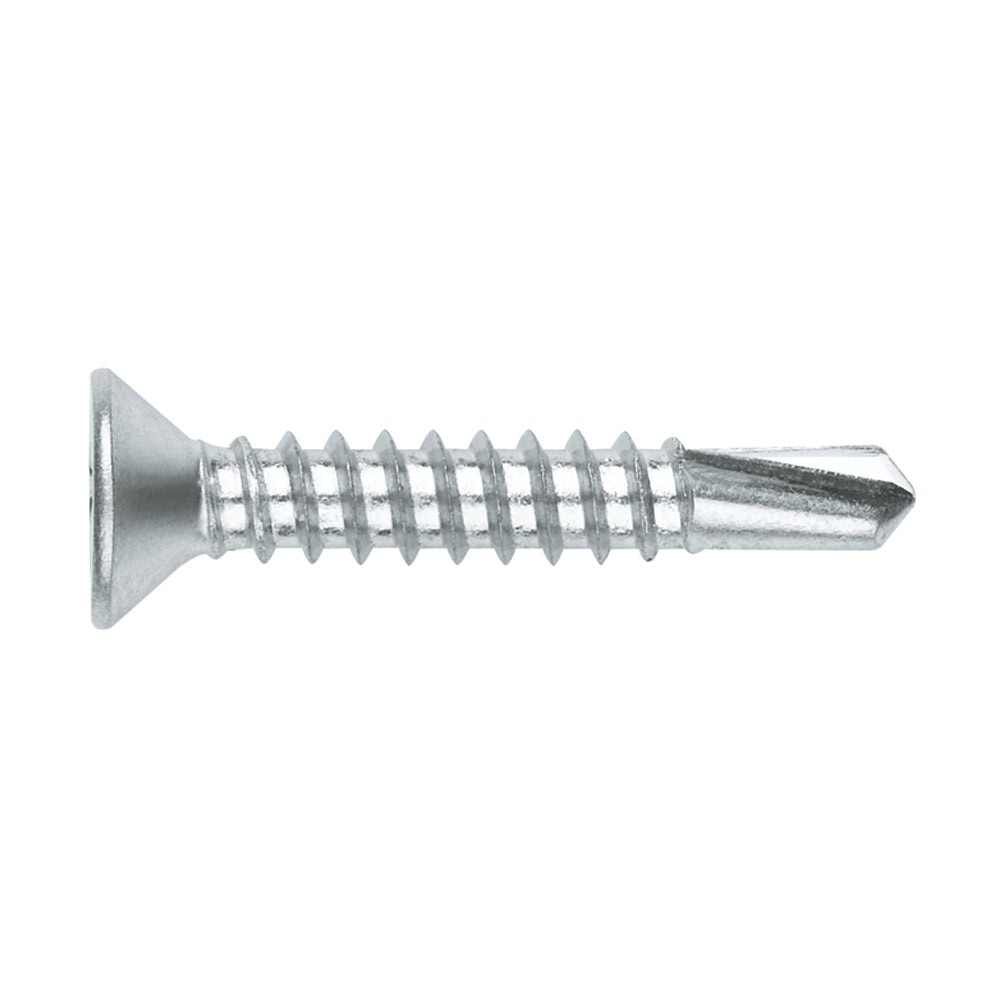

Parafuso DIN-7504-P HT Z

Parafuso DIN-7504P autoperfurante, com cabeça escareada e ranhura TX/OXBIT. A sua ponta perfuradora permite perfurar diretamente metais sem perfuração prévia. Possui rosca autorroscante. A cabeça escareada permite que fique nivelado com o material base. É feito de aço zincado.
Variantes do produto
CódigoMedidaESPESSURA MÁX. AFIXAR [mm]Nº FENDACAPACIDADE DE FURAÇÃOUds. CaixaUds. MasterboxEANInfo. Técnica
ABPT35133,5 x 136,2Tx15/OXBIT150,70-2,251.00024.0008423533841759
ABPT35163,5 x 169,2Tx15/OXBIT150,70-2,251.00024.0008423533841766
ABPT35193,5 x 1912,1Tx15/OXBIT150,70-2,251.00012.0008423533841773
ABPT39133,9 x 135,8Tx15/OXBIT150,70-2,401.00024.0008423533841780
ABPT39163,9 x 168,8Tx15/OXBIT150,70-2,401.00012.0008423533841797
ABPT42134,2 x 134,3Tx20/OXBIT201,75-3,001.00012.0008423533841803
ABPT42164,2 x 167,3Tx20/OXBIT201,75-3,001.00012.0008423533841810
ABPT42194,2 x 1910,3Tx20/OXBIT201,75-3,001.00012.0008423533841827
ABPT42254,2 x 2516,3Tx20/OXBIT201,75-3,005006.0008423533841834
ABPT42324,2 x 3223Tx20/OXBIT201,75-3,005006.0008423533841841
ABPT48194,8 x 198,7Tx25/OXBIT251,75-4,401.0008.0008423533841858
ABPT48254,8 x 2514,7Tx25/OXBIT251,75-4,405006.0008423533841865
ABPT48324,8 x 3221,5Tx25/OXBIT251,75-4,405006.0008423533841872
ABPT48384,8 x 3827,5Tx25/OXBIT251,75-4,405003.0008423533841889
ABPT48504,8 x 5039,5Tx25/OXBIT251,75-4,405003.0008423533841896
