Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7504-N / DIN-7504-N HP A2
DIN-7504-N HP A2

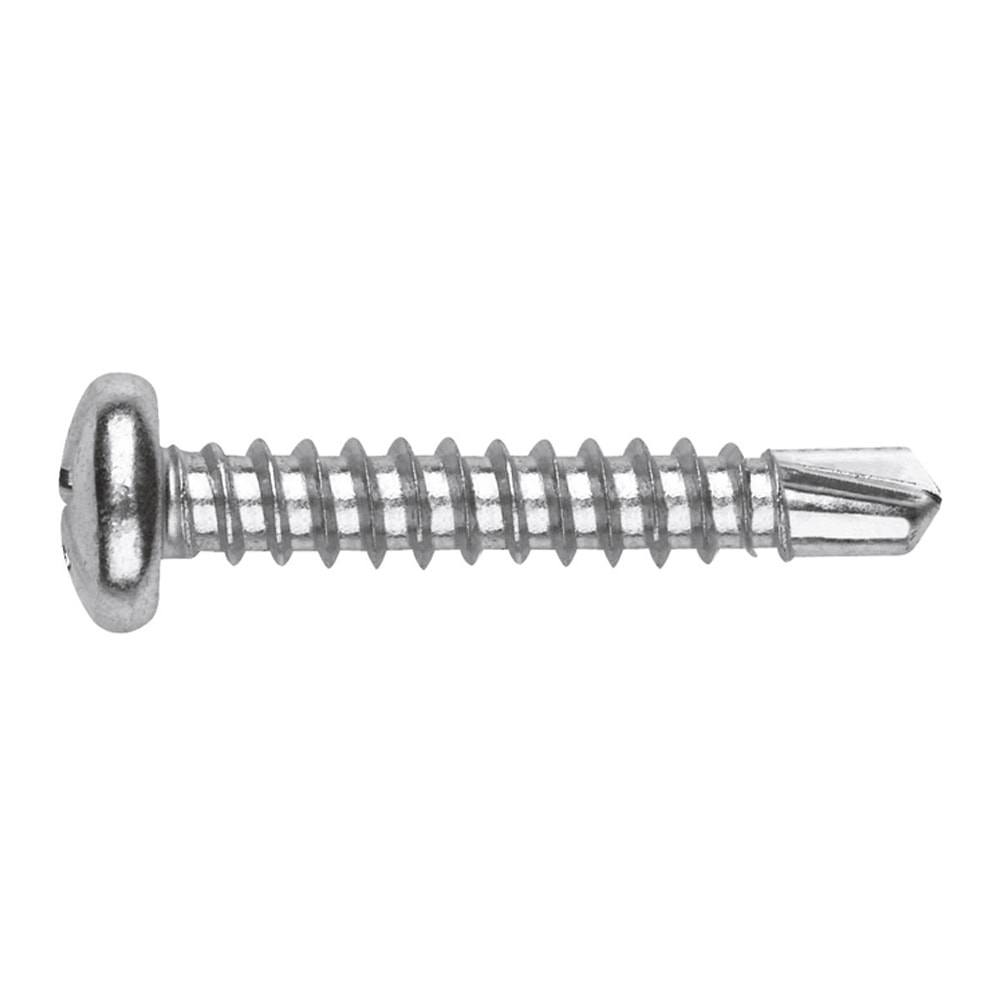

Parafuso inoxidável DIN-7504-N HP A2

Parafuso inoxidável DIN-7504N, com cabeça oval e ranhura PH. Possui uma ponta tipo broca, que permite perfurar diretamente o material, e rosca autorroscante. É fabricado em aço inoxidável A2, um material indicado para trabalhar exclusivamente em alumínio.
Variantes do produto
CódigoMedidaESPESSURA MÁX. AFIXAR [mm]Nº FENDACAPACIDADE DE FURAÇÃOUds. CaixaUds. MasterboxEANInfo. Técnica
ABRA235093,5 x 9,52,85PH20,70-2,251.00024.0008423533136008
ABRA235133,5 x 136,2PH20,70-2,2550012.0008423533136107
ABRA235193,5 x 1912,1PH20,70-2,2550012.0008423533136305
ABRA242134,2 x 134,3PH21,75-3,0050012.0008423533136701
ABRA242164,2 x 167,3PH21,75-3,0050012.0008423533136800
ABRA242194,2 x 1910,3PH21,75-3,0050012.0008423533136909
ABRA242254,2 x 2516,3PH21,75-3,002506.0008423533137005
ABRA248164,8 x 165,5PH21,75-4,402506.0008423533137104
ABRA248194,8 x 198,7PH21,75-4,402506.0008423533137203
ABRA248254,8 x 2514,7PH21,75-4,402506.0008423533137302
ABRA248324,8 x 3221,5PH21,75-4,402504.0008423533137401
ABRA248384,8 x 3827,5PH21,75-4,402503.0008423533137500
ABRA248504,8 x 5039,5PH21,75-4,402503.0008423533137609
