Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7504-P / DIN-7504-P HP N
DIN-7504-P HP N

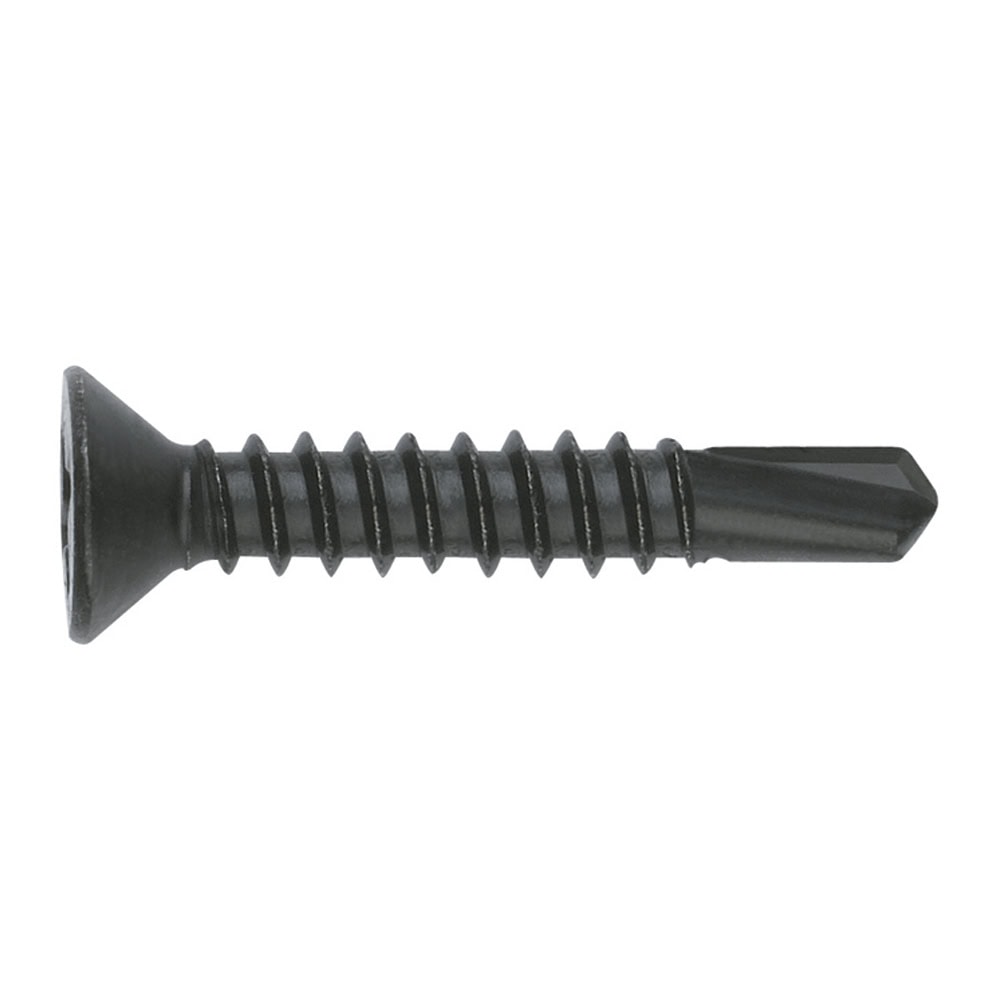

Parafuso zincado preto DIN-7504-P HP N

Parafuso autoperfurante escareado DIN-7504-P, com ranhura PH e rosca autorroscante. A ponta broca permite perfurar diretamente o material sem fazer furos prévios. A cabeça escareada fica embutida no material base. Pode ser usado para montar chapas ou fixá-las a perfis. É feito de aço zincado preto.
Variantes do produto
CódigoMedidaESPESSURA MÁX. AFIXAR [mm]Nº FENDACAPACIDADE DE FURAÇÃOUds. CaixaUds. MasterboxEANInfo. Técnica
NBP35133,5 x 136,2PH20,70-2,251.00024.0008423533132901
NBP35163,5 x 169,2PH20,70-2,251.00024.0008423533133007
NBP35193,5 x 1912,1PH20,70-2,251.00012.0008423533133113
NBP35253,5 x 2518,1PH20,70-2,2550012.0008423533130563
NBP42164,2 x 167,3PH21,75-3,001.00012.0008423533134202
NBP42194,2 x 1910,3PH21,75-3,001.00012.0008423533134301
NBP42254,2 x 2516,3PH21,75-3,005006.0008423533130747
NBP42324,2 x 3223PH21,75-3,005006.0008423533131065
NBP42384,2 x 3829PH21,75-3,005006.0008423533131546
NBP48254,8 x 2514,7PH21,75-4,405006.0008423533132642
NBP48324,8 x 3221,5PH21,75-4,405006.0008423533132147
NBP48384,8 x 3827,5PH21,75-4,405003.0008423533132772
NBP48504,8 x 5039,5PH21,75-4,405003.0008423533131461
