Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7504-P / DIN-7504-P HP Z
DIN-7504-P HP Z

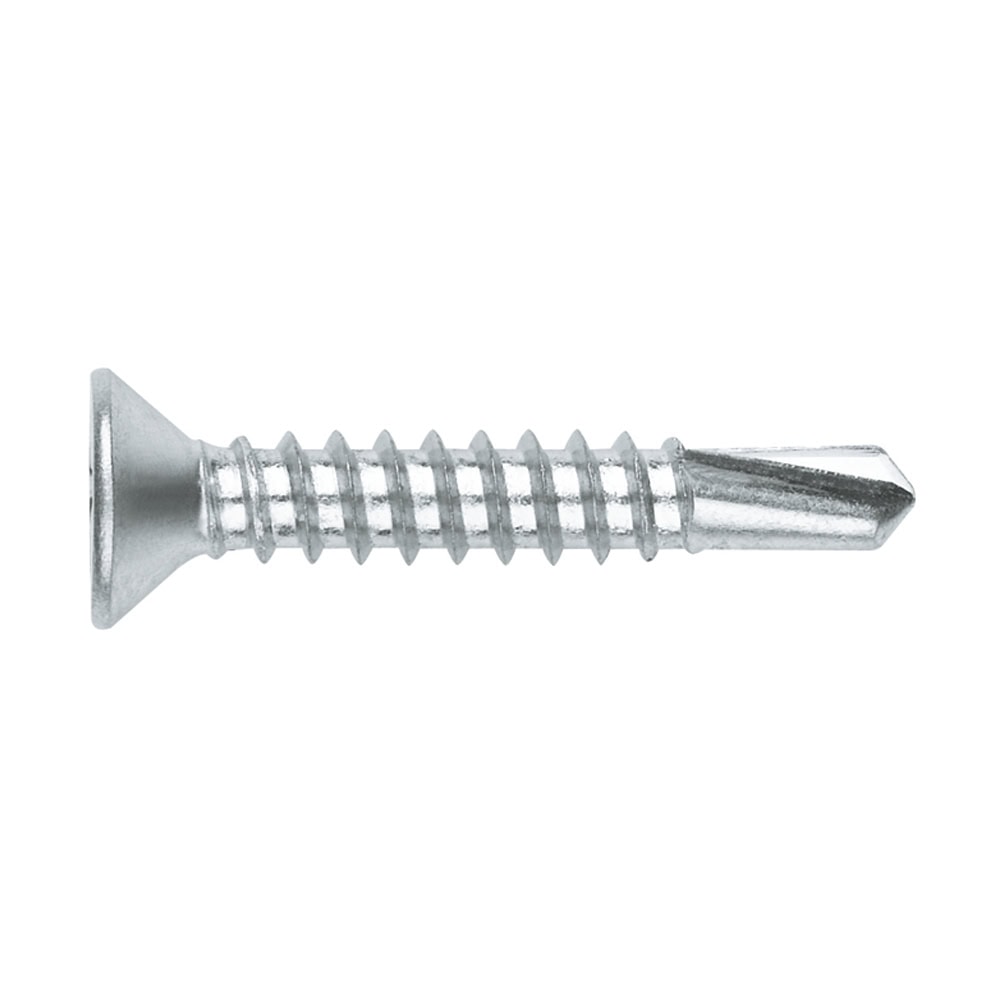

Parafuso DIN-7504-P HP Z

Parafuso DIN-7504P autoperfurante, com cabeça avellanada e ranhura PH. A ponta broca permite perfurar diretamente metais sem fazer um furo prévio. Possui rosca autorroscante. A cabeça avellanada permite que fique nivelada com o material base. É fabricado em aço zincado.
Variantes do produto
CódigoMedidaESPESSURA MÁX. AFIXAR [mm]Nº FENDACAPACIDADE DE FURAÇÃOUds. CaixaUds. MasterboxEANInfo. Técnica
ABP35093,5 x 9,52,85PH20,70-2,251.00024.0008423533129406
ABP35113,5 x 114,2PH20,70-2,251.00024.0008423533129505
ABP35133,5 x 136,2PH20,70-2,251.00024.0008423533129604
ABP35163,5 x 169,2PH20,70-2,251.00024.0008423533129703
ABP35193,5 x 1912,1PH20,70-2,251.00012.0008423533129802
ABP35223,5 x 2215,1PH20,70-2,251.00012.0008423533129901
ABP35253,5 x 2518,1PH20,70-2,2550012.0008423533130068
ABP39133,9 x 135,8PH20,70-2,401.00024.0008423533130105
ABP39163,9 x 168,8PH20,70-2,401.00012.0008423533130204
ABP39193,9 x 1911,7PH20,70-2,401.00012.0008423533130303
ABP39223,9 x 2214,7PH20,70-2,4050012.0008423533128171
ABP39253,9 x 2517,7PH20,70-2,4050012.0008423533130242
ABP39323,9 x 3224,5PH20,70-2,405006.0008423533127563
ABP39383,9 x 3830,5PH20,70-2,405006.0008423533129468
ABP42134,2 x 134,3PH21,75-3,001.00012.0008423533130808
ABP42164,2 x 167,3PH21,75-3,001.00012.0008423533130907
ABP42194,2 x 1910,3PH21,75-3,001.00012.0008423533131003
ABP42224,2 x 2213,3PH21,75-3,0050012.0008423533127273
ABP42254,2 x 2516,3PH21,75-3,005006.0008423533190659
ABP42324,2 x 3223PH21,75-3,005006.0008423533191557
ABP42384,2 x 3829PH21,75-3,005006.0008423533128089
ABP48134,8 x 133,7PH21,75-4,401.00012.0008423533131508
ABP48164,8 x 165,5PH21,75-4,401.00012.0008423533131607
ABP48194,8 x 198,7PH21,75-4,401.0008.0008423533131706
ABP48254,8 x 2514,7PH21,75-4,405006.0008423533189950
ABP48324,8 x 3221,5PH21,75-4,405006.0008423533190758
ABP48384,8 x 3827,5PH21,75-4,405003.0008423533128843
ABP48504,8 x 5039,5PH21,75-4,405003.0008423533128072
ABP55195,5 x 198,7PH31,75-5,255006.0008423533128942
ABP55255,5 x 2514,7PH31,75-5,255006.0008423533129642
ABP55325,5 x 3221,5PH31,75-5,255003.0008423533129567
ABP55385,5 x 3827,5PH31,75-5,255003.0008423533126542
ABP55505,5 x 5039,5PH31,75-5,255003.0008423533127969
