Produtos / Ancoragens / Fixações metálicas / MTH / MTH-AT
MTH-AT
MTH-AT
MTH-AT
MTH-AT

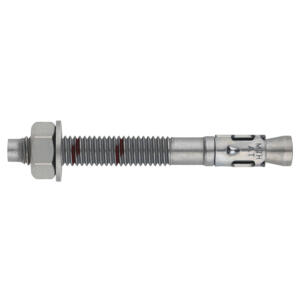

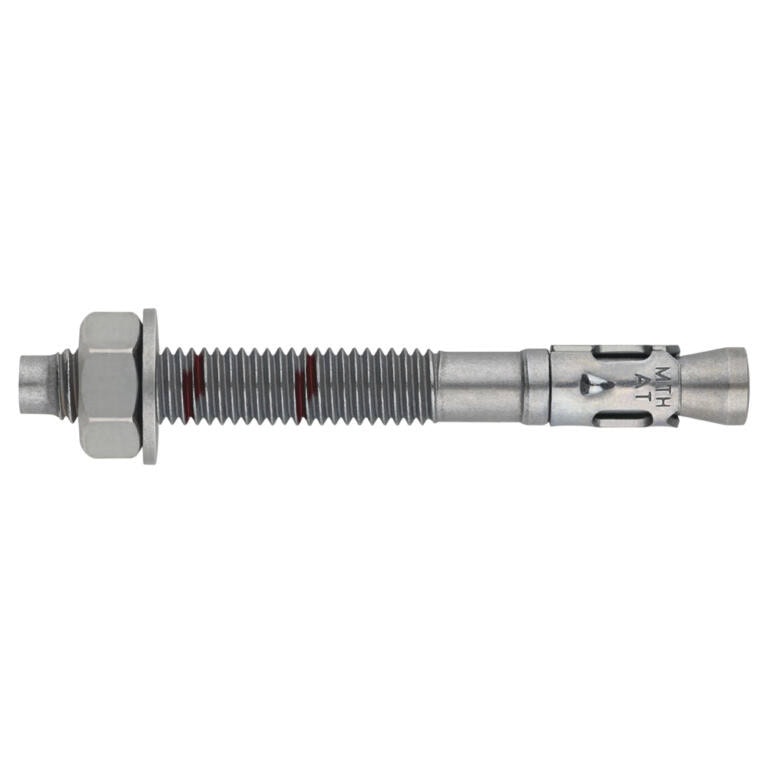

Bucha para betão não fissurado MTH-AT

Bucha para cargas elevadas em betão não fissurado. Bucha metálica segmentada, expansão controlada por binário. ETE Opt. 7 para aplicações estruturais em betão não fissurado. Veio e clipe em aço ATLANTIS C4-M.
Amplie as informações

Aprovações e certificados

+ info
  • ETA UN 05-0242
  • CE 2005
Variantes do produto
CódigoMedidaESPESSURA MÁX. AFIXAR [mm]LETRA EIXO (LONGITUDE)Uds. CaixaUds. MasterboxEANInfo. Técnica
AHAT06060M6 x 60 Ø62B2001.2008423533894908
AHAT06080M6 x 80 Ø622D2001.2008423533895523
AHAT06100M6 x 100 Ø642E2008008423533895547
AHAT08060M8 x 60 Ø83B1006008423533895578
AHAT08075M8 x 75 Ø85C1006008423533895608
AHAT08090M8 x 90 Ø820E1006008423533895622
AHAT08115M8 x 115 Ø845G1004008423533895639
AHAT08130M8 x 130 Ø860H1004008423533895660
AHAT08155M8 x 155 Ø885J1002008423533895912
AHAT10070M10 x 70 Ø103C1004008423533895929
AHAT10080M10 x 80 Ø1013D1004008423533895936
AHAT10090M10 x 90 Ø1010E1004008423533895943
AHAT10100M10 x 100 Ø1020E1004008423533895950
AHAT10120M10 x 120 Ø1040G503008423533895967
AHAT10140M10 x 140 Ø1060H502008423533895974
AHAT10150M10 x 150 Ø1070I502008423533895981
AHAT10160M10 x 160 Ø1080J502008423533895998
AHAT10170M10 x 170 Ø1090K502008423533896001
AHAT10210M10 x 210 Ø10130N501508423533896018
AHAT12090M12 x 90 Ø1213E502008423533896025
AHAT12100M12 x 100 Ø128E502008423533896032
AHAT12110M12 x 110 Ø1218F502008423533896049
AHAT12130M12 x 130 Ø1238H502008423533896056
AHAT12140M12 x 140 Ø1248H502008423533896063
AHAT12160M12 x 160 Ø1268J501008423533896070
AHAT12180M12 x 180 Ø1288L501508423533896094
AHAT12200M12 x 200 Ø12108M501008423533896124
AHAT12220M12 x 220 Ø12128O501008423533896155
AHAT12250M12 x 250 Ø12158Q25508423533896216
AHAT16125M16 x 125 Ø163G251008423533896223
AHAT16145M16 x 145 Ø1623I251008423533896230
AHAT16170M16 x 170 Ø1648K25508423533896896
AHAT16220M16 x 220 Ø1698O25508423533896247
AHAT16250M16 x 250 Ø16128Q25508423533896254
AHAT16280M16 x 280 Ø16158S25508423533896261
AHAT20170M20 x 170 Ø2023K20408423533896278
AHAT20220M20 x 220 Ø2073O20408423533896285
AHAT20270M20 x 270 Ø20123S20408423533896292
