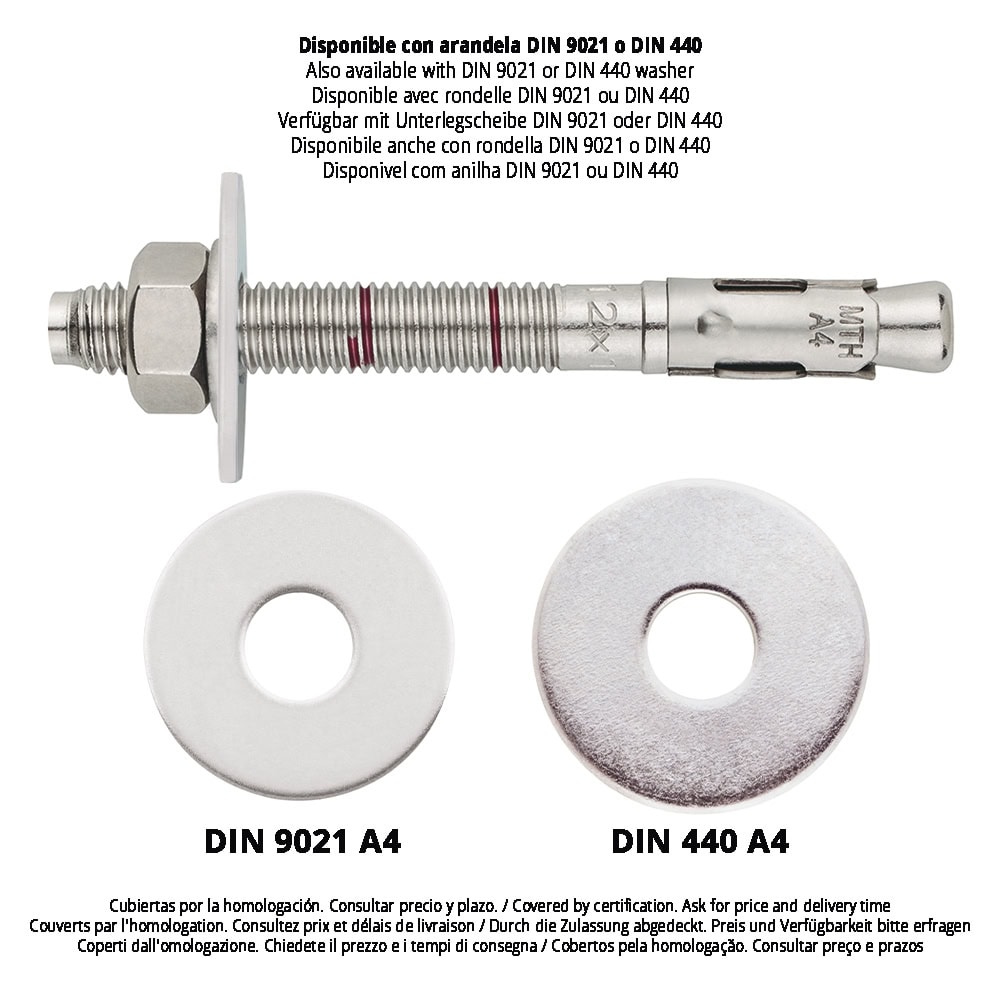

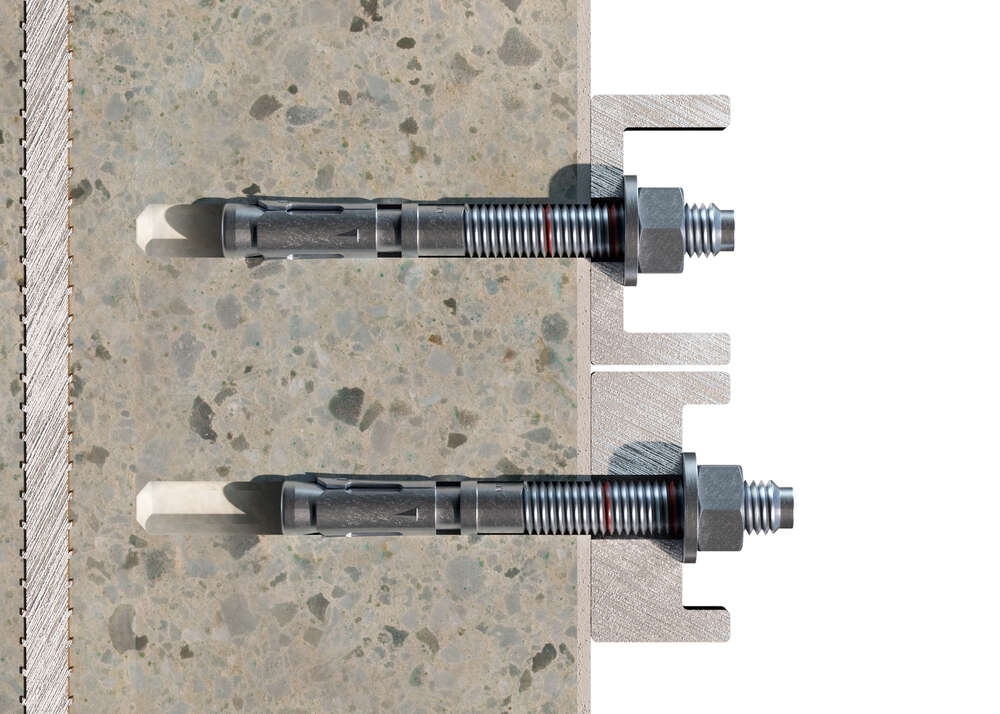

Bucha metálica segmentada inoxidável MTH -A4

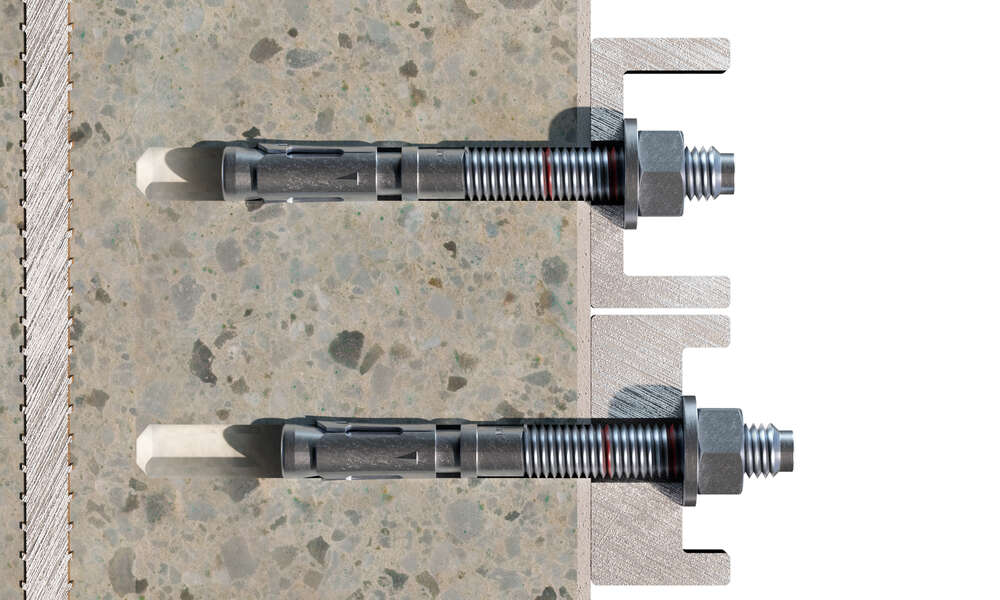

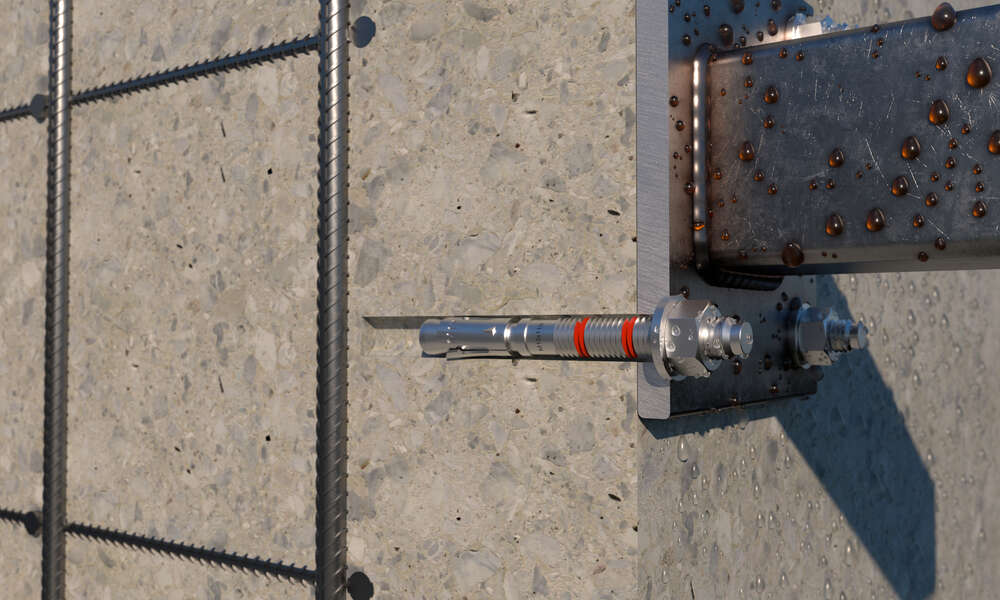

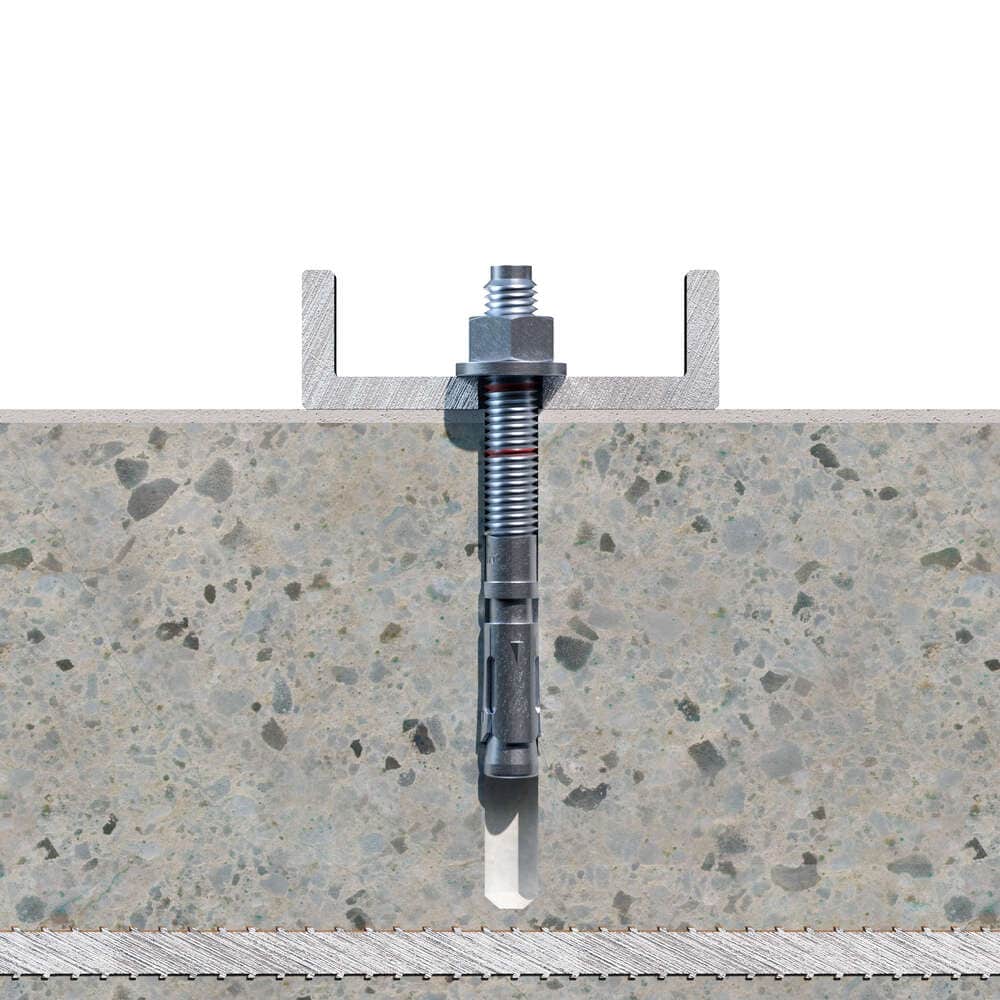

Bucha metálica segmentada, para cargas elevadas em betão não fissurado. Funciona por expansão controlada do binário. ETE Opt. 7 para aplicações estruturais. Veio e clipe em aço inoxidável A4, o que confere à âncora uma elevada proteção contra a corrosão.
Amplie as informações

Aprovações e certificados

+ info
  • ETA UN 05-0242
  • CE 2005
  • Resistente ao fogo
Medida não homologada
Variantes do produto

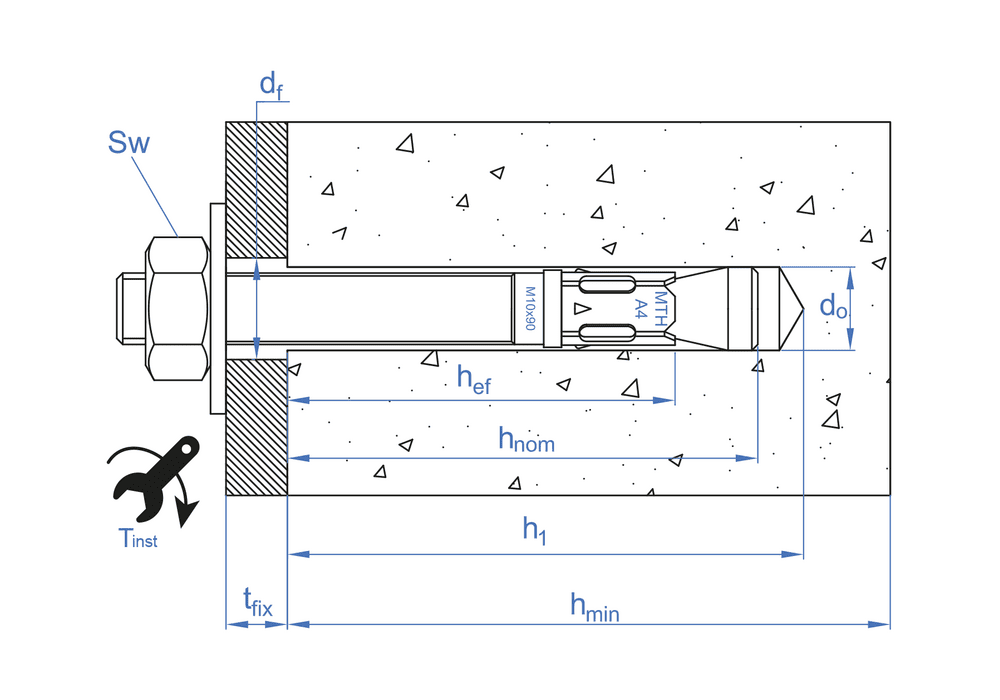

CódigoMedidaESPESSURA MÁX. AFIXAR [mm]ESPESSURA MIN. DO MATERIAL BASELETRA EIXO (LONGITUDE)Uds. CaixaUds. MasterboxEANInfo. Técnica
MIA406045 M6 x 45 Ø61100A2001.2008423533579645
MIA406060M6 x 60 Ø62100B2001.2008423533579652
MIA406080M6 x 80 Ø622100D2001.2008423533579669
MIA406090M6 x 90 Ø642100D2001.2008423533938435
MIA408050 M8 x 50 Ø84100A1008008423533579676
MIA408060M8 x 60 Ø83100B1006008423533938442
MIA408075M8 x 75 Ø85100C1006008423533087713
MIA408090M8 x 90 Ø820100E1006008423533579683
MIA408105M8 x 105 Ø835100F1004008423533938459
MIA408115M8 x 115 Ø845100G1004008423533579690
MIA408130M8 x 130 Ø860100H1004008423533938466
MIA410060 M10 x 60 Ø105100B1004008423533938473
MIA410070M10 x 70 Ø103100C1004008423533579706
MIA410080M10 x 80 Ø1013100D1004008423533938480
MIA410090M10 x 90 Ø1010110E1004008423533087706
MIA410100M10 x 100 Ø1020110E1002008423533938497
MIA410120M10 x 120 Ø1040110G503008423533579713
MIA410130M10 x 130 Ø1050110H501008423533938503
MIA410150M10 x 150 Ø1070110I502008423533579720
MIA410170M10 x 170 Ø1090110K502008423533938510
MIA412075 M12 x 75 Ø125100C503008423533579737
MIA412090M12 x 90 Ø1213100D502008423533579744
MIA412100M12 x 100 Ø128130E502008423533938534
MIA412110M12 x 110 Ø1218130F502008423533087812
MIA412120M12 x 120 Ø1228130G502008423533938527
MIA412140M12 x 140 Ø1248130I502008423533579751
MIA412160M12 x 160 Ø1268130J501008423533938541
MIA412180M12 x 180 Ø1288130L501508423533938558
MIA412200M12 x 200 Ø12108130M501008423533938565
MIA416090 M16 x 90 Ø164100E251508423533579768
MIA416110 M16 x 110 Ø165134F251008423533938572
MIA416125M16 x 125 Ø163168G251008423533938589
MIA416145M16 x 145 Ø1623168I251008423533579775
MIA416170M16 x 170 Ø1648168K25758423533579782
MIA416180M16 x 180 Ø1658168I25758423533938596
MIA420120 M20 x 120 Ø205145G20408423533579799
MIA420170M20 x 170 Ø2023206K20408423533579805
MIA420220M20 x 220 Ø2073206O20408423533579812
