ISO 7380

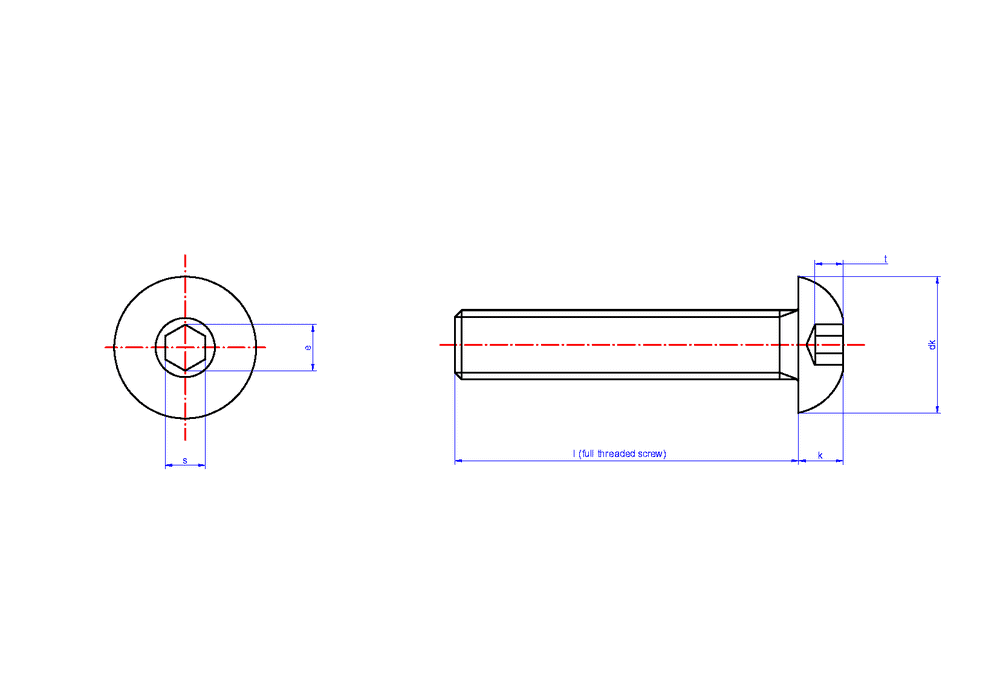

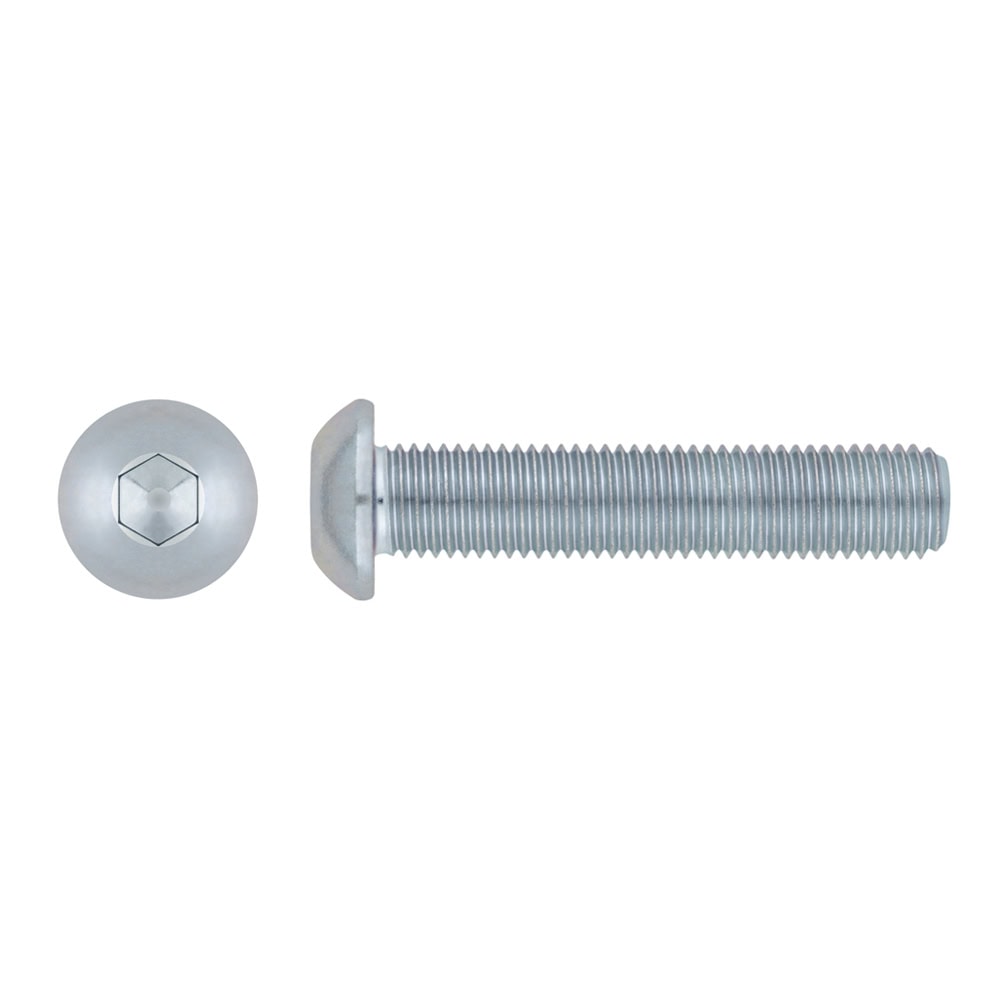

Parafuso DIN-7380 / ISO 7380

Parafuso DIN-7380 ou ISO 7380, com cabeça redonda, chave Allen e rosca métrica completa. Pode ser usado para garantir uma fixação robusta na união de peças ou na montagem de chapas. É feito de aço com revestimento zincado de qualidade 10.9.
Variantes do produto
CódigoMedidaNº FENDAUds. CaixaUds. MasterboxEANInfo. Técnica
T738003012M3 x 1221.00030.0008423533916587
T738003016M3 x 1621.00024.0008423533916594
T738003020M3 x 2021.00024.0008423533916600
T738004008M4 x 82.550022.5008423533916617
T738004010M4 x 102.550022.5008423533916624
T738004016M4 x 162.550012.0008423533916648
T738004020M4 x 202.550012.0008423533916655
T738004025M4 x 252.55008.0008423533916662
T738004030M4 x 302.55006.0008423533916679
T738004040M4 x 402.52506.0008423533916686
T738005010M5 x 1035008.0008423533916693
T738005012M5 x 1232506.0008423533916709
T738005014M5 x 1432506.0008423533916716
T738005016M5 x 1632506.0008423533916723
T738005020M5 x 2032506.0008423533916730
T738005025M5 x 2532506.0008423533916747
T738005030M5 x 3032504.0008423533916754
T738005035M5 x 3532503.0008423533916761
T738005040M5 x 4032503.0008423533916778
T738005050M5 x 5032502.0008423533916785
T738006008M6 x 842507.5008423533916792
T738006010M6 x 1042506.0008423533916808
T738006012M6 x 1242506.0008423533916815
T738006016M6 x 1642506.0008423533916822
T738006020M6 x 2042504.0008423533916839
T738006025M6 x 2542503.0008423533916846
T738006030M6 x 3042503.0008423533916853
T738006035M6 x 3542503.0008423533916860
T738006040M6 x 4042503.0008423533916877
T738006045M6 x 4542502.0008423533916884
T738006050M6 x 5042501.5008423533916891
T738006060M6 x 6042501.5008423533916907
T738008010M8 x 1051003.0008423533916914
T738008012M8 x 1251002.4008423533916921
T738008016M8 x 161002.4008423533916938
T738008020M8 x 2051002.4008423533832016
T738008025M8 x 2551001.6008423533916945
T738008030M8 x 3051001.6008423533916952
T738008035M8 x 3551001.2008423533916969
T738008040M8 x 4051001.2008423533916976
T738008045M8 x 4551001.2008423533916983
T738008050M8 x 501001.2008423533921796
T738008060M8 x 601008008423533917003
T738010016M10 x 1661001.6008423533917010
T738010020M10 x 2061001.2008423533917027
T738010025M10 x 2561001.2008423533917034
T738010030M10 x 3061008008423533917041
T738010035M10 x 351008008423533917058
T738010040M10 x 4061008008423533917065
T738010045M10 x 4561006008423533917072
T738010050M10 x 5061006008423533917089
T738010060M10 x 601006008423533917096

Solicitar mais informações

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Read more

Mais produtos...

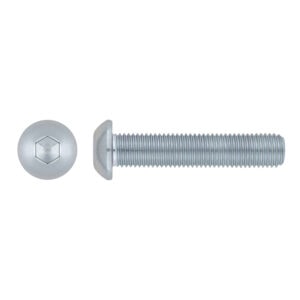

ISO 7380
