ISO 7380

DIN-7380 / ISO 7380 screw

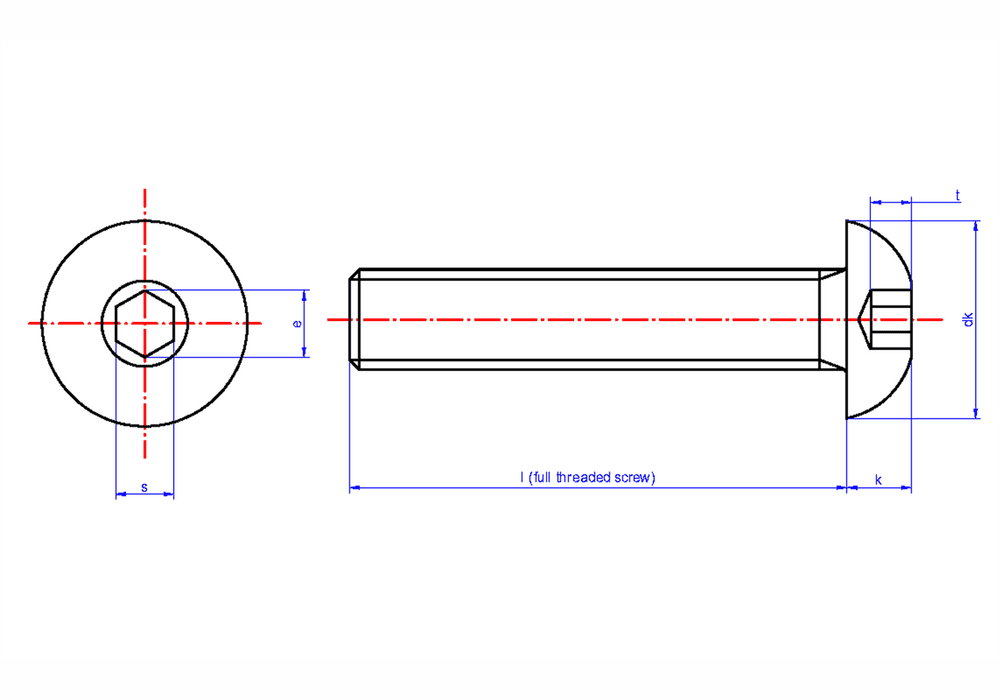

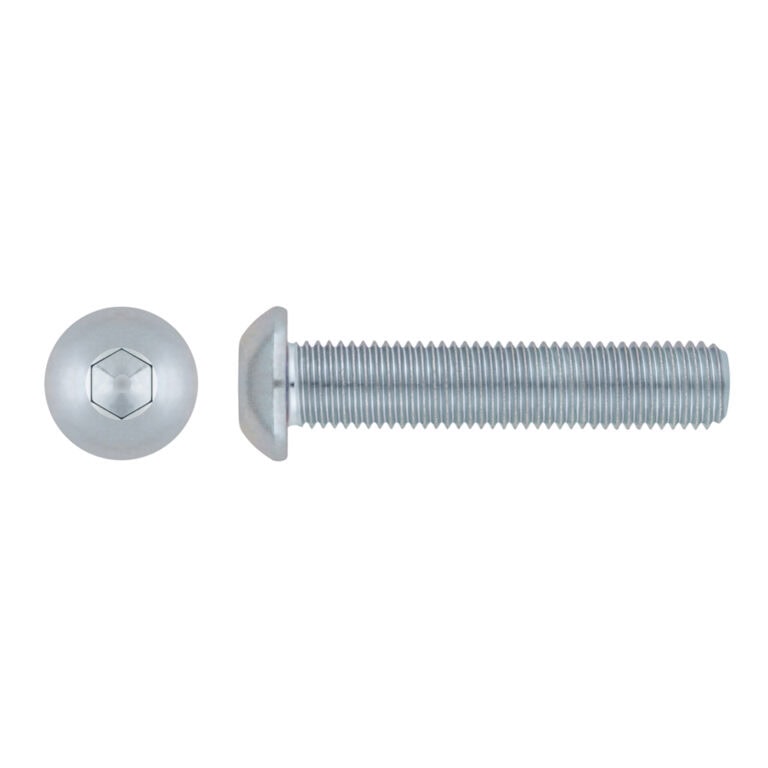

DIN-7380 or ISO 7380 screw with round head, Allen socket and full metric thread. It can be used to ensure a robust fastening when joining parts or assembling sheet metal. It is made of steel with a zinc coating, grade 10.9.
Product variants
CodeSizeNº RECESSPcs. BoxPcs. MasterboxEANTechnical info.
T738003012M3 x 1221.00030.0008423533916587
T738003016M3 x 1621.00024.0008423533916594
T738003020M3 x 2021.00024.0008423533916600
T738004008M4 x 82.550022.5008423533916617
T738004010M4 x 102.550022.5008423533916624
T738004016M4 x 162.550012.0008423533916648
T738004020M4 x 202.550012.0008423533916655
T738004025M4 x 252.55008.0008423533916662
T738004030M4 x 302.55006.0008423533916679
T738004040M4 x 402.52506.0008423533916686
T738005010M5 x 1035008.0008423533916693
T738005012M5 x 1232506.0008423533916709
T738005014M5 x 1432506.0008423533916716
T738005016M5 x 1632506.0008423533916723
T738005020M5 x 2032506.0008423533916730
T738005025M5 x 2532506.0008423533916747
T738005030M5 x 3032504.0008423533916754
T738005035M5 x 3532503.0008423533916761
T738005040M5 x 4032503.0008423533916778
T738005050M5 x 5032502.0008423533916785
T738006008M6 x 842507.5008423533916792
T738006010M6 x 1042506.0008423533916808
T738006012M6 x 1242506.0008423533916815
T738006016M6 x 1642506.0008423533916822
T738006020M6 x 2042504.0008423533916839
T738006025M6 x 2542503.0008423533916846
T738006030M6 x 3042503.0008423533916853
T738006035M6 x 3542503.0008423533916860
T738006040M6 x 4042503.0008423533916877
T738006045M6 x 4542502.0008423533916884
T738006050M6 x 5042501.5008423533916891
T738006060M6 x 6042501.5008423533916907
T738008010M8 x 1051003.0008423533916914
T738008012M8 x 1251002.4008423533916921
T738008016M8 x 161002.4008423533916938
T738008020M8 x 2051002.4008423533832016
T738008025M8 x 2551001.6008423533916945
T738008030M8 x 3051001.6008423533916952
T738008035M8 x 3551001.2008423533916969
T738008040M8 x 4051001.2008423533916976
T738008045M8 x 4551001.2008423533916983
T738008050M8 x 501001.2008423533921796
T738008060M8 x 601008008423533917003
T738010016M10 x 1661001.6008423533917010
T738010020M10 x 2061001.2008423533917027
T738010025M10 x 2561001.2008423533917034
T738010030M10 x 3061008008423533917041
T738010035M10 x 351008008423533917058
T738010040M10 x 4061008008423533917065
T738010045M10 x 4561006008423533917072
T738010050M10 x 5061006008423533917089
T738010060M10 x 601006008423533917096
