Produtos / Sistemas de Instalação / Abraçadeiras metálicas leves / AB-GS / AB-GS
AB-GS
AB-GS
AB-GS

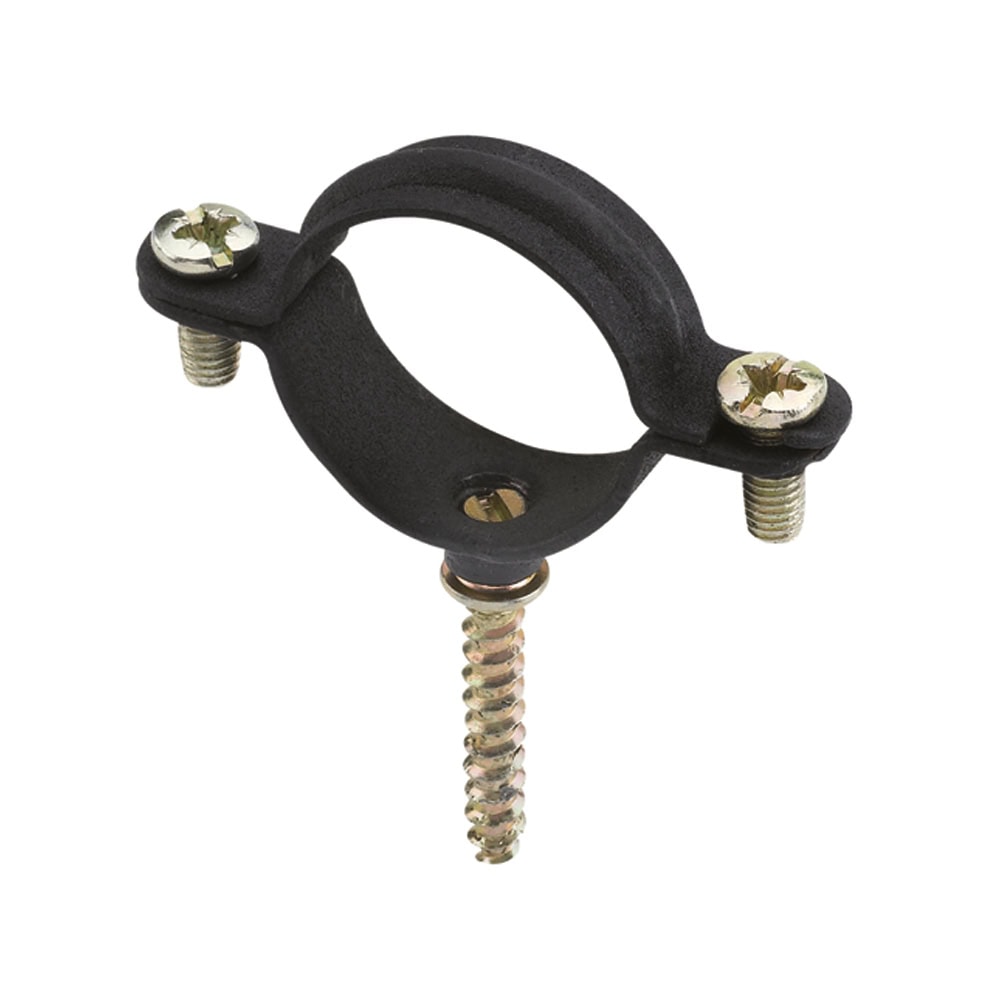

Abraçadeira gasmática preta M6 AB-GS

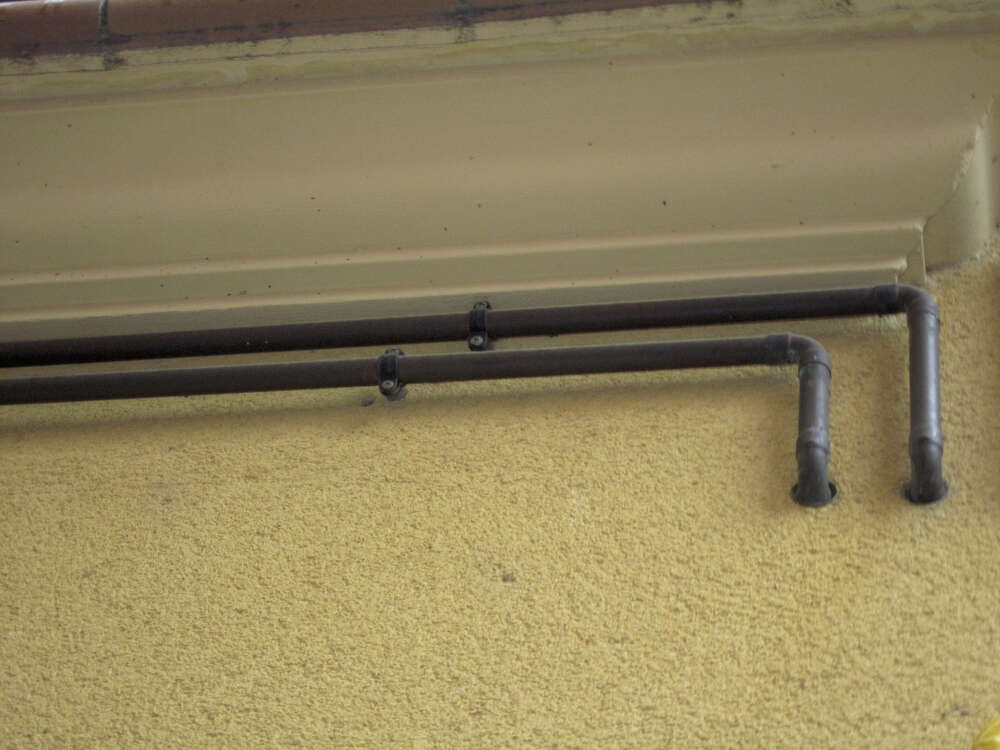

Abraçadeira gasmática para tubos entre Ø10 e Ø54 mm (conforme o modelo), especialmente indicada para instalações de gás. Pode ser utilizada para fixar tubos de aço, cobre ou PVC. Possui abertura lateral rápida, o que permite agilizar a montagem dos tubos. Incorpora uma porca embutida M6 e um parafuso de fixação pré-montado para instalação em diferentes tipos de superfícies. É fabricada em aço pintado de preto para permitir uma rápida identificação da instalação.

Aprovações e certificados

+ info
  • EN ISO 4892-1
Variantes do produto

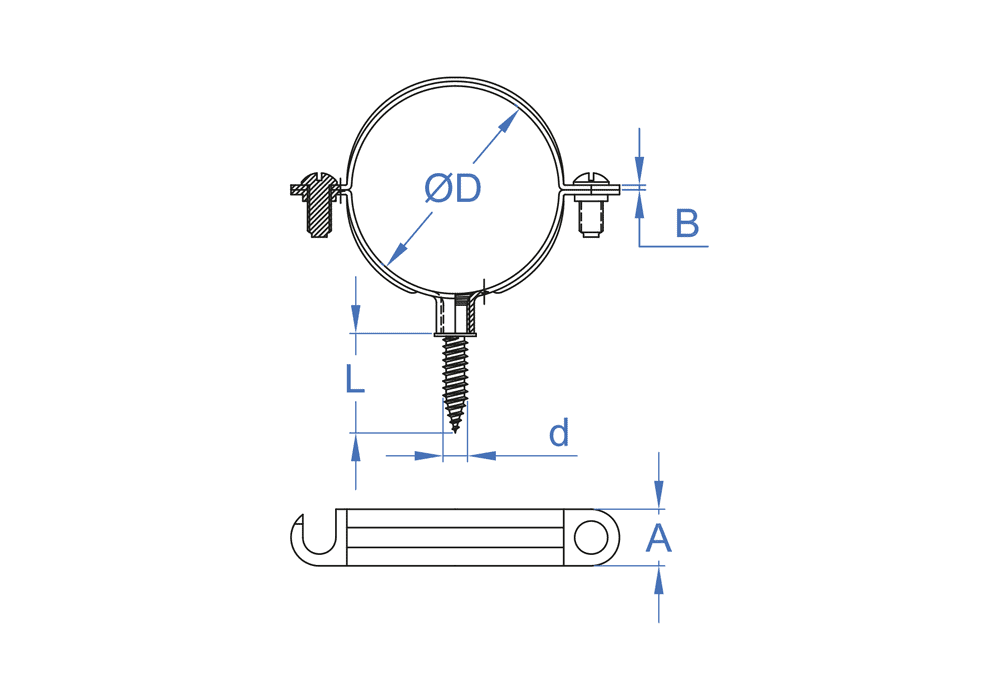

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABGS01010 (M6)10701006008423533737700
ABGS01212 (M6)12701006008423533737717
ABGS01515 (M6)15701006008423533737724
ABGS01818 (M6)18701006008423533737731
ABGS02222 (M6)2270502008423533737748
ABGS02828 (M6)2870502008423533737755
ABGS03535 (M6)3570502008423533737762
ABGS04242 (M6)4270251008423533737779
ABGS05454 (M6)5470251008423533737786
