Produtos / Sistemas de Instalação / Abraçadeiras metálicas leves / AB-GM / AB-GM
AB-GM
AB-GM

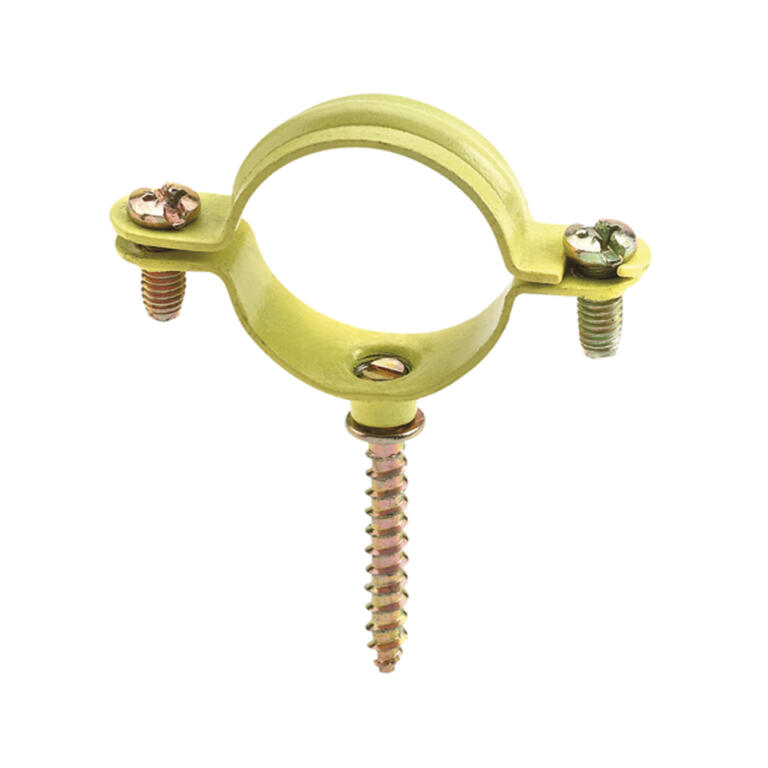

Abraçadeira gasmática amarela M6 AB-GM

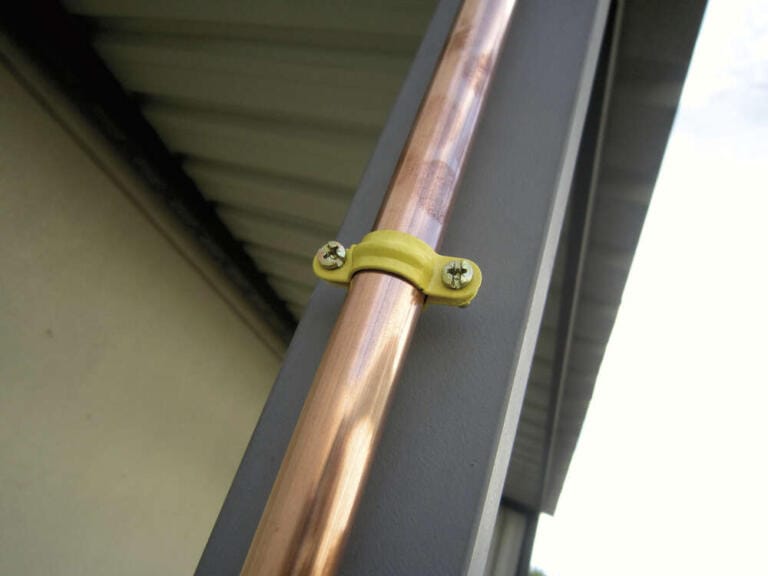

Abraçadeira para gás, concebida para a fixação de tubos metálicos e plásticos com diâmetros entre Ø12 e Ø35 mm (dependendo do modelo). É especialmente indicada para instalações de gás. Possui abertura lateral rápida, o que permite agilizar a montagem dos tubos. Incorpora uma porca embutida M6 e um parafuso pré-montado para instalação em diferentes tipos de superfícies. É fabricada em aço pintado de amarelo, o que permite uma rápida identificação da instalação de gás.

Aprovações e certificados

+ info
  • EN ISO 4892-1
Variantes do produto

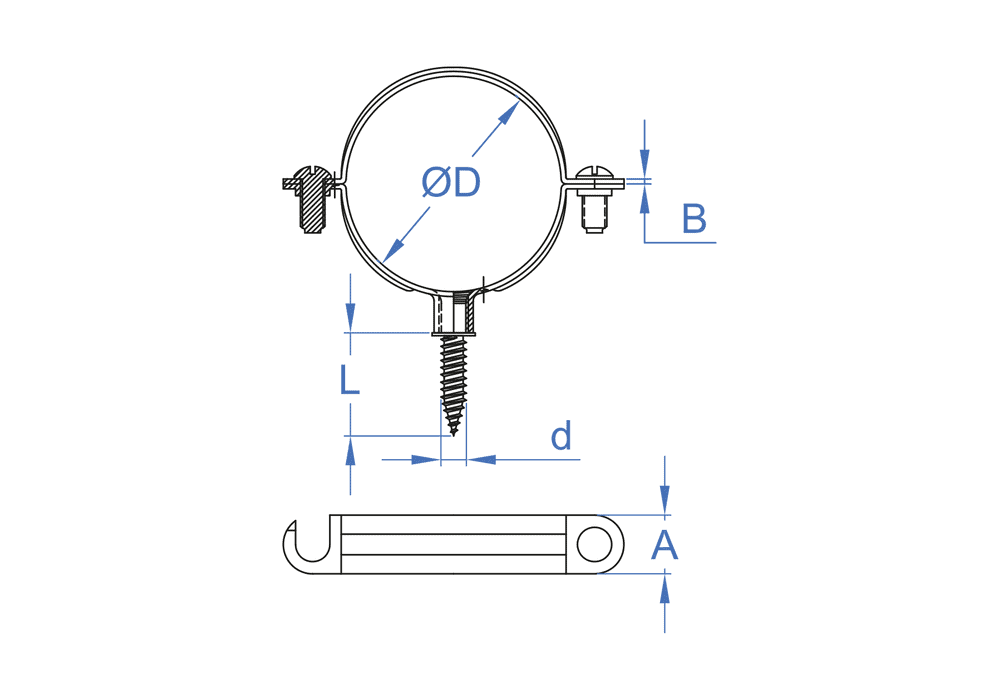

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABGM01212 (M6)12701006008423533737847
ABGM01515 (M6)15701006008423533737854
ABGM01818 (M6)18701006008423533737861
ABGM02222 (M6)2270502008423533737878
ABGM02828 (M6)2870502008423533737885
ABGM03535 (M6)3570502008423533737892
