Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-IA / AB-IA
AB-IA
AB-IA
AB-IA
AB-IA

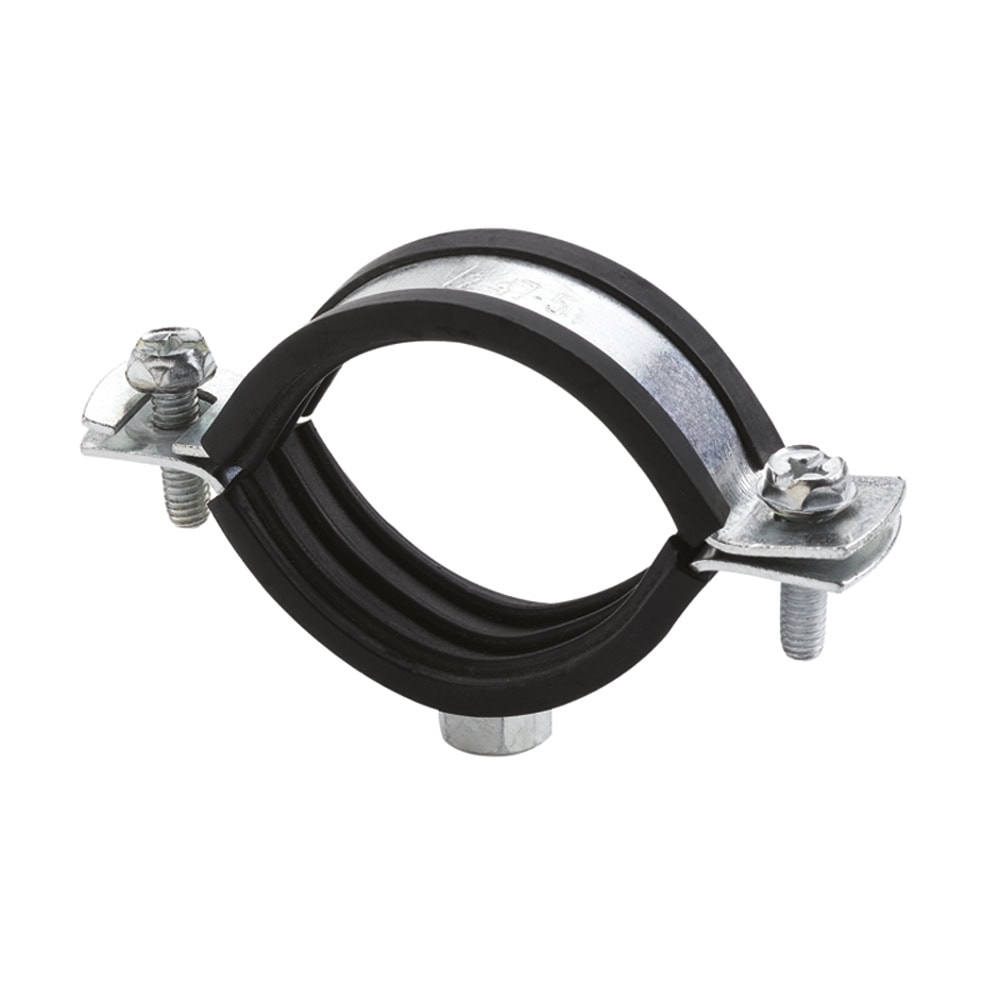

Abraçadeira isofónica M8 AB-IA

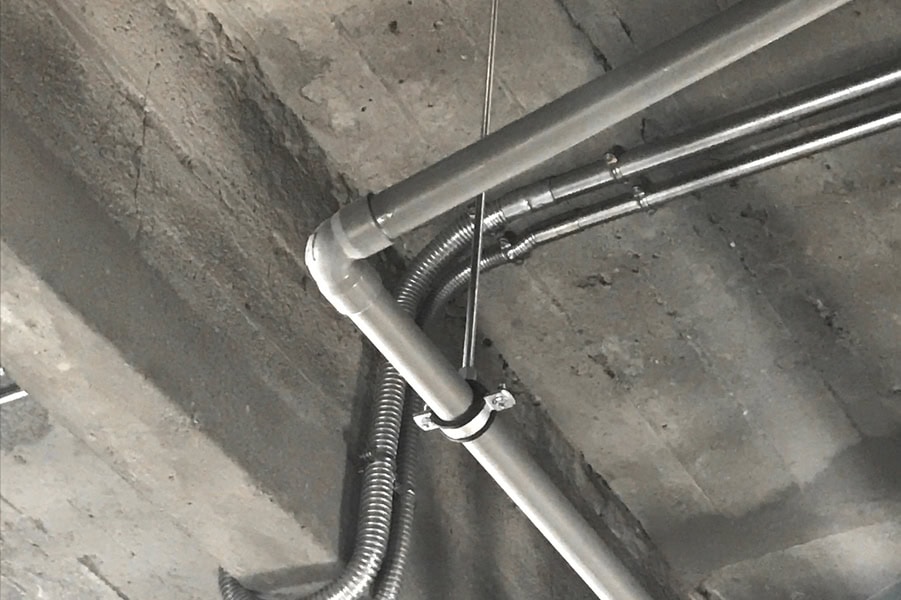

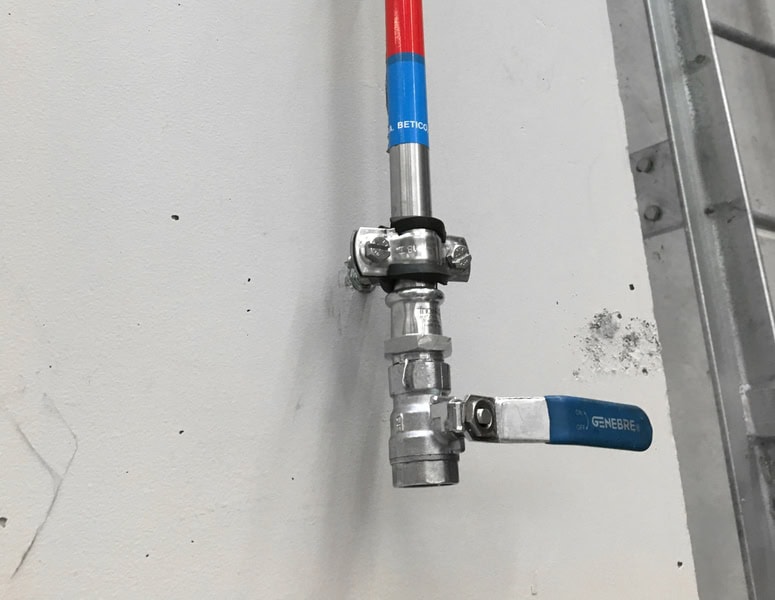

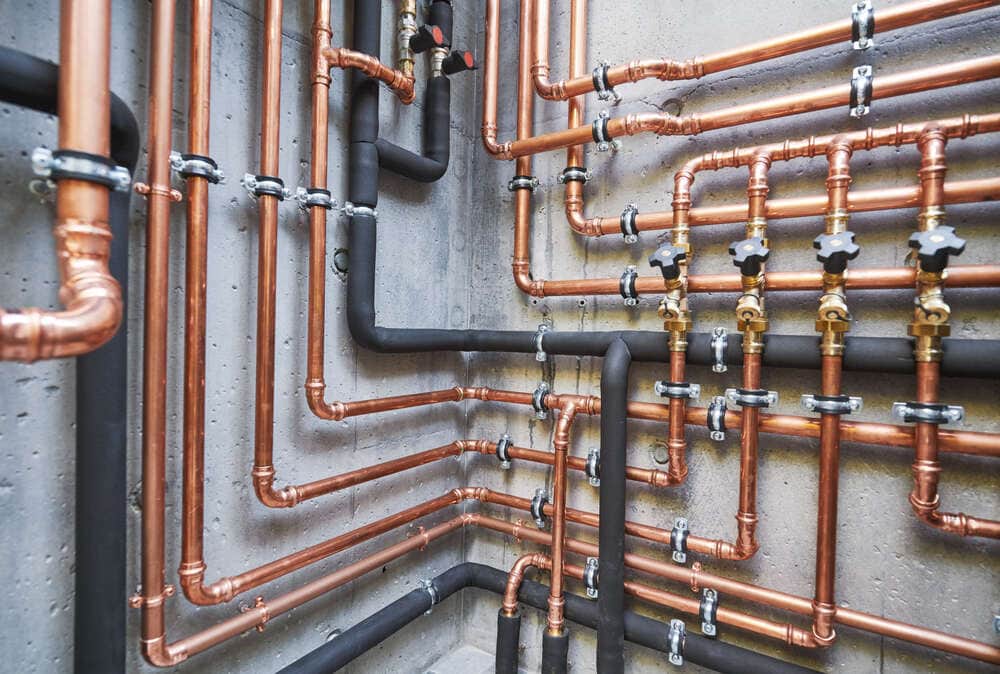

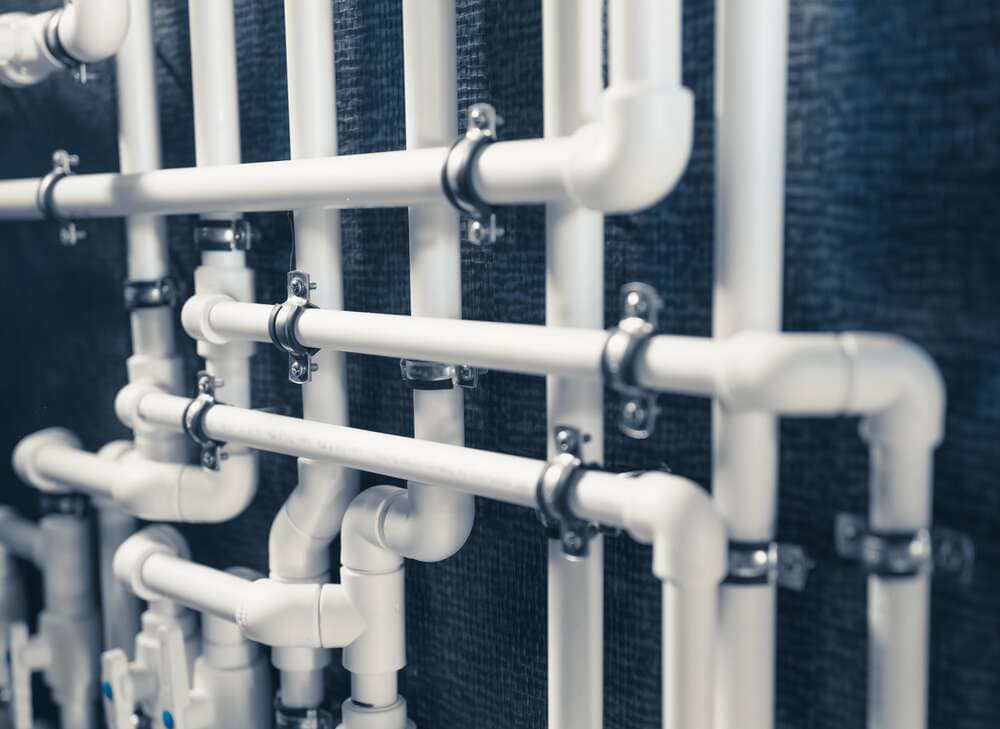

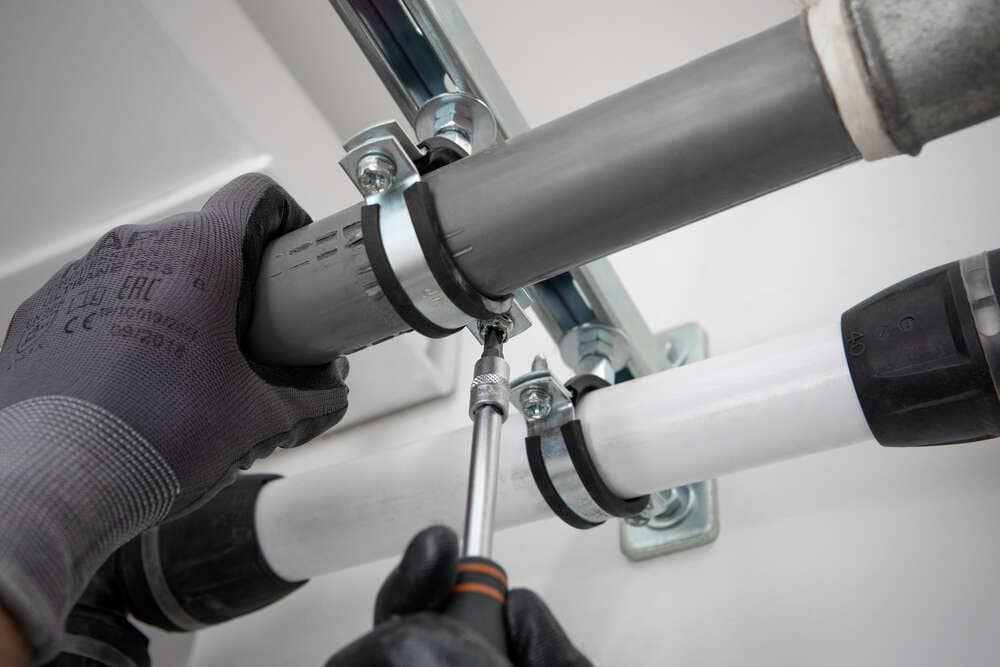

Abraçadeira isofónica reforçada. Permite fixar tubos metálicos ou plásticos pesados em diferentes tipos de instalações. Incorpora uma porca soldada M8 e uma borracha isolante de EPDM, que reduz o ruído e as vibrações. Cumpre o Código Técnico da Construção e a norma DIN-4109 de isolamento acústico. A sua abertura lateral rápida permite uma montagem ágil e simples dos tubos. É fabricada em aço zincado.
Variantes do produto

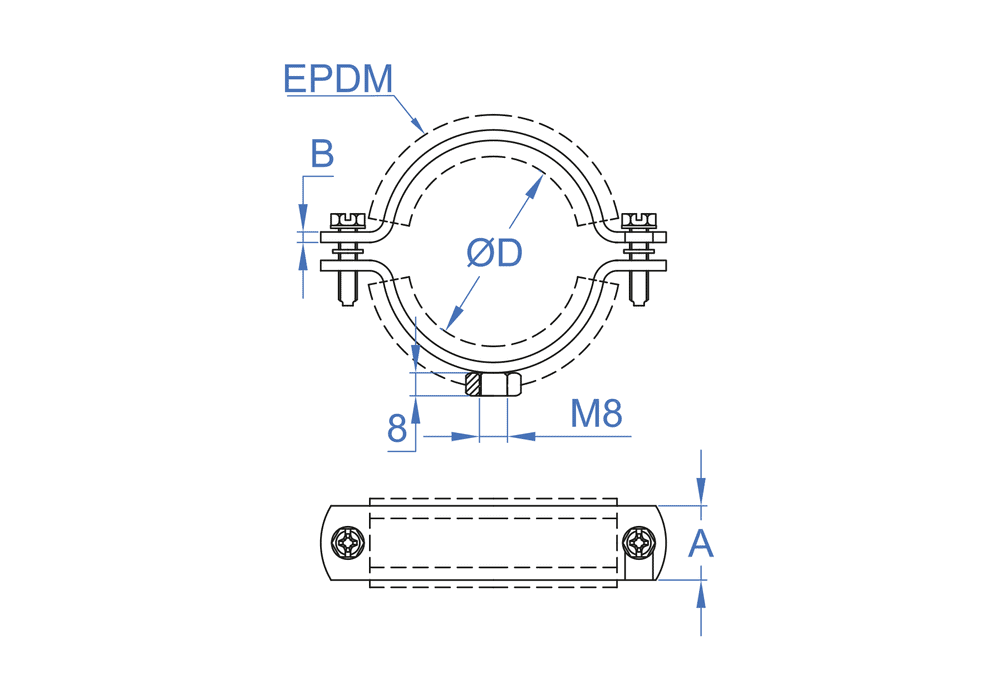

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABIA01515 (M8)12-1680502008423533737045
ABIA01818 (M8)15 - 1980502008423533737052
ABIA02222 (M8)20 - 2580501508423533737069
ABIA02828 (M8)26 - 3080501008423533737076
ABIA03535 (M8)32 - 3680501008423533737083
ABIA04242 (M8)38 - 43805008423533737090
ABIA04848 (M8)47 - 51805008423533737106
ABIA05454 (M8)53 - 588025508423533737113
ABIA06060 (M8)60 - 648025508423533737120
ABIA07575 (M8)75 - 808025508423533737137
ABIA09090 (M8)87 - 928025508423533043580
ABIA100100 (M8)99 - 1058025508423533043634
ABIA110110 (M8)107 - 112802508423533043641
ABIA115115 (M8)113 - 118802508423533043658
ABIA125125 (M8)125 - 130802508423533043665
