Produtos / Ancoragens / Fixações metálicas / ANFA / AN-23
AN-23
AN-23
AN-23

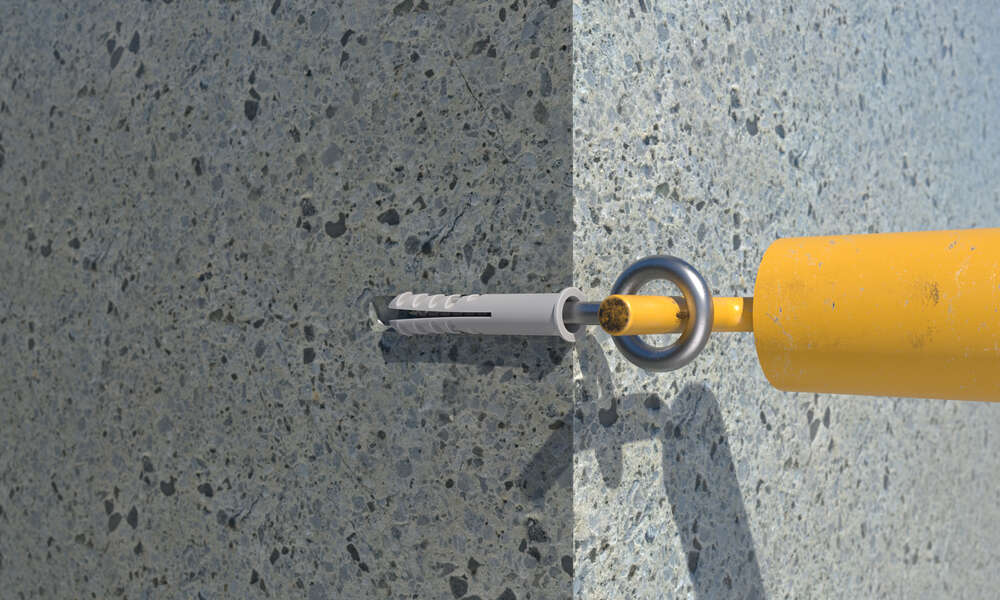

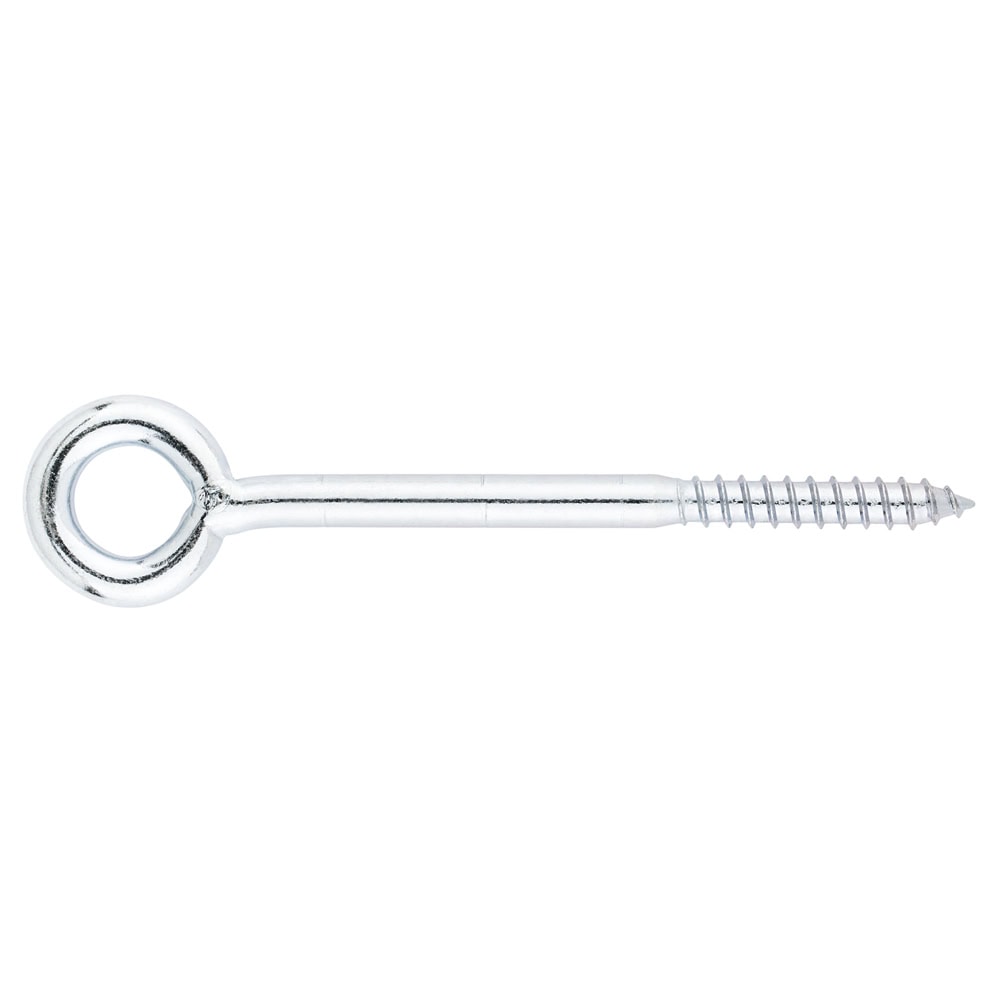

Bucha para andaimes com olhal AN-23

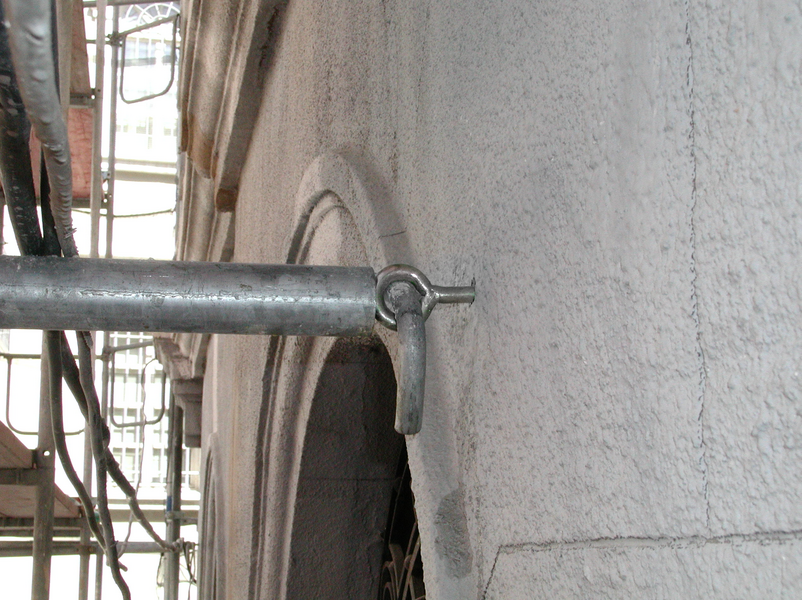

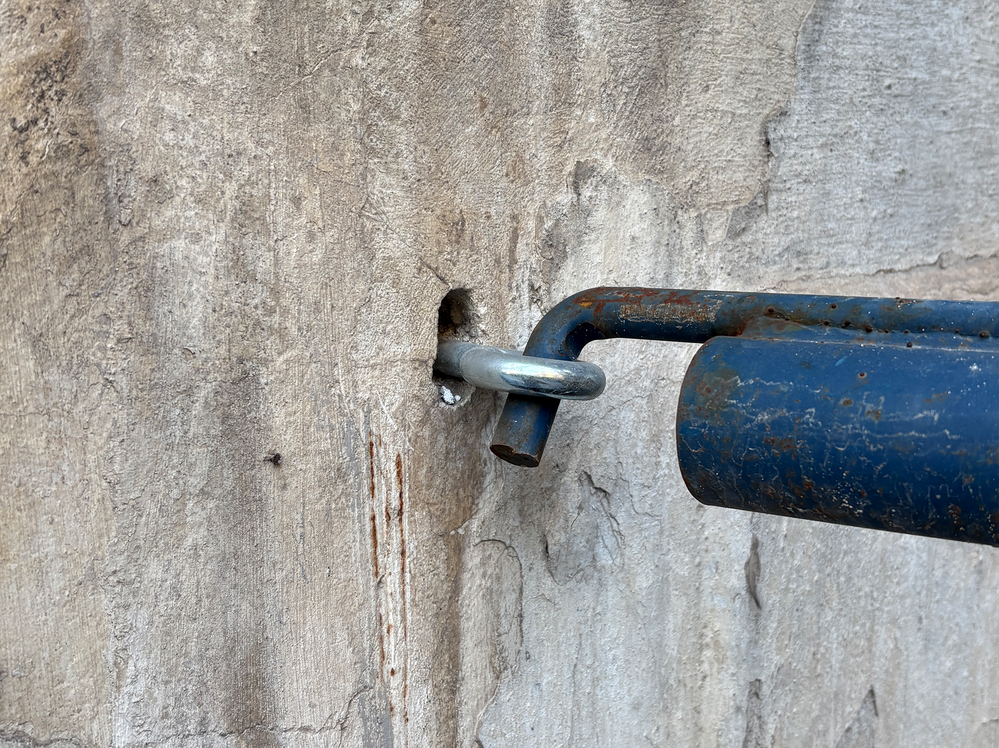

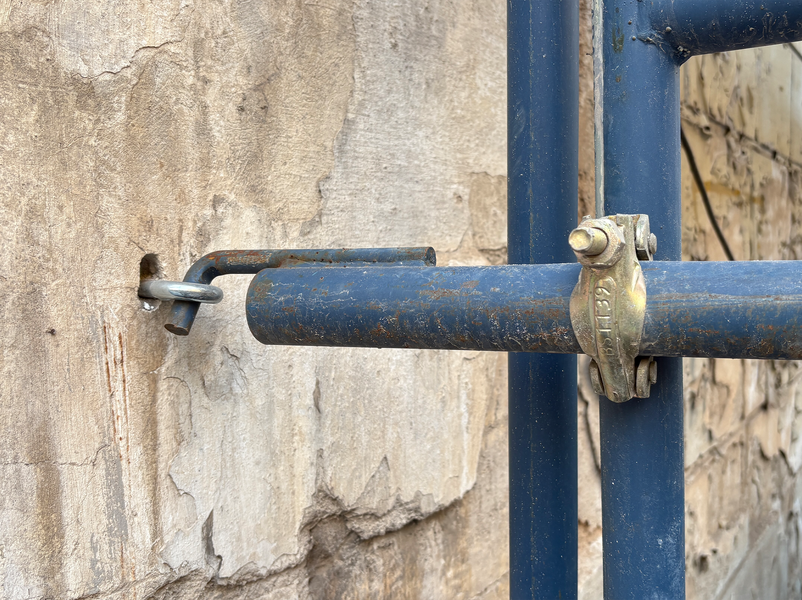

Bucha com parafuso com olhal soldado de 23 mm para fixação de andaimes ou outros elementos em fachadas ou pavimentos. Adequado para utilização com cargas médias a ligeiras em materiais sólidos e ocos. Revestimento zincado.
Variantes do produto

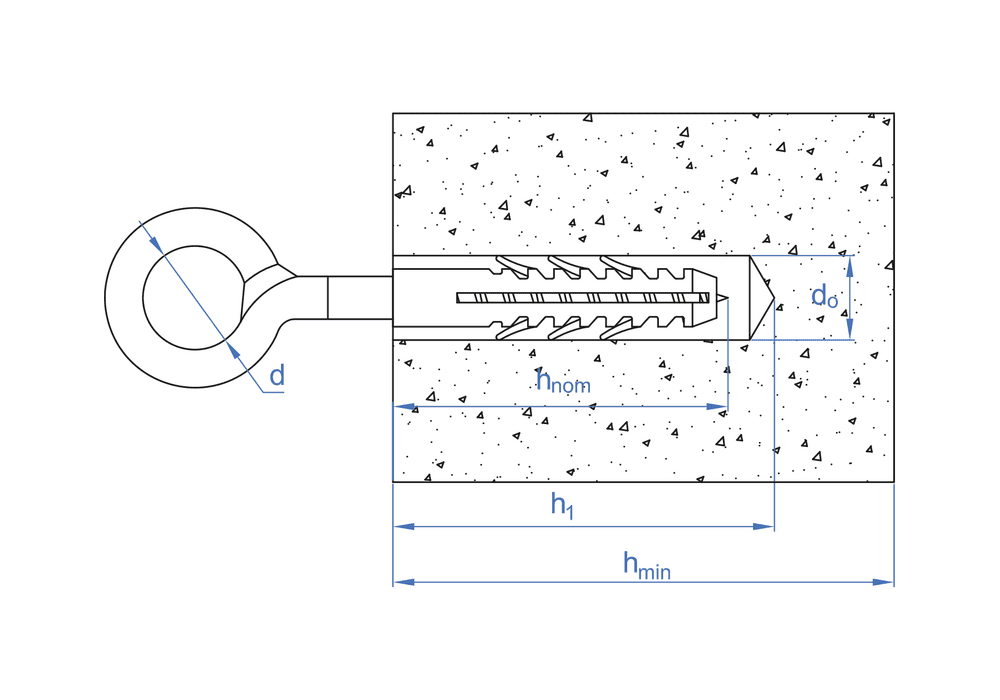

CódigoMedidaPROFUNDIDADE MIN. DO FURO [mm]PROFUNDIDADE MIN.DE INSTALAÇÃO [mm]Ø OLHALUds. CaixaUds. MasterboxEANInfo. Técnica
ANFA230912 x 90 Ø14-Ø161009023201208423533790682
ANFA231212 x 120 Ø14-Ø161301202320808423533028112
ANFA231612 x 160 Ø14-Ø161701602320608423533439673
ANFA231912 x 190 Ø14-Ø162001902320608423533790699
ANFA232312 x 230 Ø14-Ø162402302320408423533790705
ANFA233012 x 300 Ø14-Ø163103002310208423533790712
ANFA233512 x 350 Ø14-Ø16360350231008423533790729
