Produkte / Verankerungen / Metallanker / ANFA / Produkte / AN-23
AN-23
AN-23
AN-23

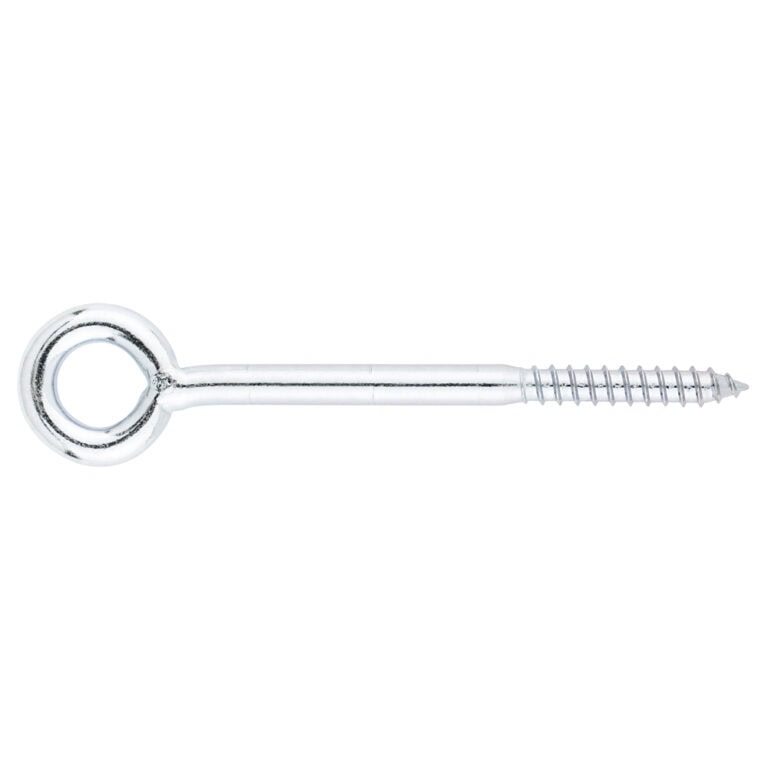

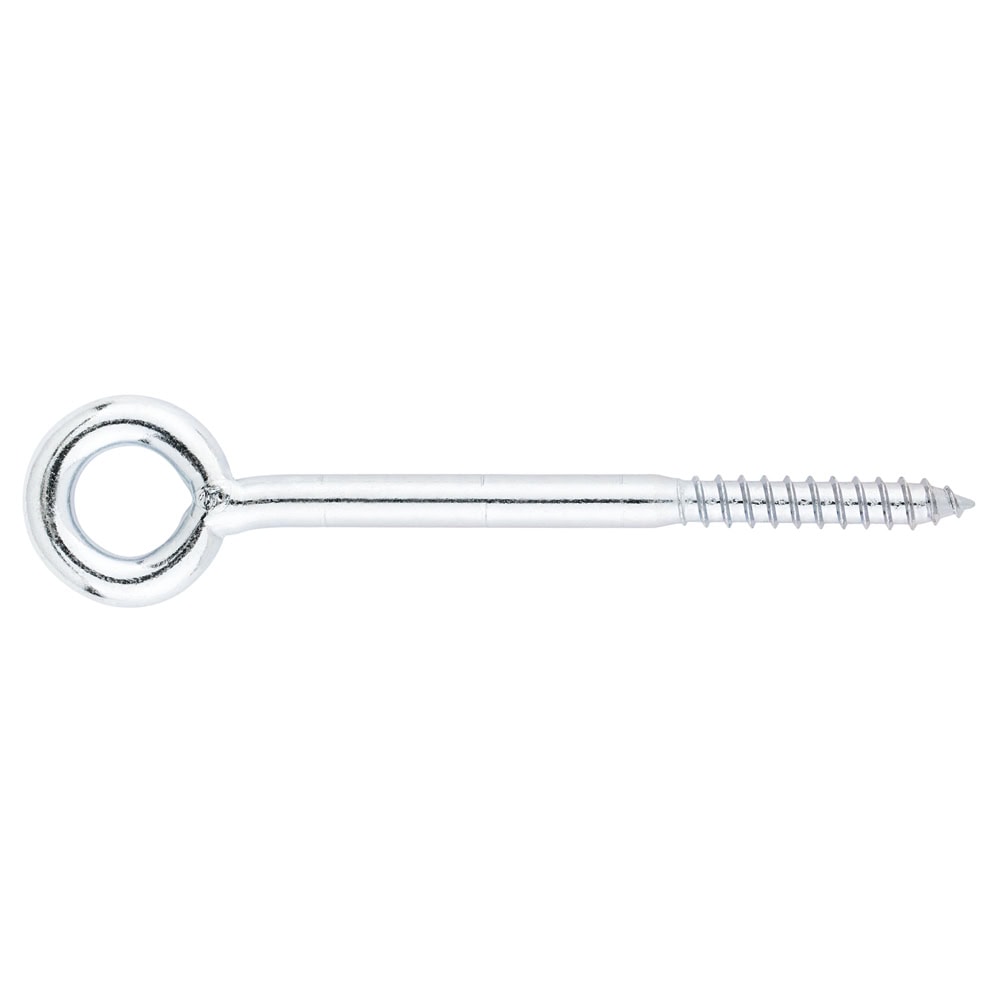

Anker für Gerüst- mit lasten AN-23

Anker mit 23 mm geschweißter Ringschraube zur Befestigung von Gerüsten oder anderen Elementen an Fassaden oder Böden. Geeignet für den Einsatz bei mittleren bis leichten Lasten in Voll- und Hohlbaustoffen. Verzinkte Beschichtung.
Produktvarianten

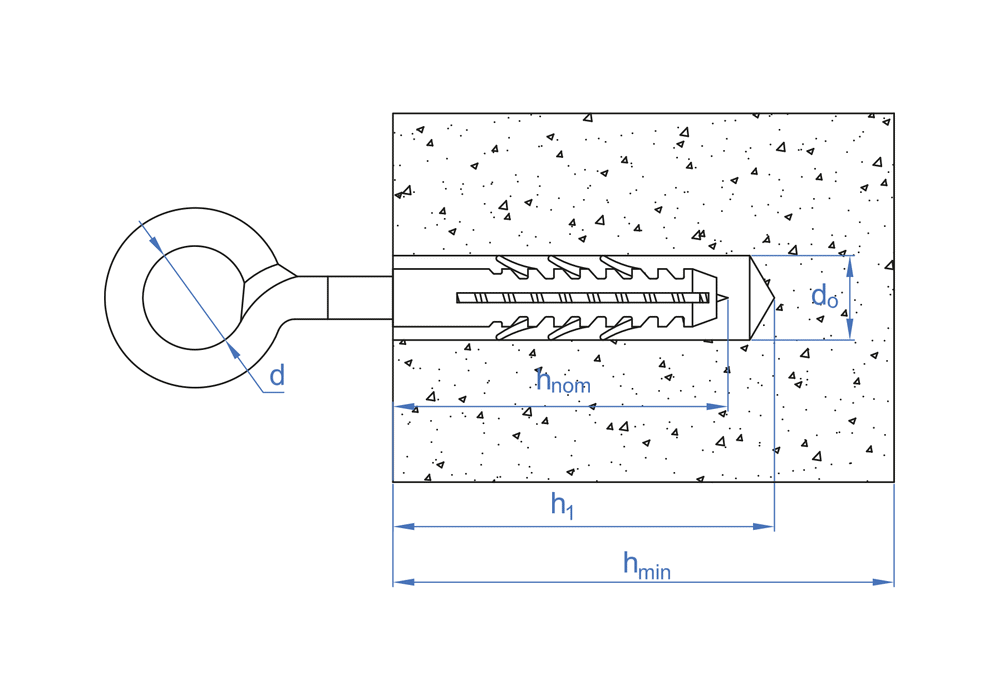

CodeAbmessungMIN. BOHRLOCHTIEFE [mm]SETZTIEFE [mm]Ø ÖSEStk. VerpackungStk. UmverpackungEANTechnische Info.
ANFA230912 x 90 Ø14-Ø161009023201208423533790682
ANFA231212 x 120 Ø14-Ø161301202320808423533028112
ANFA231612 x 160 Ø14-Ø161701602320608423533439673
ANFA231912 x 190 Ø14-Ø162001902320608423533790699
ANFA232312 x 230 Ø14-Ø162402302320408423533790705
ANFA233012 x 300 Ø14-Ø163103002310208423533790712
ANFA233512 x 350 Ø14-Ø16360350231008423533790729
