Produtos / Sistemas de Instalação / Sistemas de instalação e fixações para painéis solares / ISF-TR / TPA-R
TPA-R
TPA-R
TPA-R

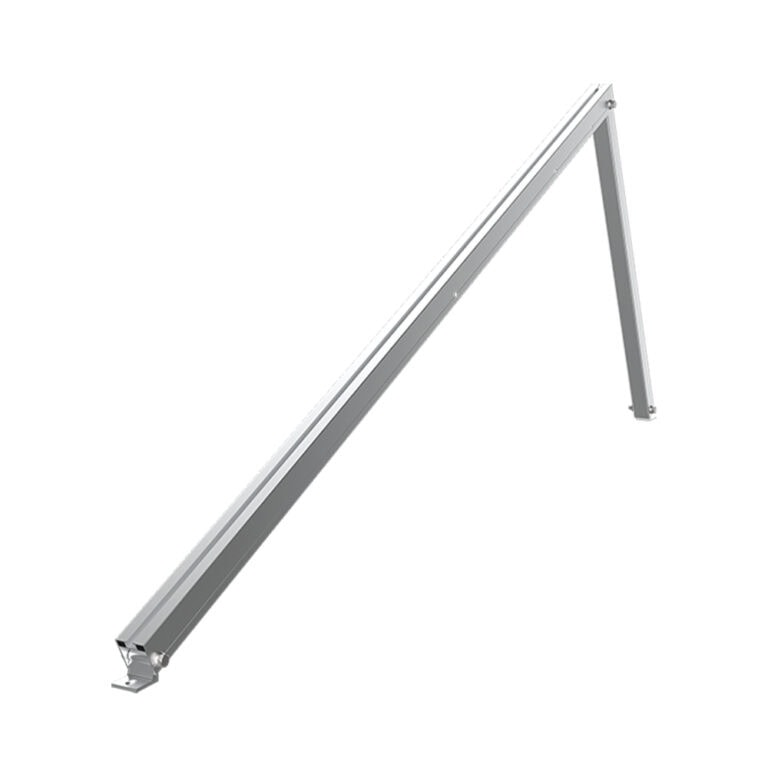

Triângulo ajustável para painéis solares TPA-R

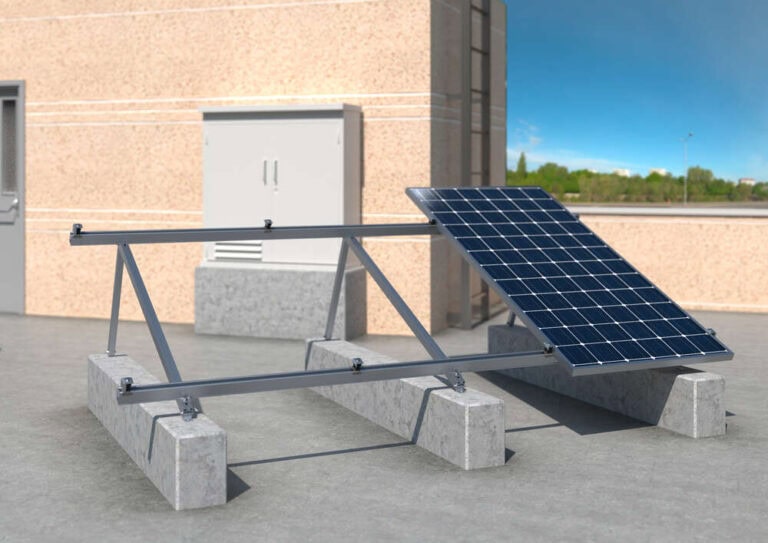

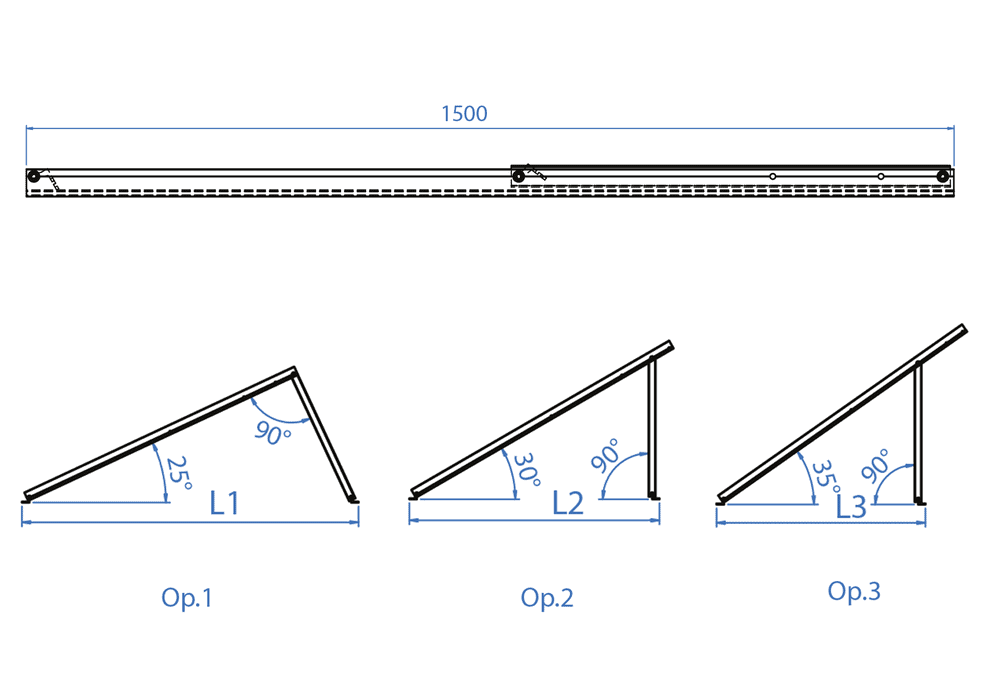

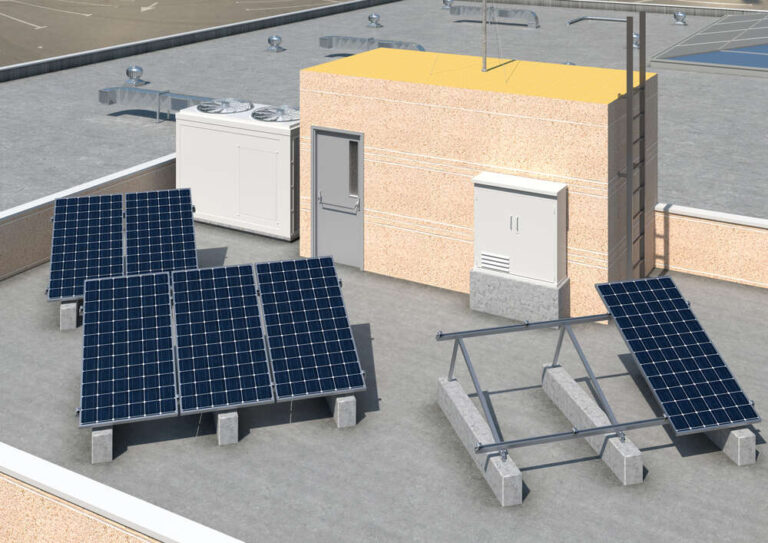

Triângulo ajustável para a montagem de painéis solares em telhados. Pode ser utilizado em conjunto com os perfis PSE-A e PSE-C para a instalação de painéis em formato contínuo. É fornecido pré-montado e é composto por um perfil principal, um perfil de perna e dois perfis de fixação. Inclui porcas DIN-6923 e parafusos DIN-6921. Os painéis podem ser instalados num ângulo de 25º, 30º e 35º. Os perfis são de alumínio e as porcas e parafusos são de aço inoxidável A2.
Amplie as informações
Variantes do produto
CódigoMedidaUds. CaixaEANInfo. Técnica
TPAR25150025º/30º/35º - L.1500 mm48423533861887
