Produtos / Sistemas de Instalação / Sistemas de instalação e fixações para painéis solares / ISF-KFS / KC-PSA
KC-PSA
KC-PSA
KC-PSA
KC-PSA
KC-PSA

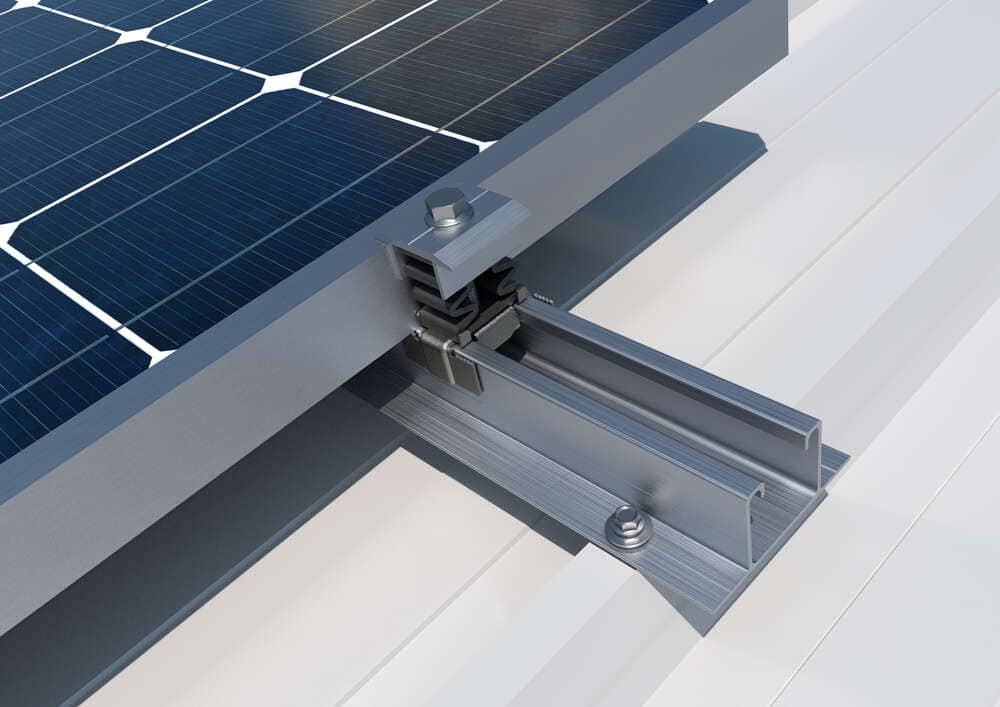

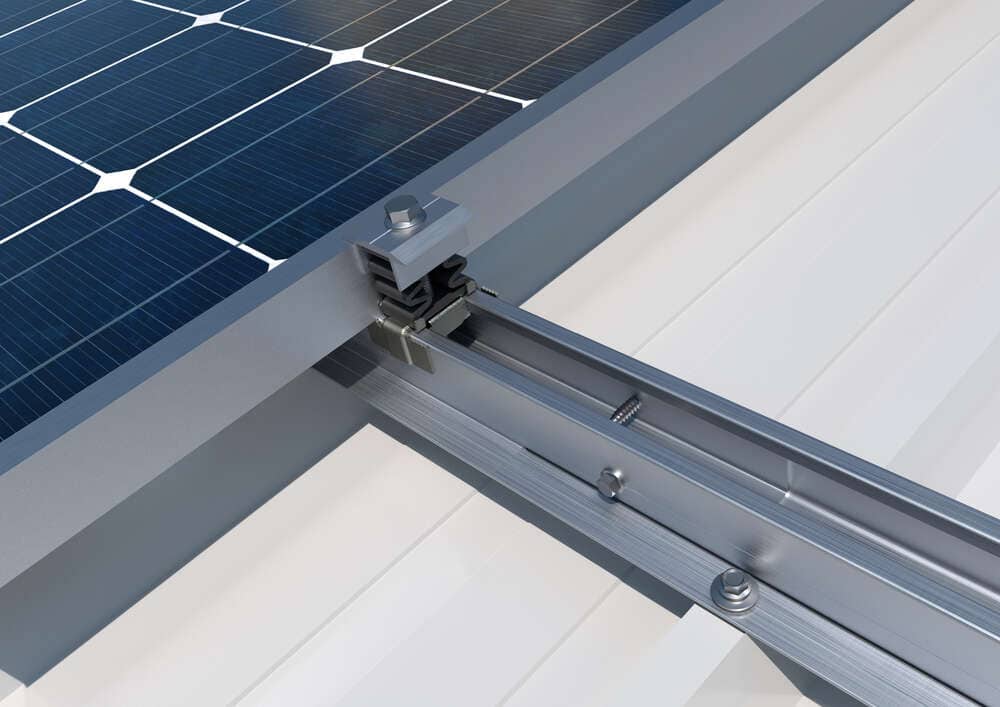

Estrutura de fixação direta coplanar KC-PSA

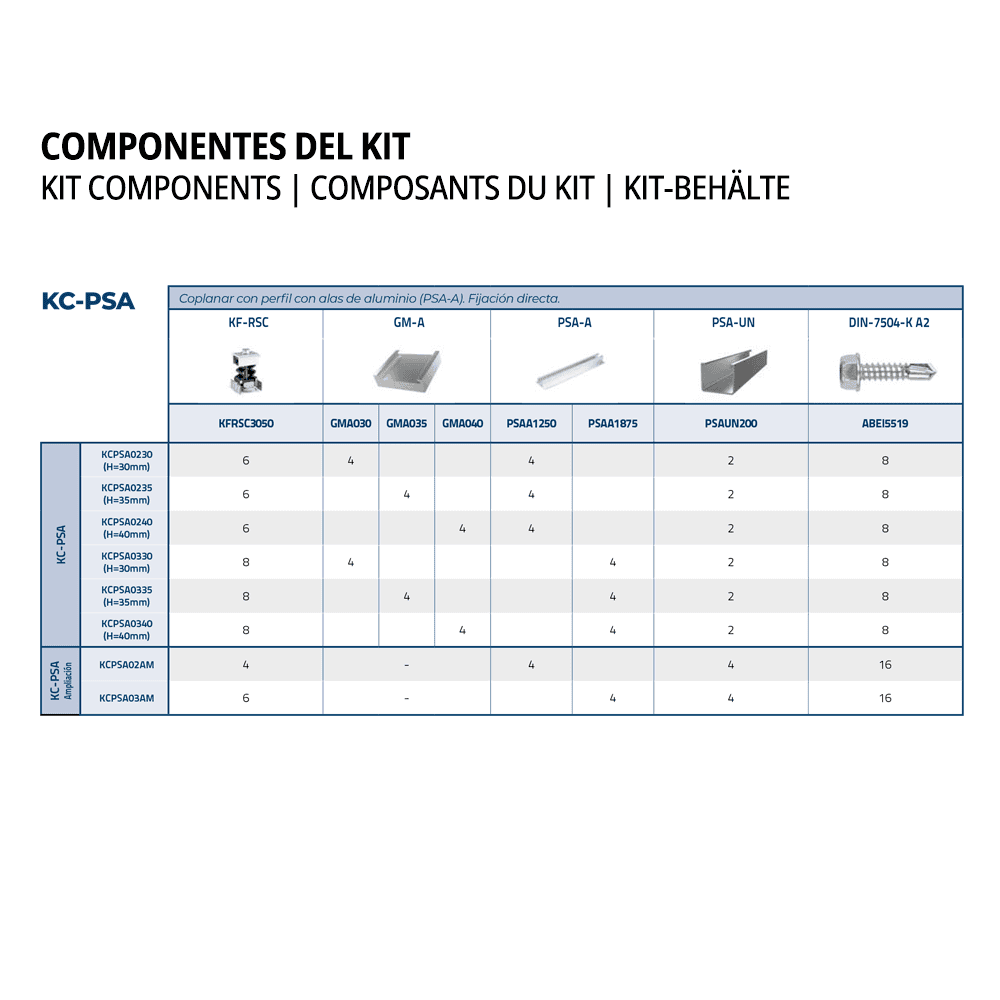

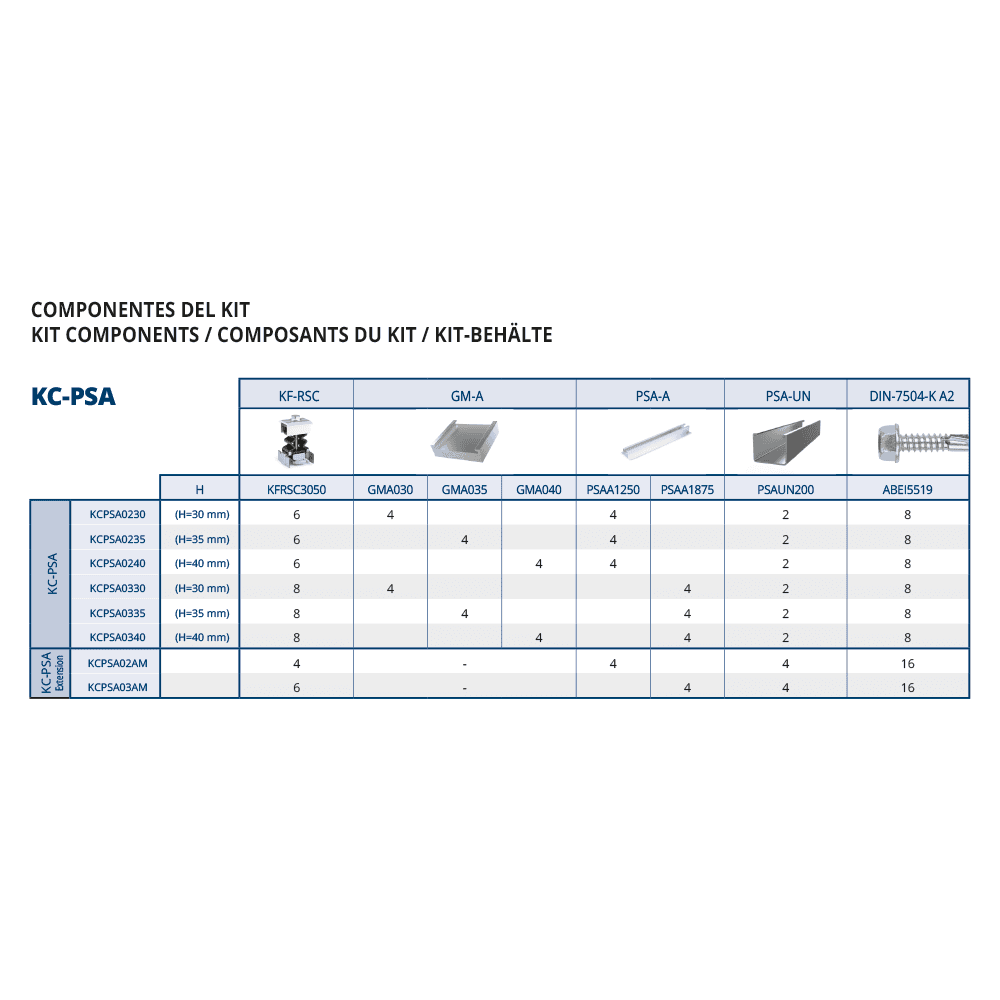

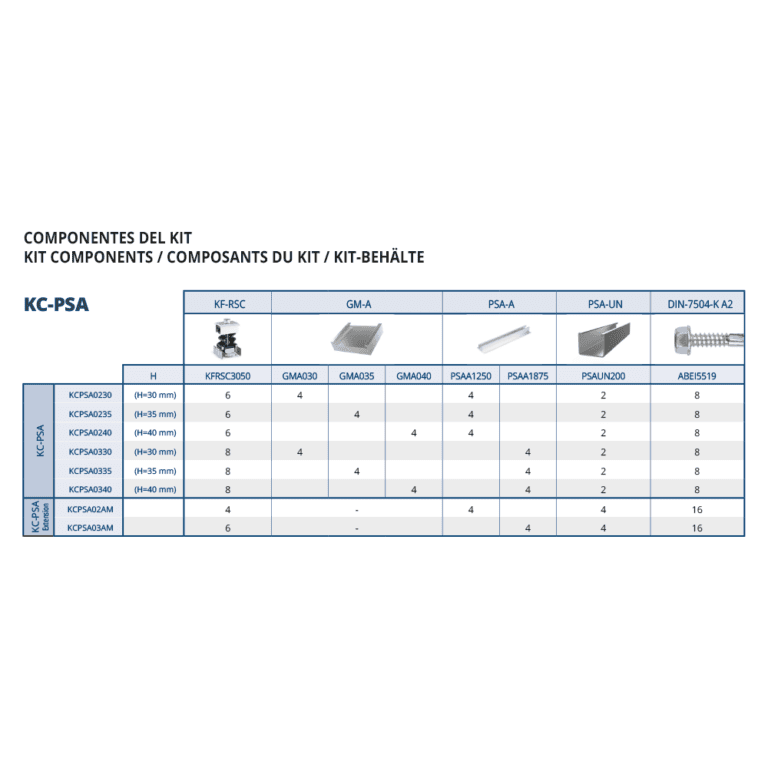

Kit de montagem para a instalação de uma estrutura coplanar para painéis solares. Permite a fixação dos painéis sobre as ondulações das coberturas metálicas inclinadas. Foi concebido de acordo com o sistema de montagem coplanar SC-PSA. Inclui perfis de alumínio PSA-A para montagem contínua; peças de ligação PSA-UN para os perfis com parafusos DIN-7504-K A2; Abraçadeiras de fixação rápida KFR-SC e calibradores GM-A. Estão disponíveis vários modelos, com a possibilidade de instalar 2 ou 3 painéis.
Amplie as informações

Aprovações e certificados

+ info
  • CE 2024
Variantes do produto
CódigoNº MódulosC Placa [mm]Uds. CaixaEANInfo. Técnica
KCPSA023023018423533902481
KCPSA023523518423533880925
KCPSA024024018423533880932
KCPSA02AM2018423533902498
KCPSA033033018423533902504
KCPSA033533518423533880949
KCPSA034034018423533880956
KCPSA03AM3018423533902511
