Produtos / Sistemas de Instalação / Sistemas de proteção contra incêndios / AB-PE / AB-PE
AB-PE
AB-PE
AB-PE
AB-PE

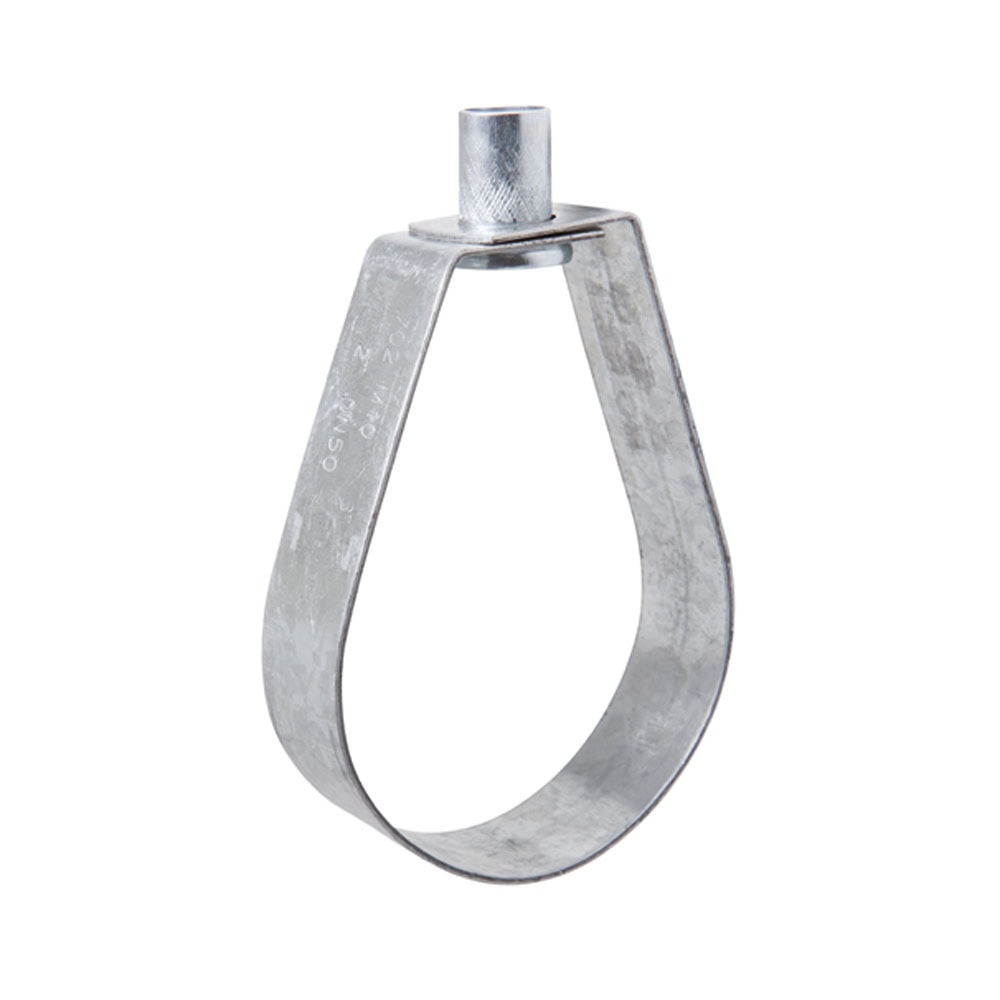

Abraçadeira pêra AB-PE

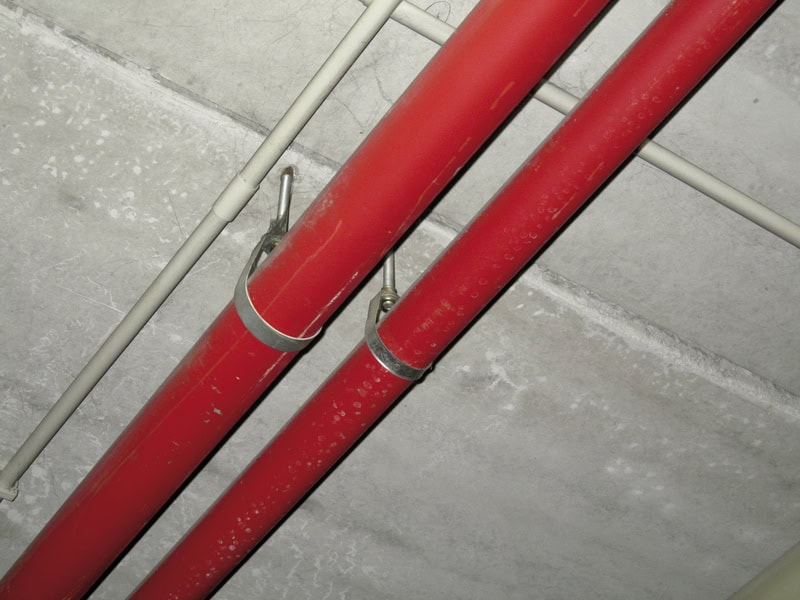

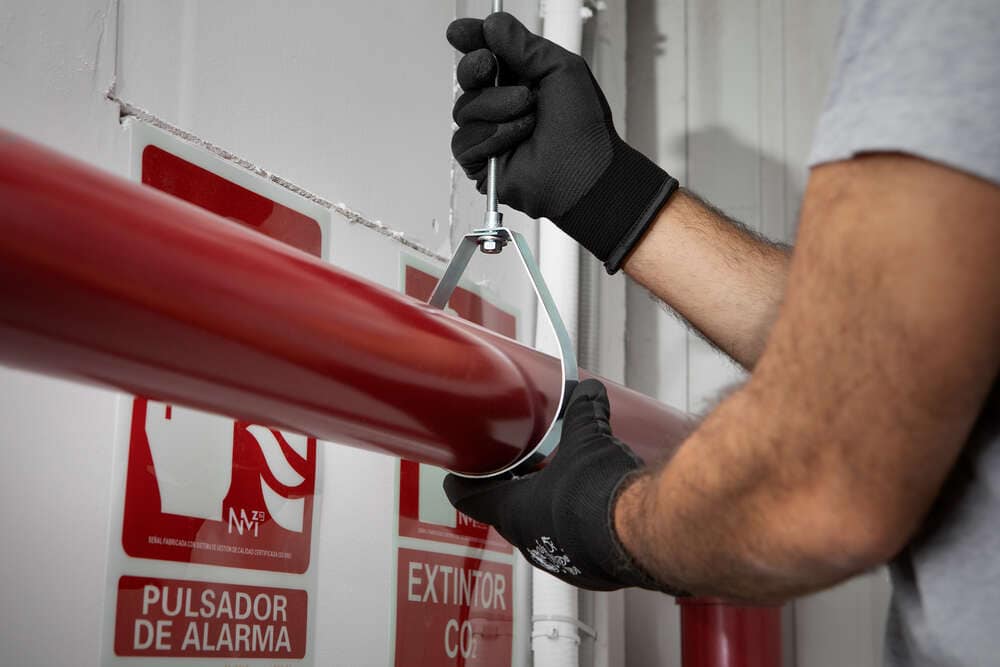

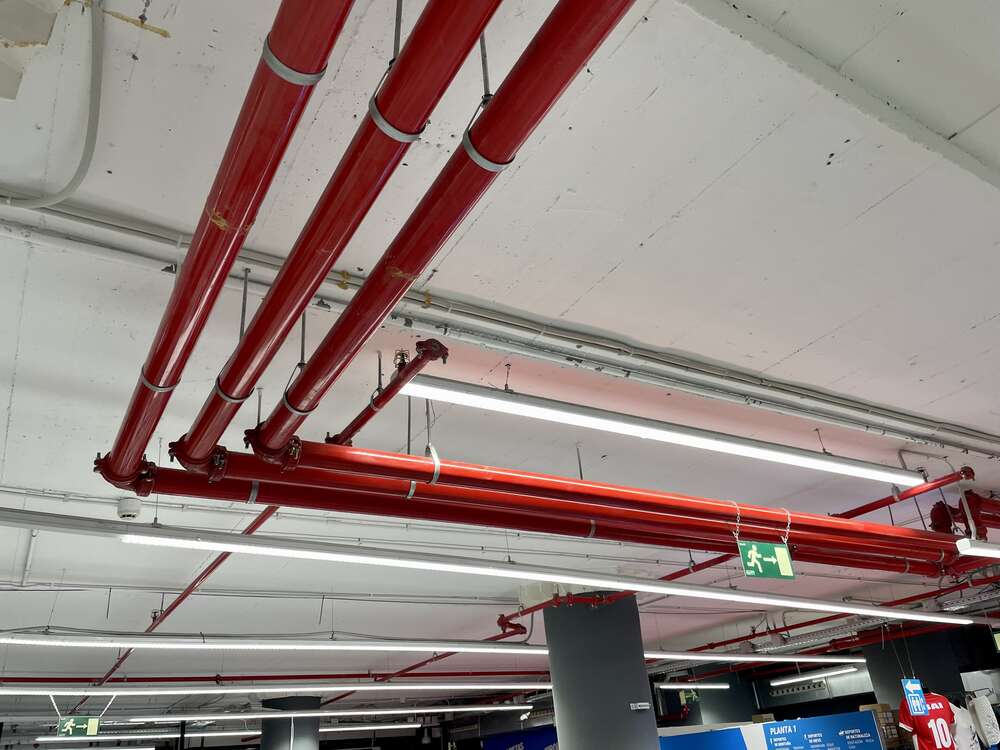

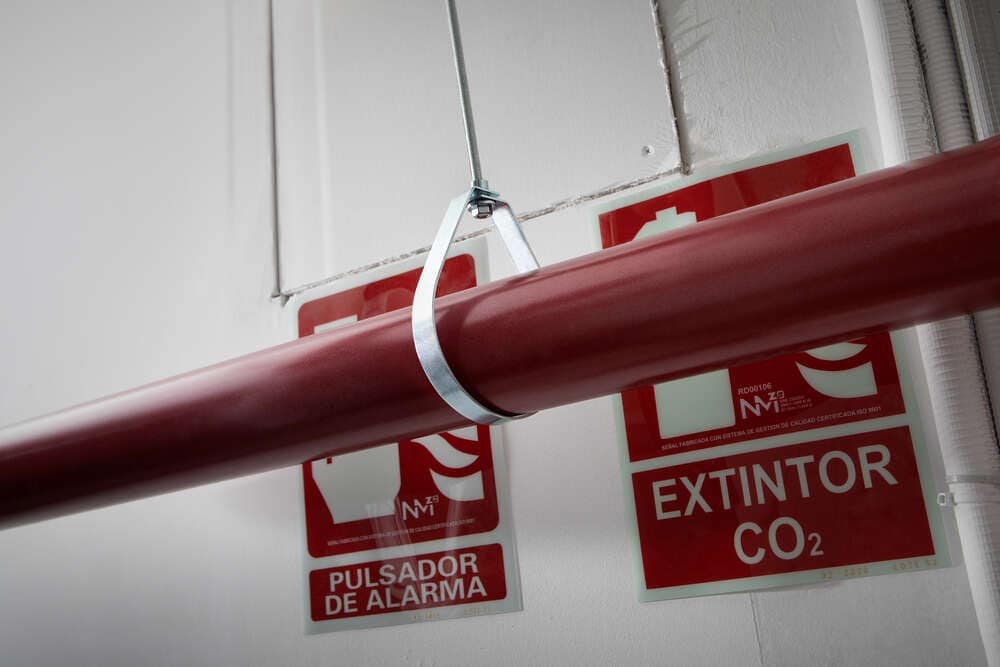

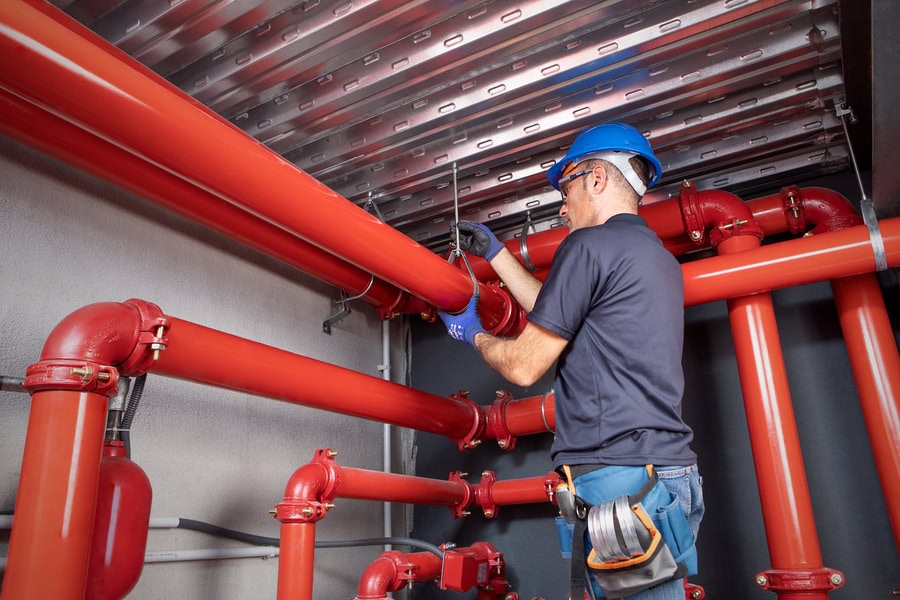

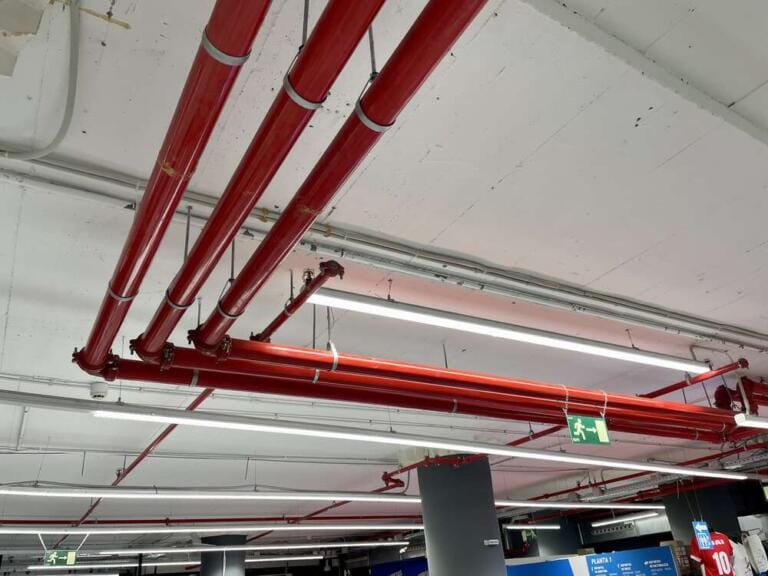

Grampo de suspensão tipo pera, adequado para suportar tubos suspensos pesados em instalações de combate a incêndios. Incorpora uma porca roscada e serrilhada para a instalação. Possui certificação FM para tubos de extinção de incêndios. É fabricada em aço revestido a zinco.

Aprovações e certificados

+ info
  • FM
Variantes do produto

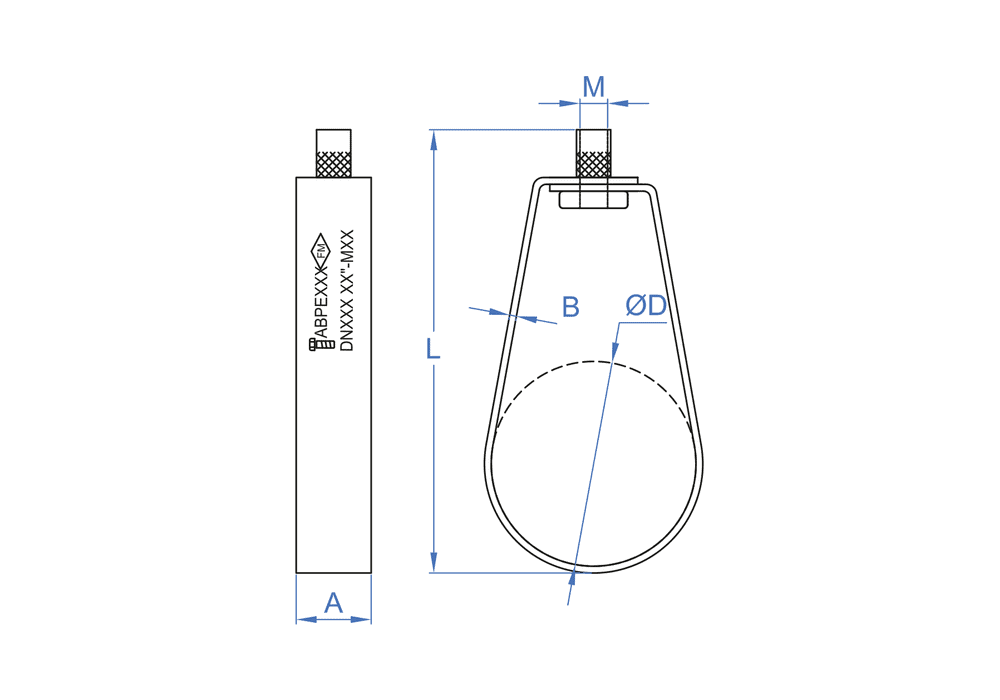

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABPE02828 (M10)DN 20154502008423533739094
ABPE03535 (M10)DN 25186502008423533739100
ABPE04040 (M10)DN 32195502008423533739117
ABPE04848 (M10)DN 40236502008423533739124
ABPE06060 (M10)DN 50288502008423533739131
ABPE07575 (M10)DN 65426251008423533739148
ABPE09090 (M10)DN 80481251008423533739155
ABPE100100 (M10)DN 90569251008423533739162
ABPE115115 (M10)DN 100669251008423533739179
ABPE140140 (M12)DN 12590710408423533739186
ABPE160160 (M12)DN 1501.18610408423533739193
ABPE220220 (M12)DN 2001.72310408423533739209
