Produtos / Sistemas de Instalação / Sistemas de proteção contra incêndios / AB-CH / AB-CH
AB-CH
AB-CH
AB-CH

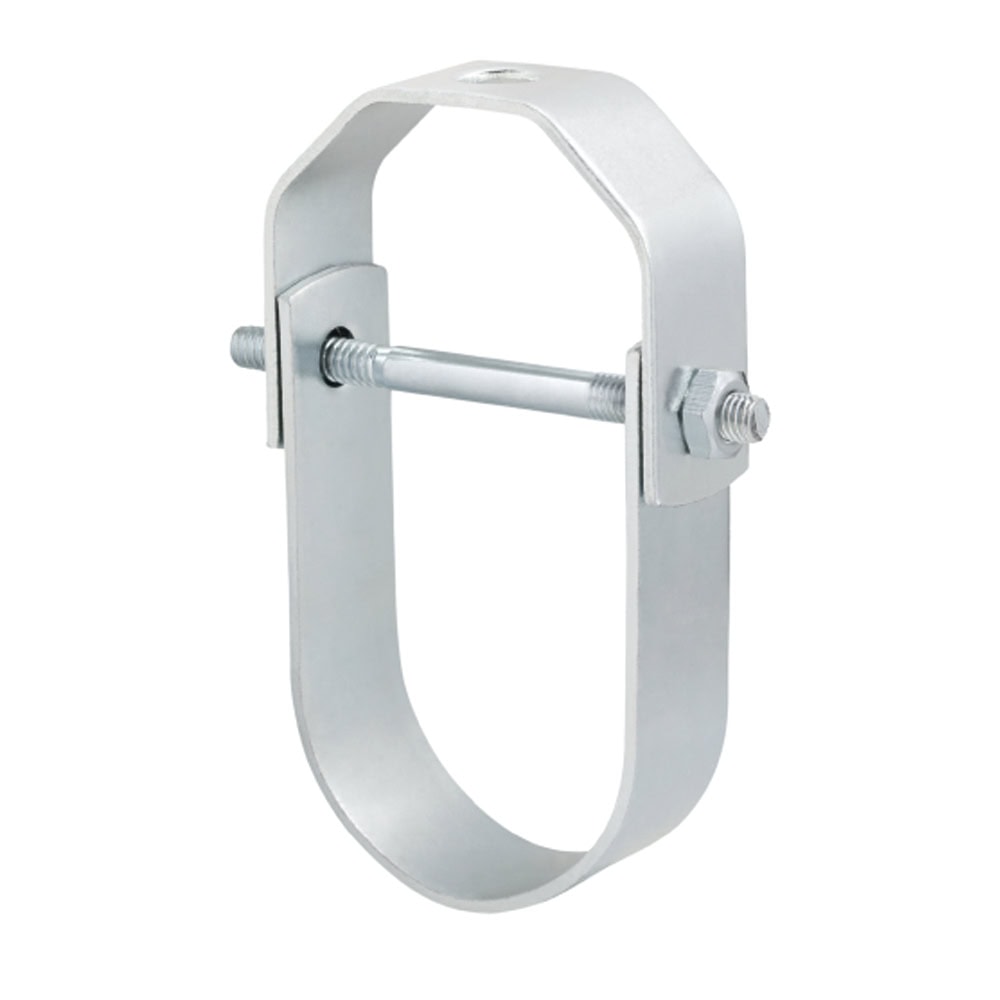

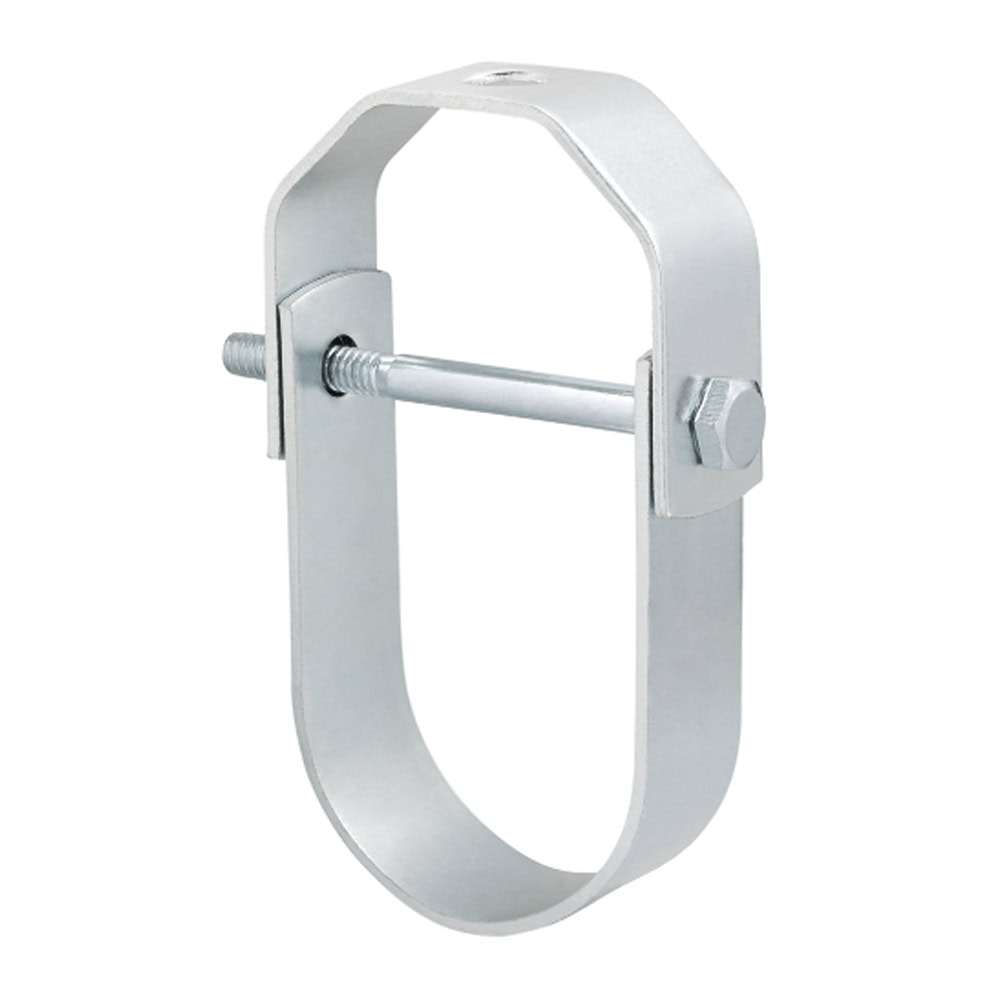

Abraçadeira Clevis AB-CH

Braçadeira de tipo forquilha, concebida para suportar tubos em instalações de combate a incêndios. Permite a instalação de tubos pesados em suspensão. Possui as certificações FM e UL, que garantem o seu desempenho para a montagem de sistemas de extinção de incêndios. É fabricado em aço revestido a zinco.

Aprovações e certificados

+ info
  • UL
  • FM
Medida não homologada
Variantes do produto

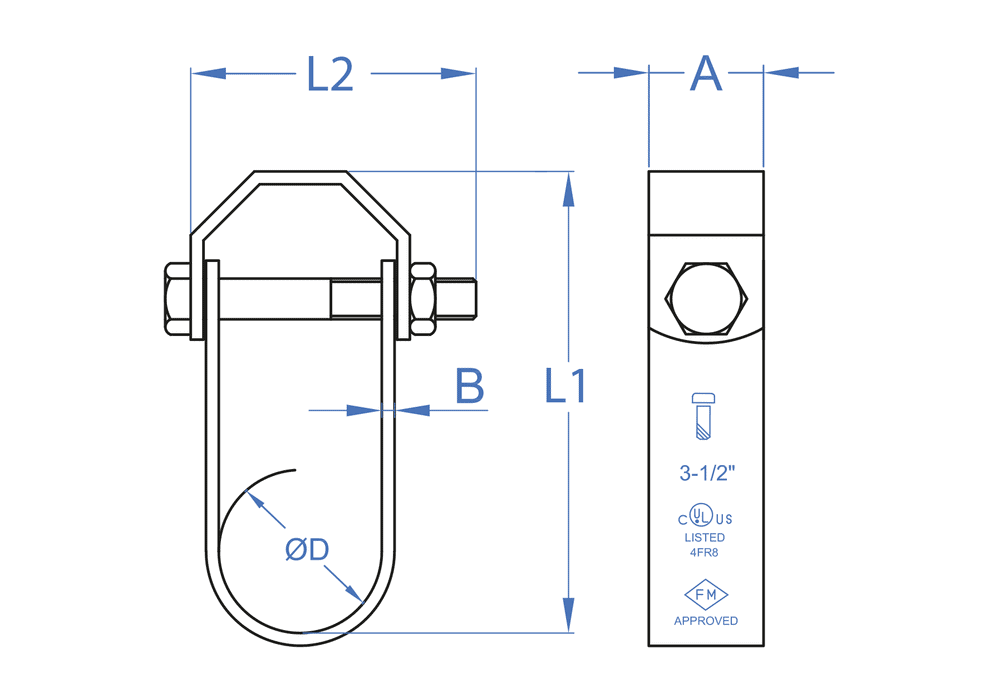

CódigoHomologaçãoMedidaØ D [mm]Uds. CaixaEANInfo. Técnica
ABCH00034HO_UL3/4"28508423533825704
ABCH01000HO_UL1"35508423533825711
ABCH01012HO_UL1 1/2"48508423533825735
ABCH01014HO_UL1 1/4"42508423533467805
ABCH02000HO_UL2"60508423533825742
ABCH02012HO_UL,HO_FM2 1/2"75308423533825759
ABCH03000HO_UL,HO_FM3"90258423533825766
ABCH04000HO_UL,HO_FM4"115258423533825773
ABCH05000HO_UL,HO_FM5"140258423533825780
ABCH06000HO_UL,HO_FM6"160108423533825797
ABCH08000HO_UL,HO_FM8"220108423533825803
ABCH10000HO_UL10"27518423533825810
ABCH12000HO_UL12"32518423533825827
ABCH14000 14"35518423533825834
ABCH16000 16"40518423533825841

Solicitar mais informações
