Produtos / Sistemas de Instalação / Abraçadeiras metálicas leves / AB-PI / AB-PI
AB-PI
AB-PI
AB-PI
AB-PI
AB-PI

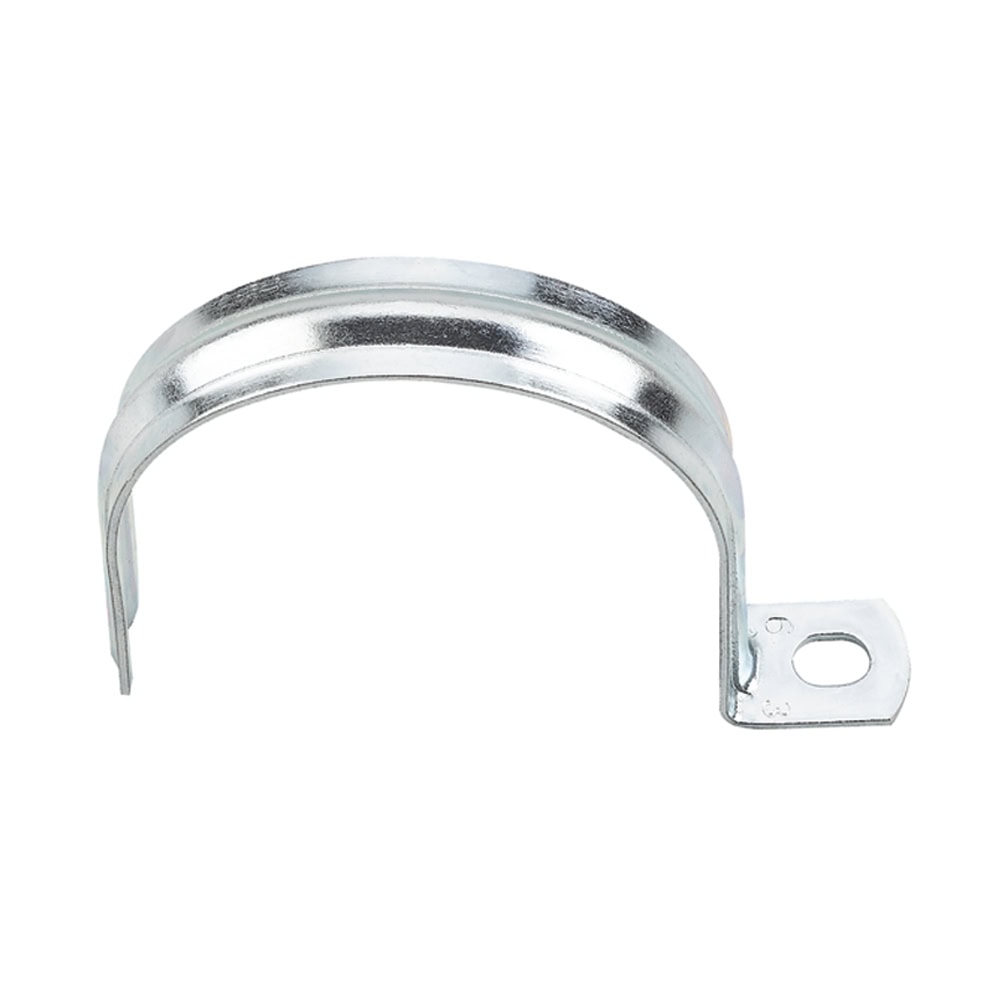

Abraçadeira de um pé AB-PI

Braçadeira metálica para tubos de aço, PVC ou cabos de Ø6 a Ø63 mm (conforme o modelo). Braçadeira de um pé, que permite fixar facilmente tubos leves em instalações elétricas ou sanitárias, entre outras. É fabricada em aço com revestimento zincado.
Variantes do produto

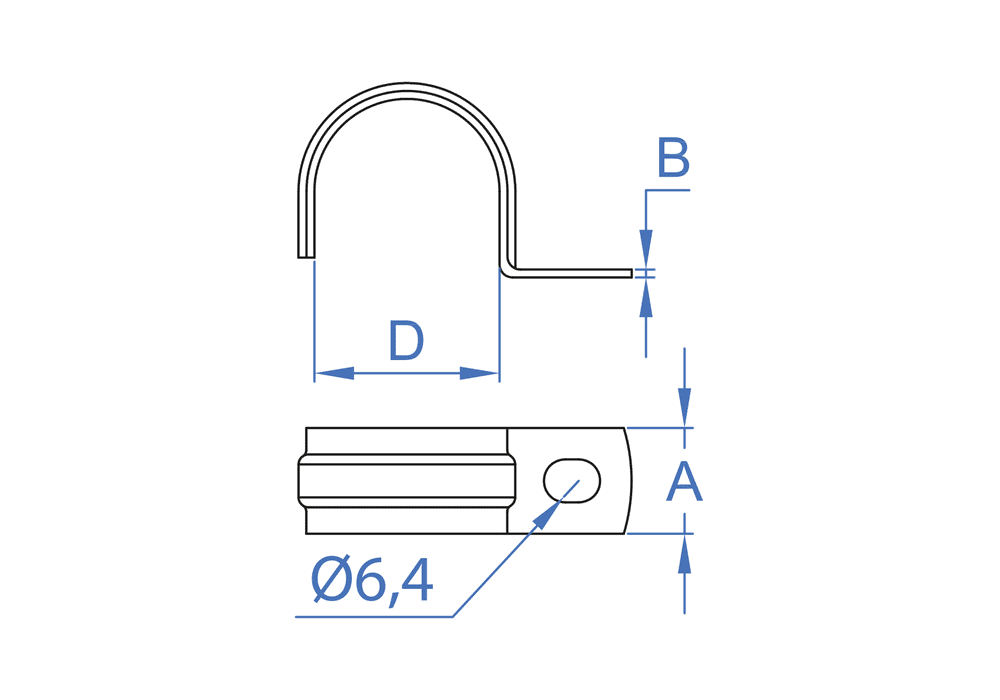

CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABPI00666301002.4008423533213709
ABPI00888301002.4008423533213808
ABPI0101010301002.4008423533213907
ABPI0121212301002.4008423533214003
ABPI0141414301002.4008423533214102
ABPI0161616301001.2008423533214300
ABPI0181818301001.2008423533214409
ABPI0202020301001.2008423533214508
ABPI0222222301006008423533214607
ABPI0252525301006008423533249500
ABPI0262626301006008423533214805
ABPI0282828301006008423533214904
ABPI0323232301006008423533215109
ABPI040404030503008423533215307
ABPI042424230503008423533215406
ABPI047474730502008423533215505
ABPI050505030502008423533249609
ABPI063636330502008423533249708
