Produtos / Ancoragens / Fixações metálicas / SL / SL-PT
SL-PT
SL-PT

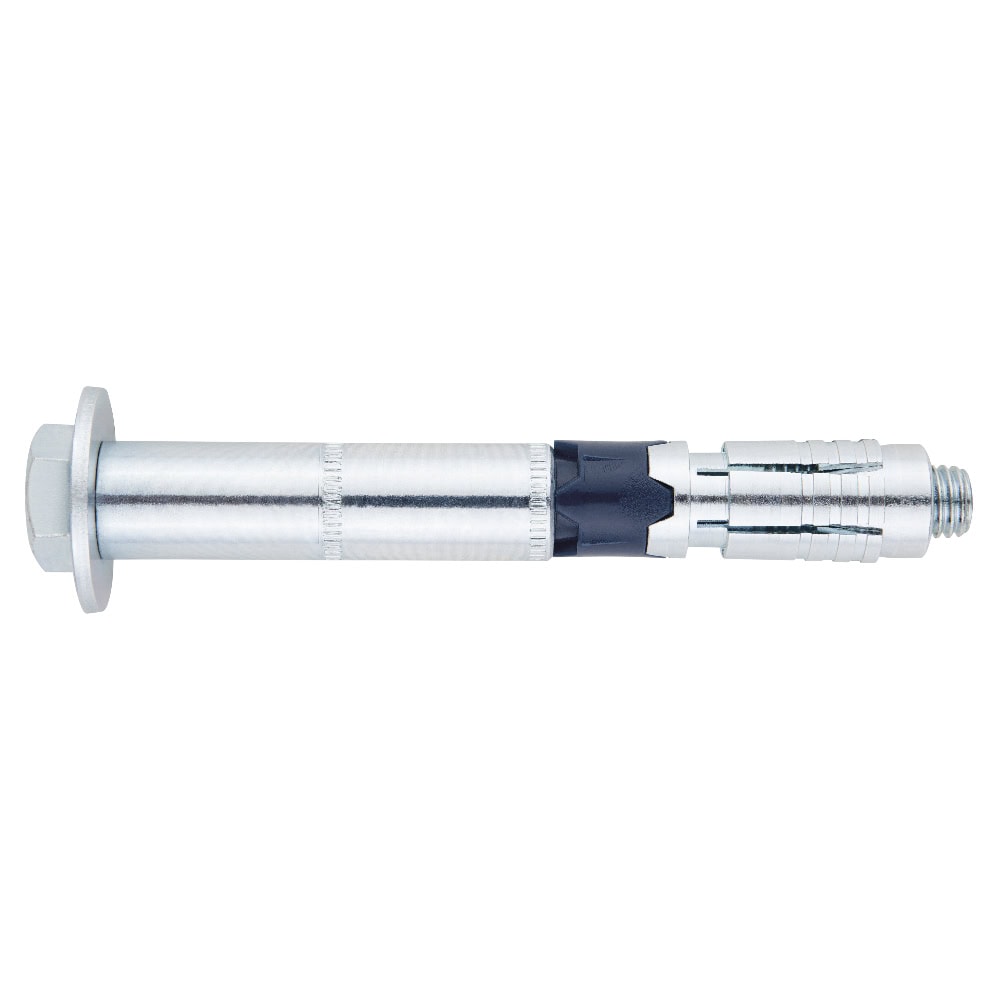

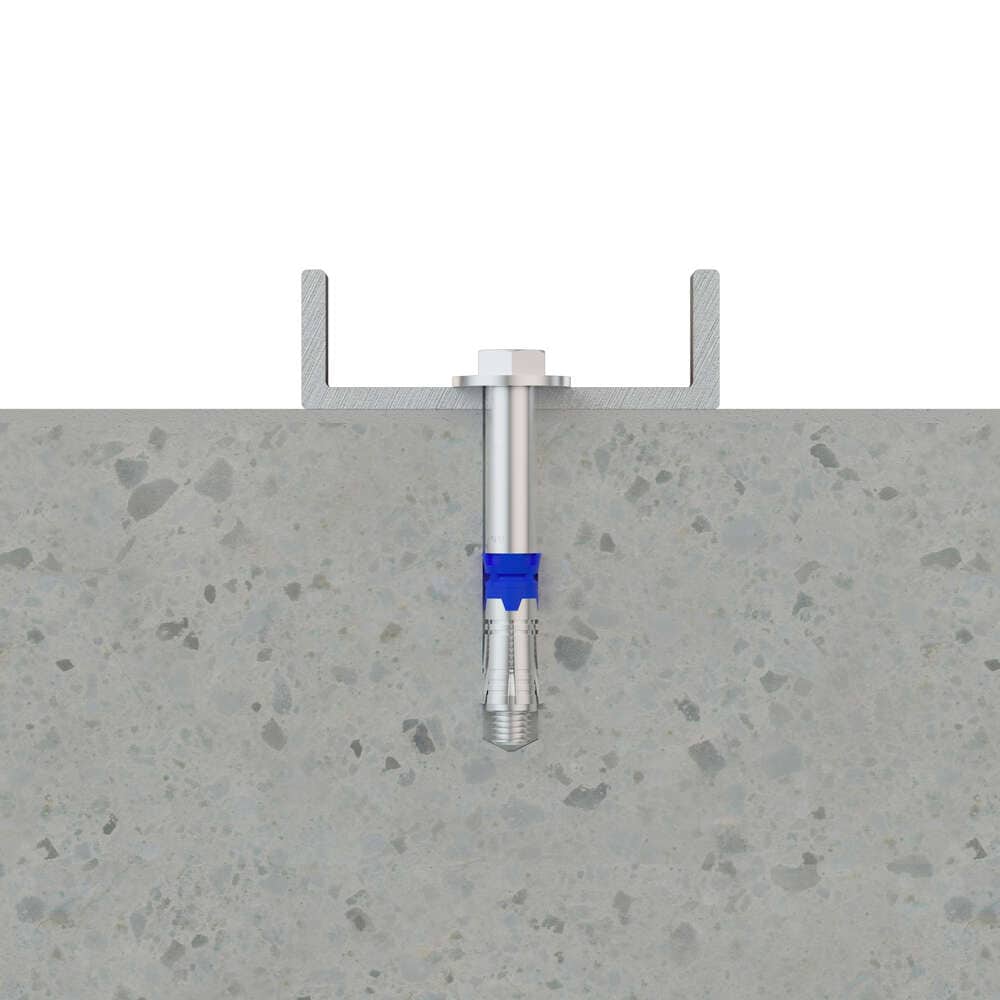

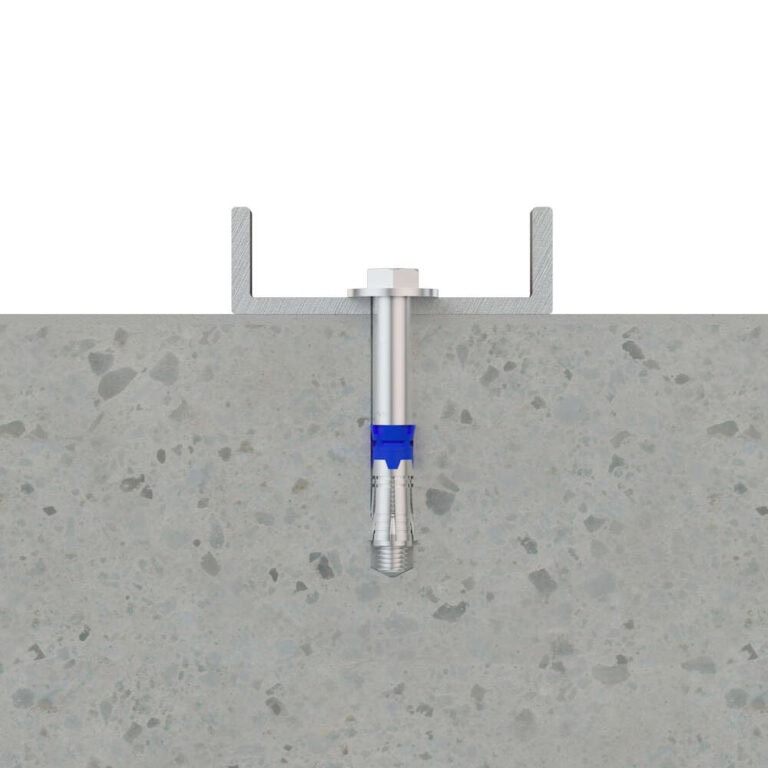

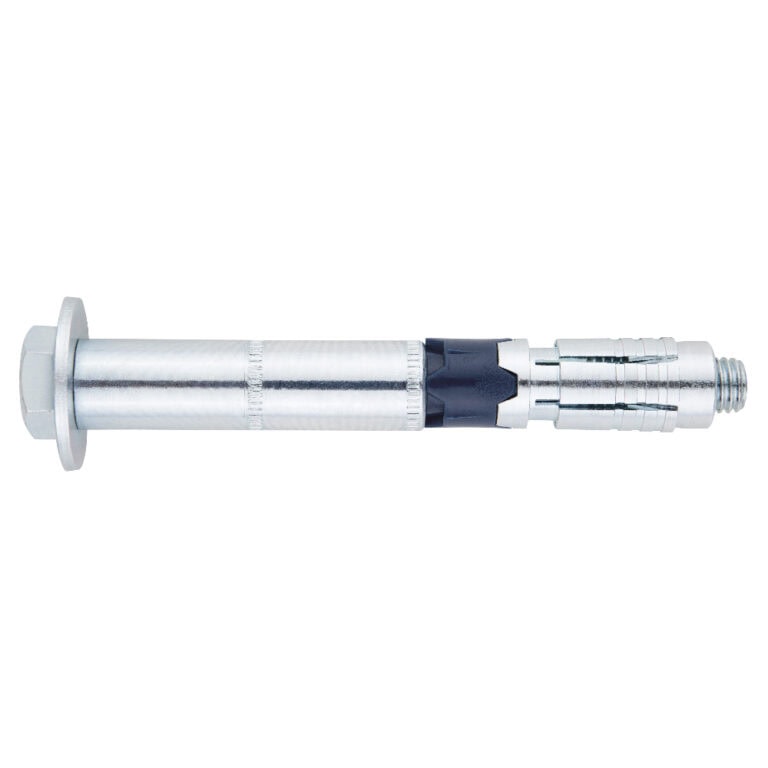

Bucha para cargas elevadas com cabeça hexagonal SL-PT

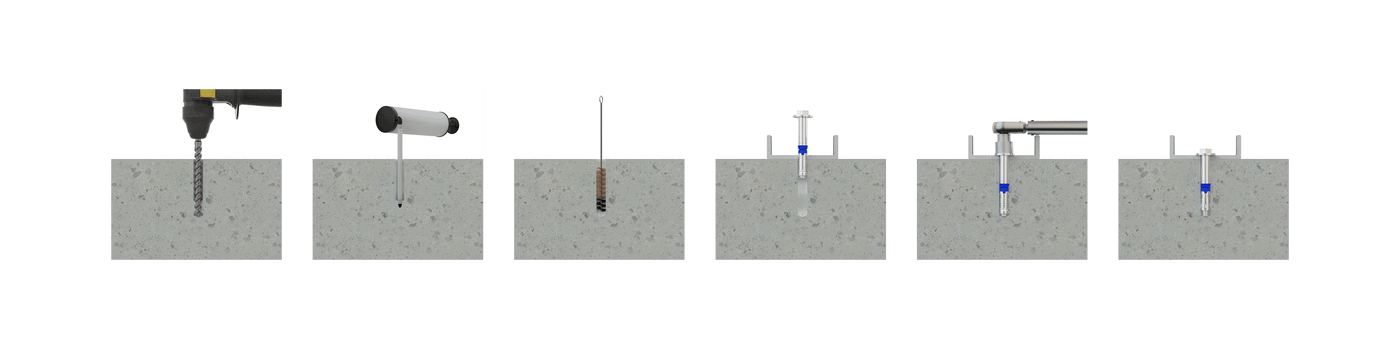

Bucha de segurança com anti-rotação em nylon. Para cargas pesadas em betão fissurado e não fissurado. Cabeça hexagonal. Funcionamento por expansão e instalação com controlo de binário. Homologada pela ETE Opt 1. Fabricada em aço zincado.

Aprovações e certificados

+ info
  • ETA CU 18-1108
  • CE 2018
  • Resistente ao fogo
  • SEISMIC C1&C2
  • VDS
Variantes do produto

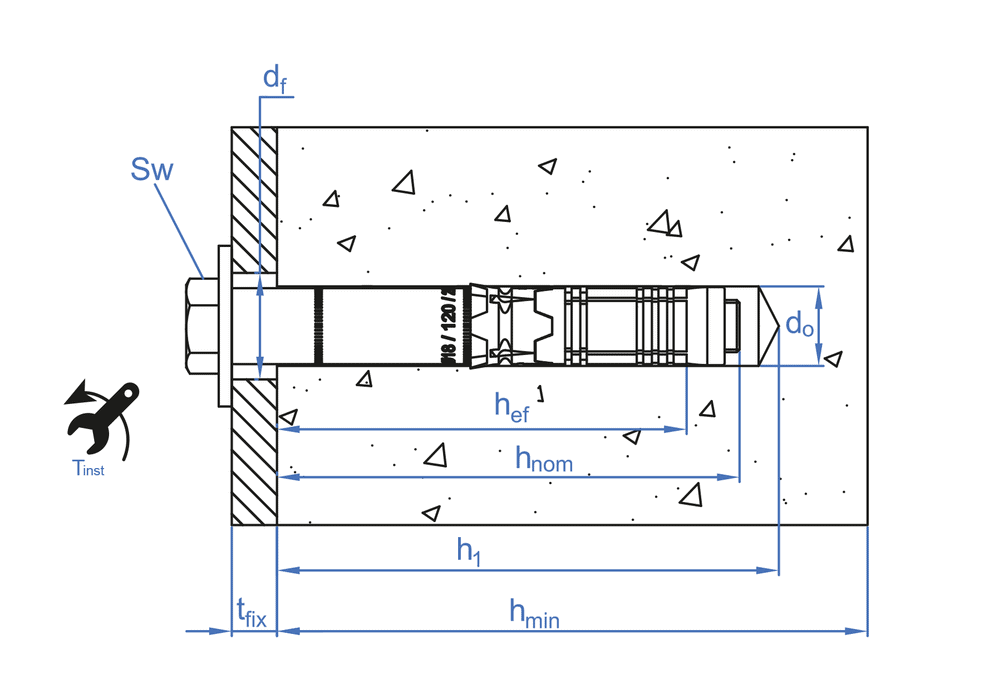

CódigoMedidaESPESSURA MÁX. AFIXAR [mm]ESPESSURA MIN. DO MATERIAL BASEUds. CaixaUds. MasterboxEANInfo. Técnica
SLPT10070M6 x 70 Ø1010100506008423533827753
SLPT10080M6 x 80 Ø1020100506008423533827760
SLPT10100M6 x 100 Ø1040100503008423533827777
SLPT10110M6 x 110 Ø1050100251508423533827784
SLPT12080M8 x 80 Ø125120503008423533827791
SLPT12090M8 x 90 Ø1215120502008423533827807
SLPT12100M8 x 100 Ø1225120502008423533827814
SLPT12120M8 x 120 Ø1245120252008423533827821
SLPT16100M10 x 100 Ø1615140251508423533827838
SLPT16120M10 x 120 Ø1635140251008423533827845
SLPT16140M10 x 140 Ø165514020608423533827852
SLPT16160M10 x 160 Ø167514020608423533827869
SLPT18110M12 x 110 Ø181017020808423533827876
SLPT18120M12 x 120 Ø182017020808423533827883
SLPT18140M12 x 140 Ø184017020808423533827890
SLPT18150M12 x 150 Ø185017020808423533827906
SLPT18170M12 x 170 Ø187017015458423533827913
SLPT18200M12 x 200 Ø1810017015308423533827920
SLPT24140M16 x 140 Ø242020010408423533827937
SLPT24170M16 x 170 Ø245020010308423533827944
SLPT24200M16 x 200 Ø248020010208423533827951
SLPT24220M16 x 220 Ø2410020010208423533827968
SLPT28170M20 x 170 Ø282025010208423533827975
SLPT28200M20 x 200 Ø285025010208423533827982
SLPT28240M20 x 240 Ø28902505108423533827999
