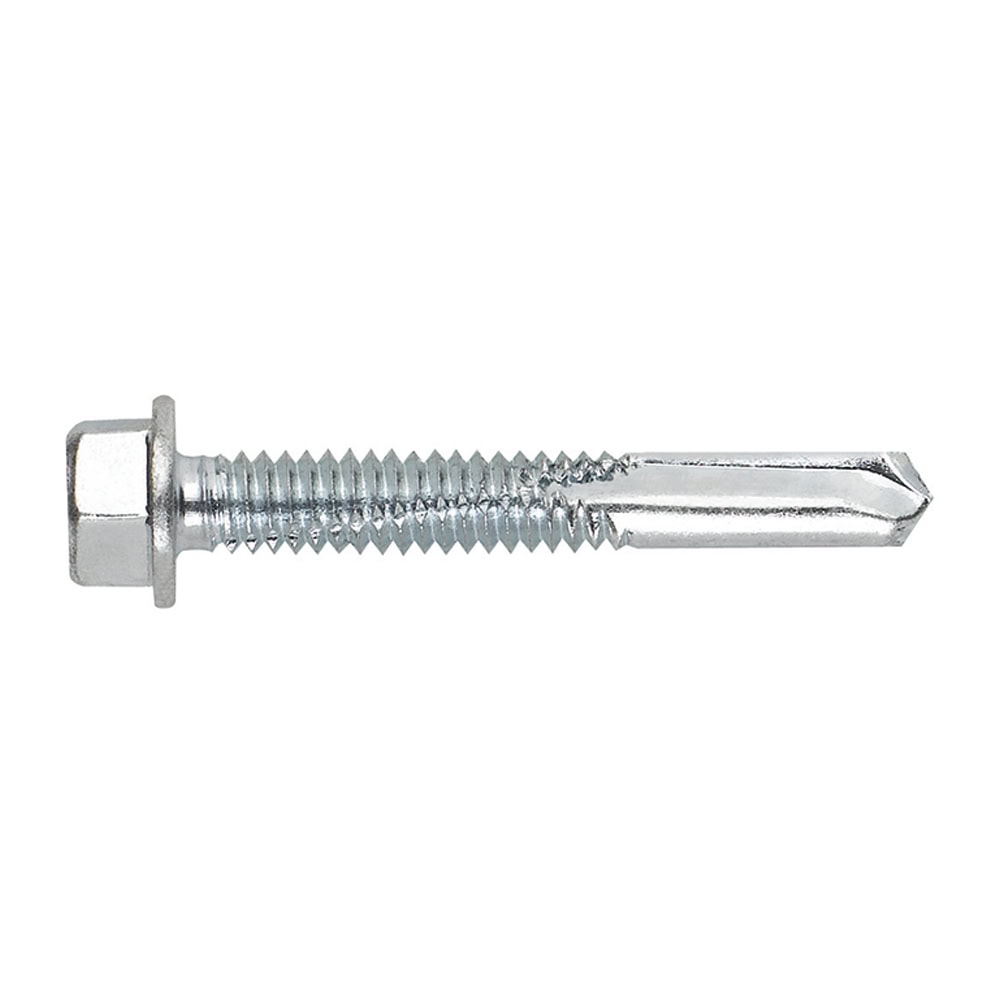

Parafuso autoperfurante para viga AUTO

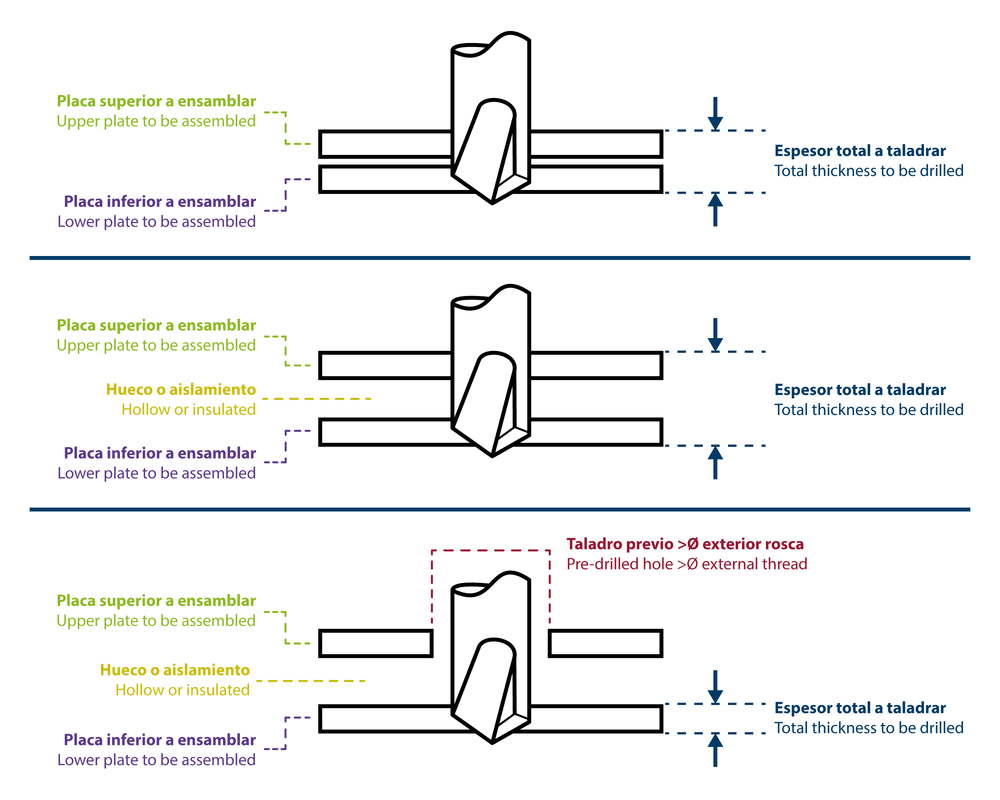

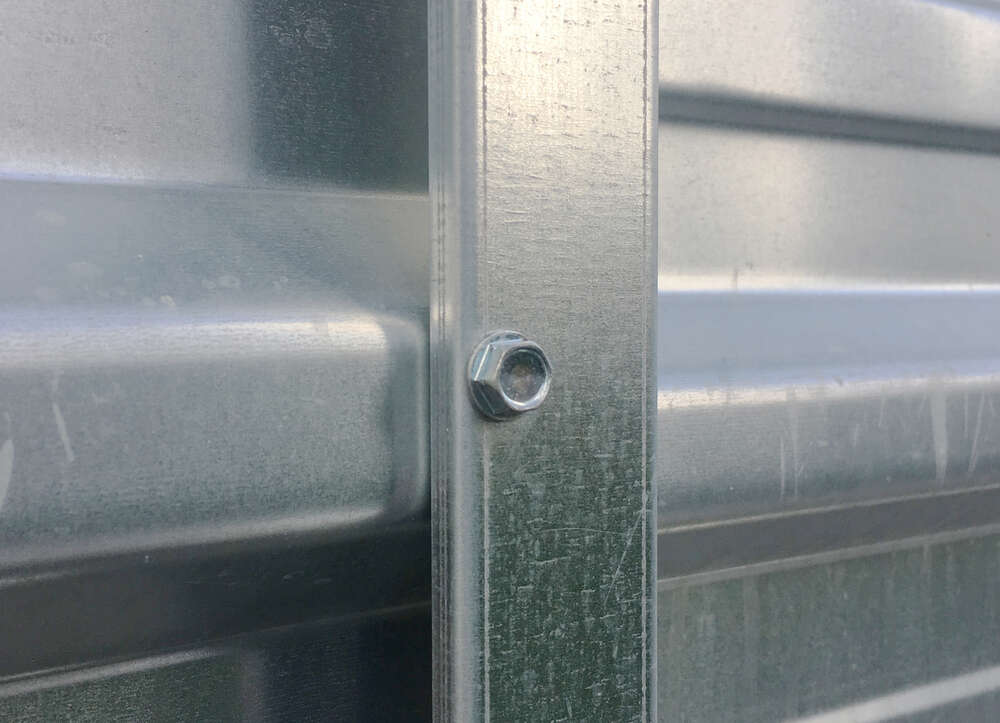

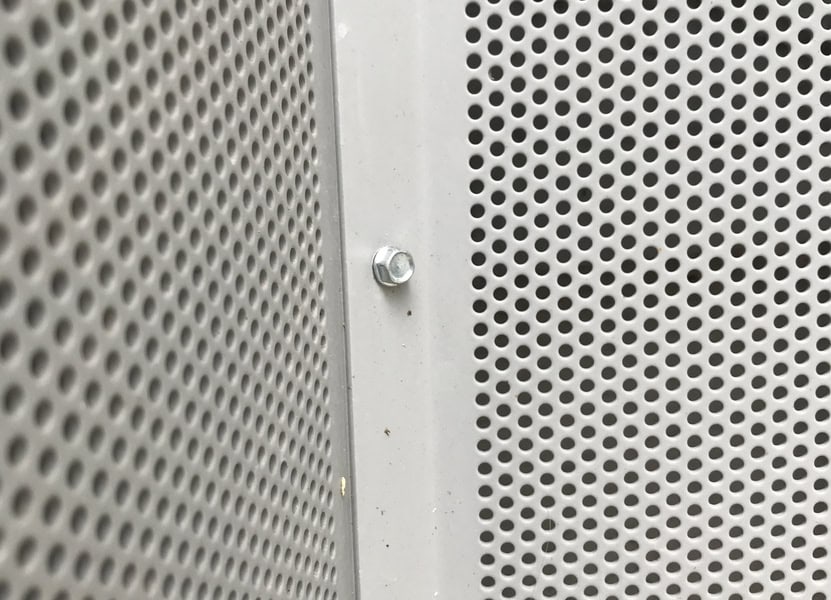

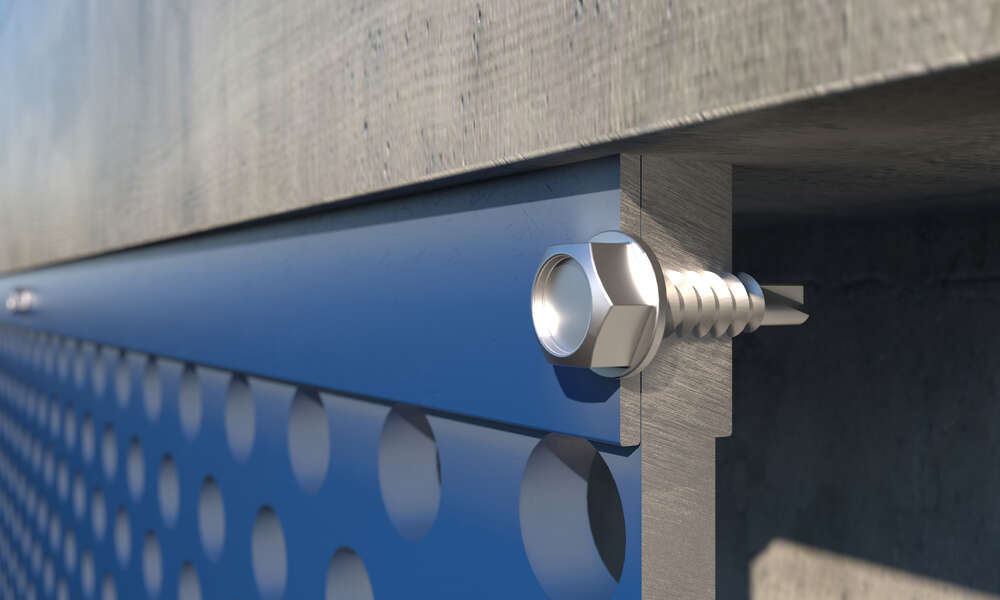

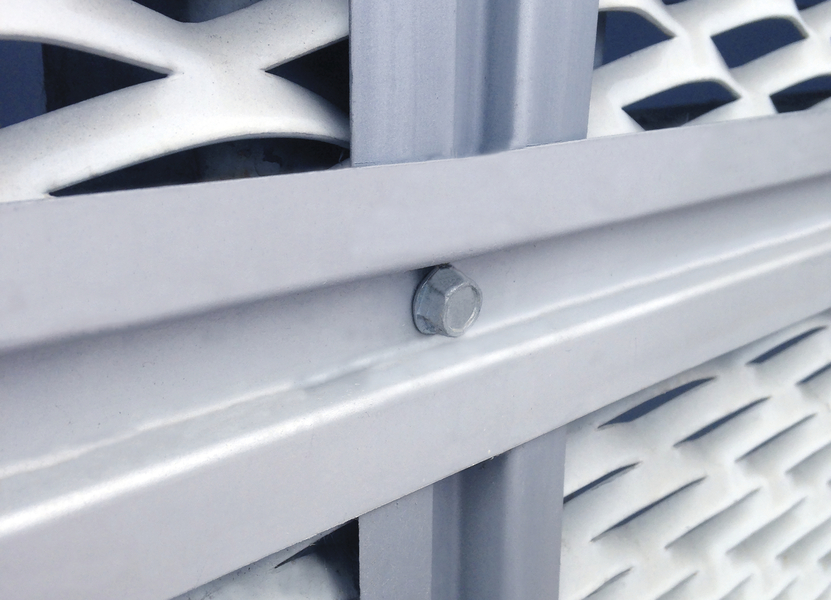

Parafuso auto-roscante para vigas, com cabeça hexagonal e anilha estampada. A sua ponta de perfuração extra-longa permite a fixação de chapas metálicas particularmente espessas até 12 mm. Pode ser utilizado para unir chapa metálica a vigas IPN. É auto-perfurante, pelo que não necessita de pré-perfuração para a instalação. É fabricado em aço zincado.
Variantes do produto

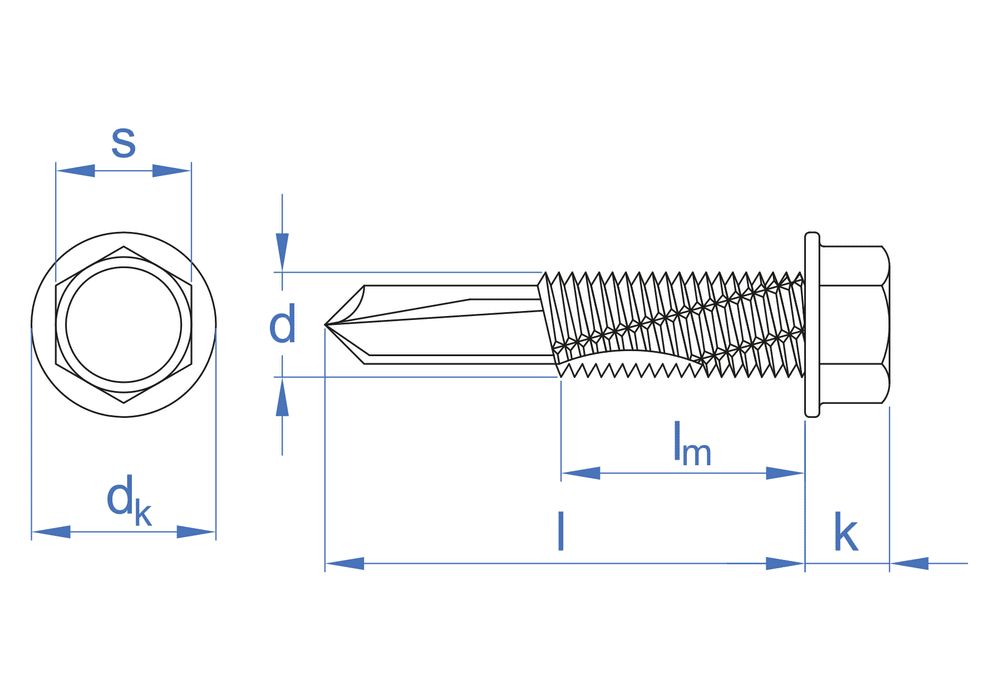

CódigoMedidaESPESSURA MÁX. AFIXAR [mm]Nº FENDACAPACIDADE DE FURAÇÃOUds. CaixaUds. MasterboxEANInfo. Técnica
AUTO5325,5 x 3221,584,00-12,005003.0008423533106070
AUTO5385,5 x 3827,584,00-12,005003.0008423533105974
AUTO5505,5 x 5039,584,00-12,005002.0008423533626363
AUTO5605,5 x 6049,584,00-12,002501.5008423533626592
AUTO5805,5 x 806784,00-12,002501.0008423533626820
AUTO5105,5 x 1008084,00-12,001006008423533626868
