Produtos / Ancoragens / Fixações metálicas / CH / CH-8.8
CH-8.8
CH-8.8
CH-8.8
CH-8.8
CH-8.8
CH-8.8

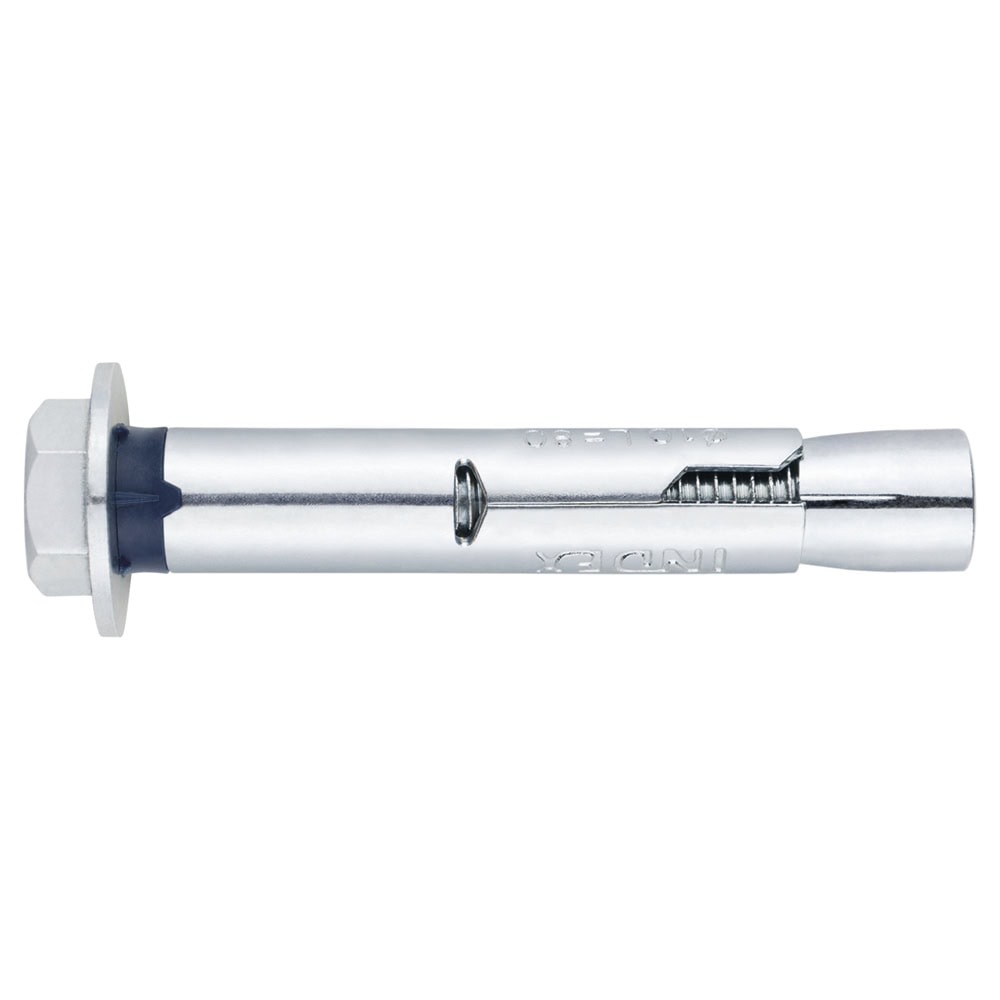

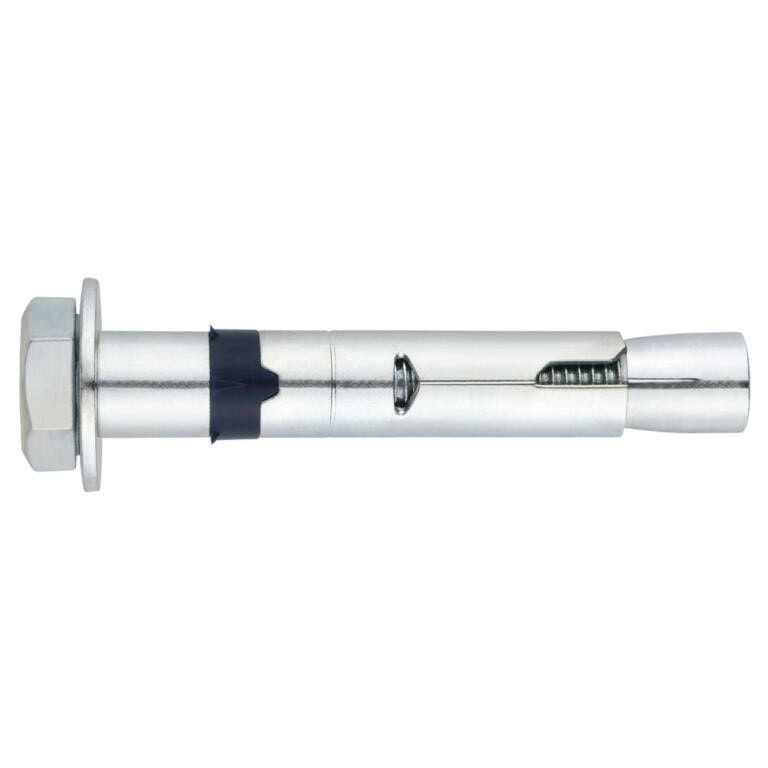

Bucha metálica anti-rotação com parafuso sextavado CH-88

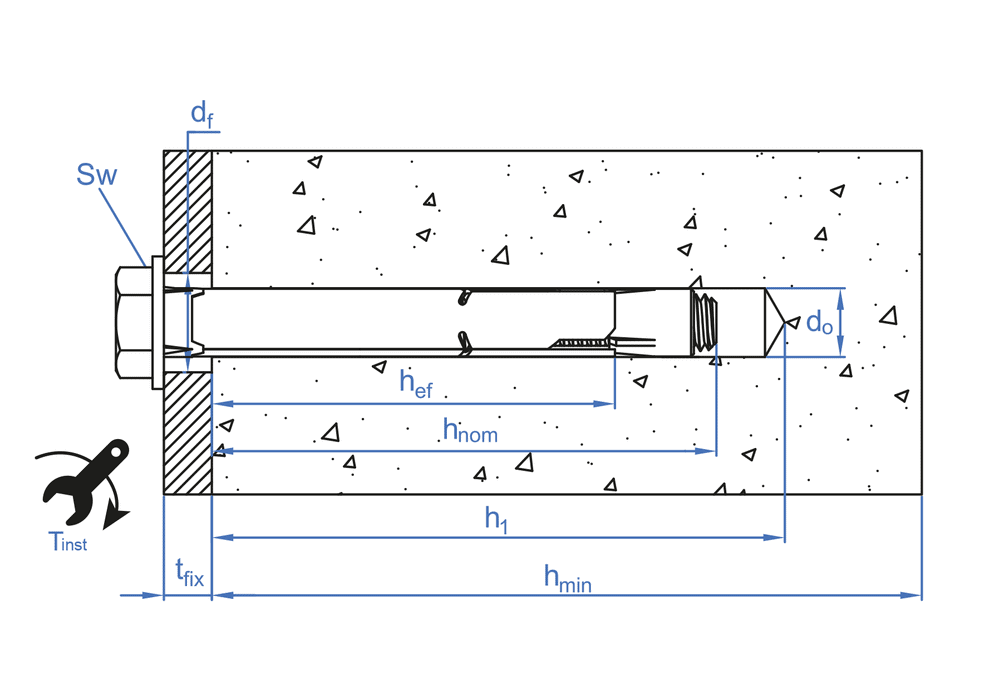

Bucha metálica anti-rotação com parafuso hexagonal 8.8. Para utilização em materiais sólidos. Está equipada com dispositivos anti-rotação que impedem a rotação da bucha durante o aperto. Funciona por meio de expansão mecânica controlada por binário. Fabricado em aço zincado.
Amplie as informações

Aprovações e certificados

+ info
  • ETA UN 18-0018
  • CE 2018
Medida não homologada
Variantes do produto
CódigoMedidaUds. CaixaUds. MasterboxEANInfo. Técnica
ACHT8808CM6 x 45 Ø82001.2008423533584366
ACHT8808LM6 x 60 Ø82008008423533584380
ACHPR8808C M6 x 80 Ø81006008423533924841
ACHPR8808L M6 x 100 Ø8503008423533924858
ACHT8810CM8 x 60 Ø101006008423533584410
ACHT8810LM8 x 80 Ø101004008423533584434
ACHPR8810C M8 x 100 Ø10503008423533924865
ACHPR8810M M8 x 120 Ø10503008423533924872
ACHPR8810L M8 x 140 Ø10252008423533924889
ACHT8812CM10 x 70 Ø121002008423533584458
ACHT8812LM10 x 100 Ø12502008423533584472
ACHPR8812C M10 x 120 Ø12502008423533924896
ACHPR8812L M10 x 150 Ø12251008423533924902
ACHT8816LM12 x 110 Ø16501008423533584519
ACHT8816CM12 x 80 Ø16502008423533584502
ACHT8820CM16 x 110 Ø2025508423533584533
