Produtos / Ancoragens / Fixações metálicas / CH / CH-PI
CH-PI
CH-PI
CH-PI
CH-PI

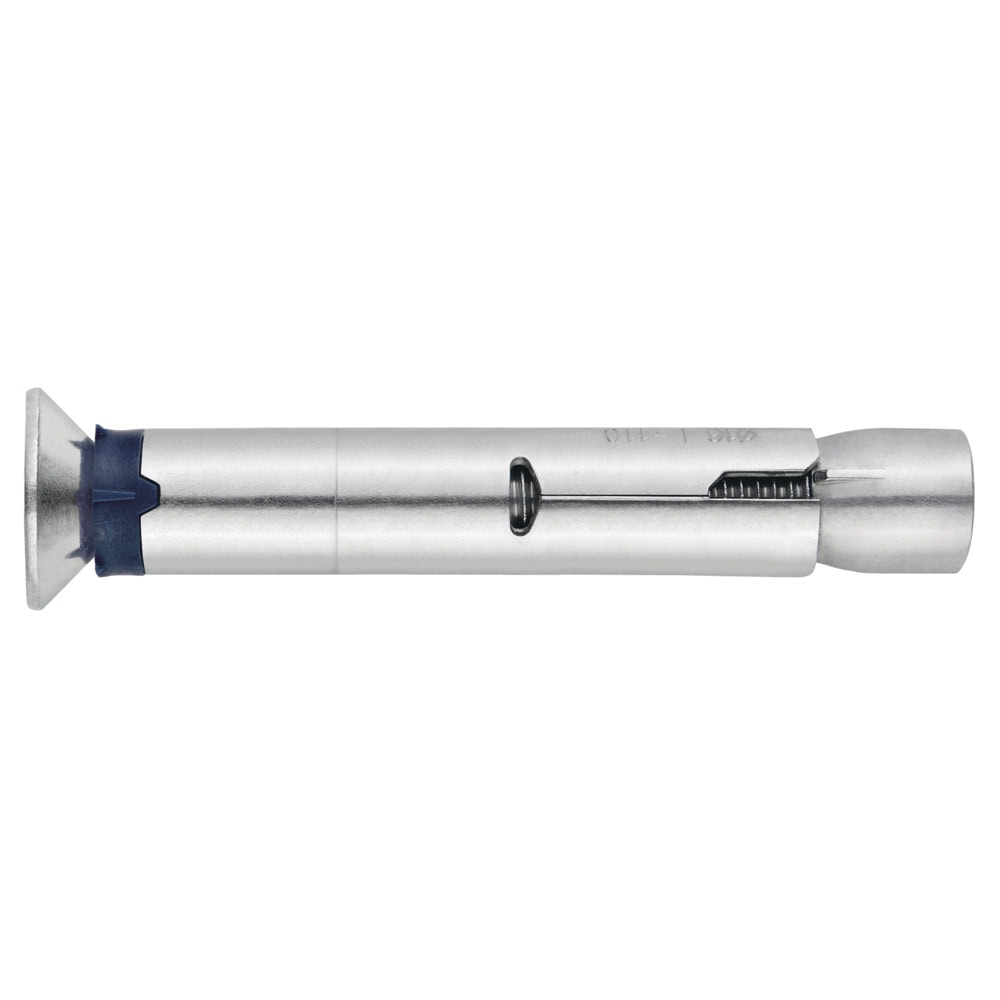

Bucha metálica anti-rotação com cabeça plana em aço inoxidável CH-PI

Bucha metálica anti-rotação com cabeça plana. Para cargas médias em materiais sólidos. Funciona através de expansão mecânica por binário controlado. Dispõe de dispositivos anti-rotação que impedem a rotação da ancoragem durante o aperto. Homologada pela ETE Opt.7. Fabricada em aço inoxidável A2.
Amplie as informações

Aprovações e certificados

+ info
  • ETA UN 18-0018
  • CE 2018
Variantes do produto
CódigoMedidaNº FENDAUds. CaixaUds. MasterboxEANInfo. Técnica
ACHTPI08CM6 x 45 Ø841001.2008423533071750
ACHTPI08LM6 x 60 Ø841001.2008423533071859
ACHTPI10CM8 x 60 Ø1051006008423533071958
ACHTPI10LM8 x 80 Ø1051004008423533072054
ACHTPI12CM10 x 70 Ø126503008423533072153
ACHTPI12LM10 x 100 Ø126503008423533072252
