Products / Anchors / Rigging and hardware / GI / GI-Z
GI-Z

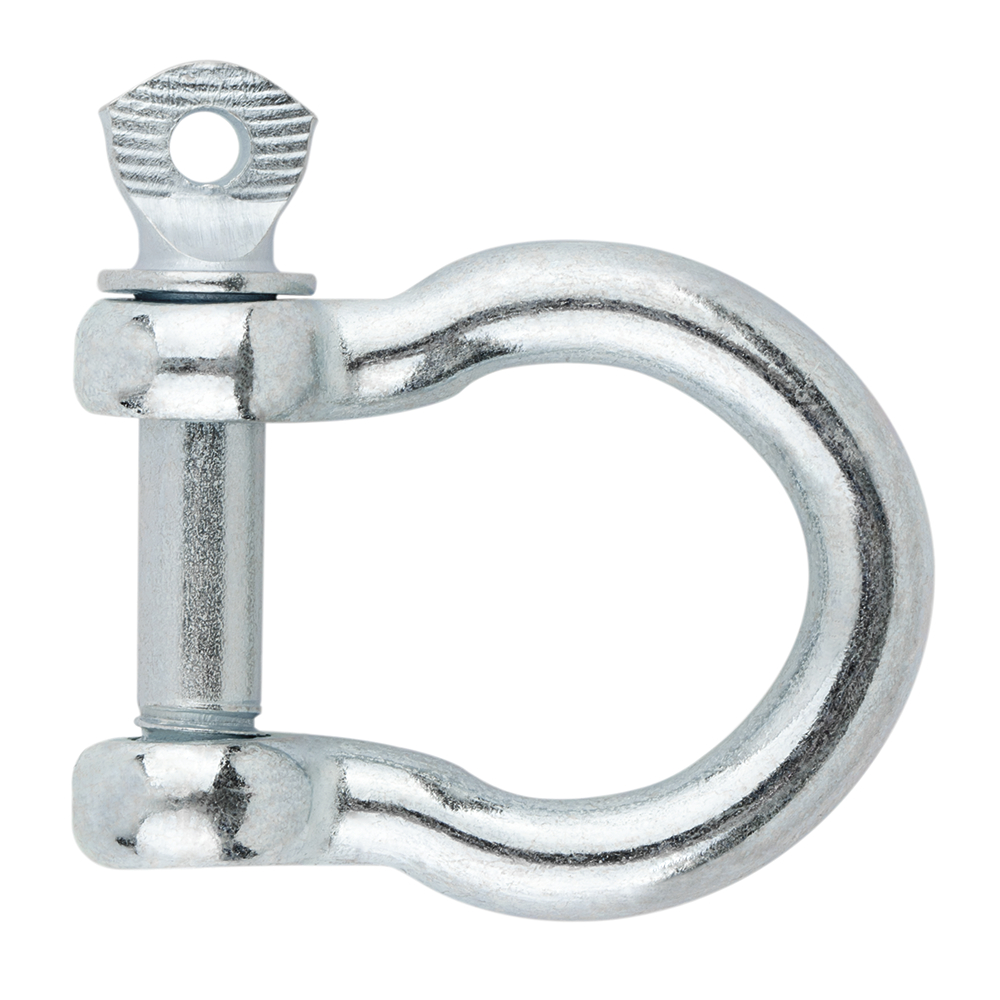

Lyre shackle zinc plated GI-Z

The Lyre shackle, designed to work with slings, ropes, cables, chains or ropes. It can be used for tasks such as lifting and transporting loads or lashing elements. Its design allows the use of one or more slings and ensures easy installation. It is made of zinc-plated steel.
Product variants
CodeSizeEYE BOLT ØPcs. BoxPcs. MasterboxEANTechnical info.
GIZ05M5 (Ø8)8501.2008423533893185
GIZ06M6 (Ø10)10506008423533893192
GIZ08M8 (Ø12)12503008423533893208
GIZ10M10 (Ø16)16502008423533893215
GIZ11M11 (Ø19)19251508423533893222
GIZ12M12 (Ø28)28251008423533893239
GIZ14M14 (Ø33)3310608423533893246
GIZ16M16 (Ø37)3710408423533893253
GIZ20M20 (Ø40)405308423533893260
GIZ22M22 (Ø47)471458423533893277
GIZ25M25 (Ø52)52108423533893284
GIZ28M28 (Ø63)63108423533893291
GIZ32M32 (Ø75)75108423533893307
GIZ36M36 (Ø78)78108423533893314
