FIMA

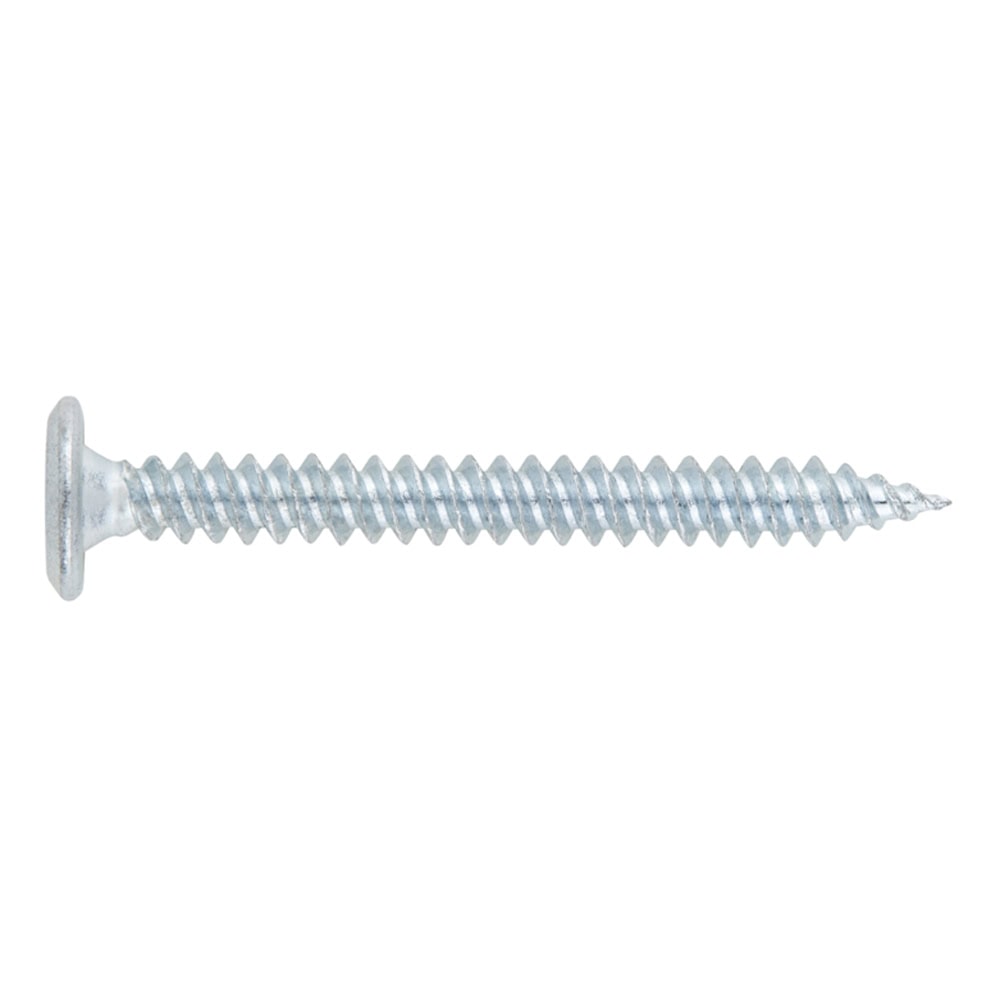

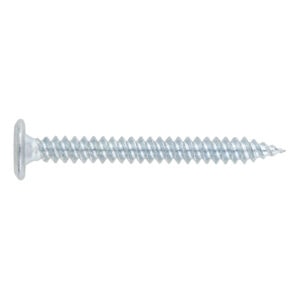

Aluminium flat head screw for aluminium FIMA

Screw for fixing aluminium frames, with an extra flat cylindrical head and TX recess. The special shape of the head prevents countersinking and creates a larger bearing surface on the frame. It can be used in materials such as wood or metal. It is self-tapping and has a double-threaded thread and a C-type tip. It is made of steel and has a zinc-plated coating.
Product variants
CodeSizeNº RECESSPcs. BoxPcs. MasterboxEANTechnical info.
TFI48254,8 x 25TX205006.0008423533139702
TFI48354,8 x 35TX205006.0008423533139801
TFI48454,8 x 45TX205003.0008423533139900
TFI48554,8 x 55TX205003.0008423533140005
TFI48654,8 x 65TX202501.5008423533140104
TFI48754,8 x 75TX202501.5008423533140203
TFI48904,8 x 90TX202501.5008423533140302
