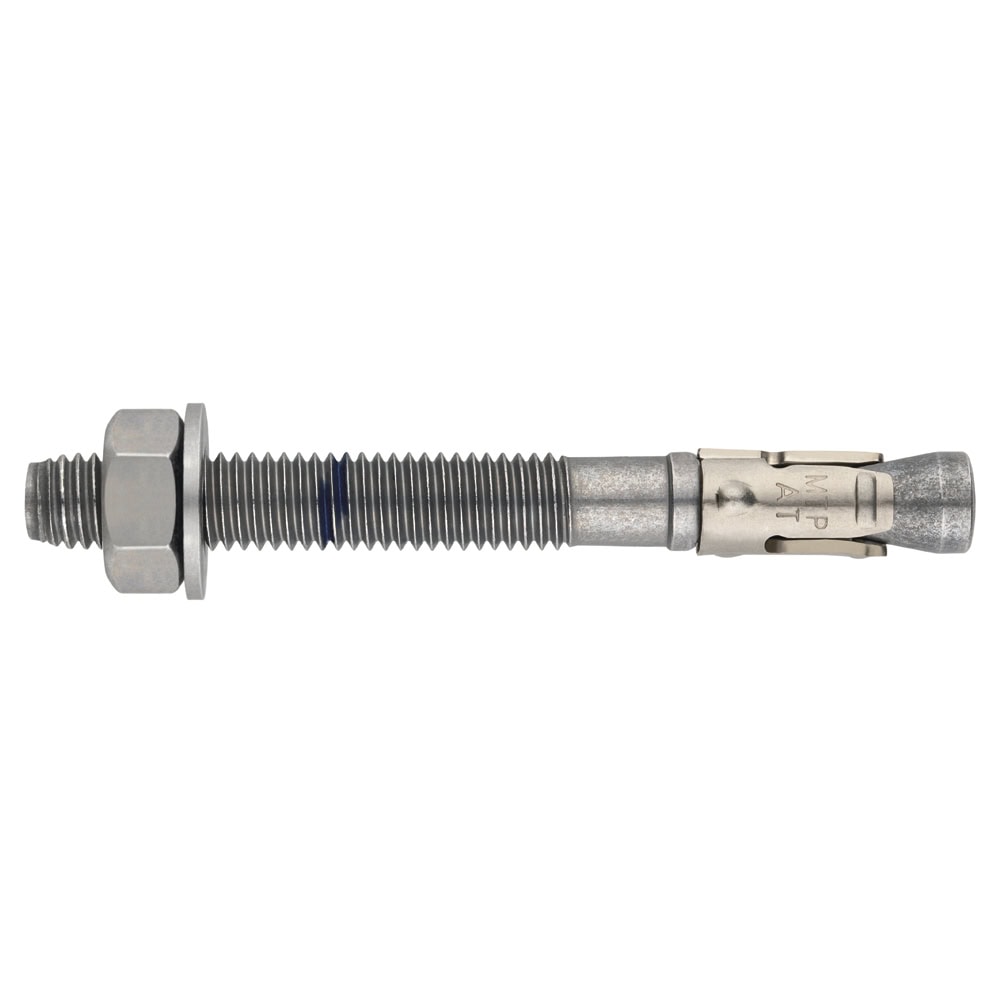

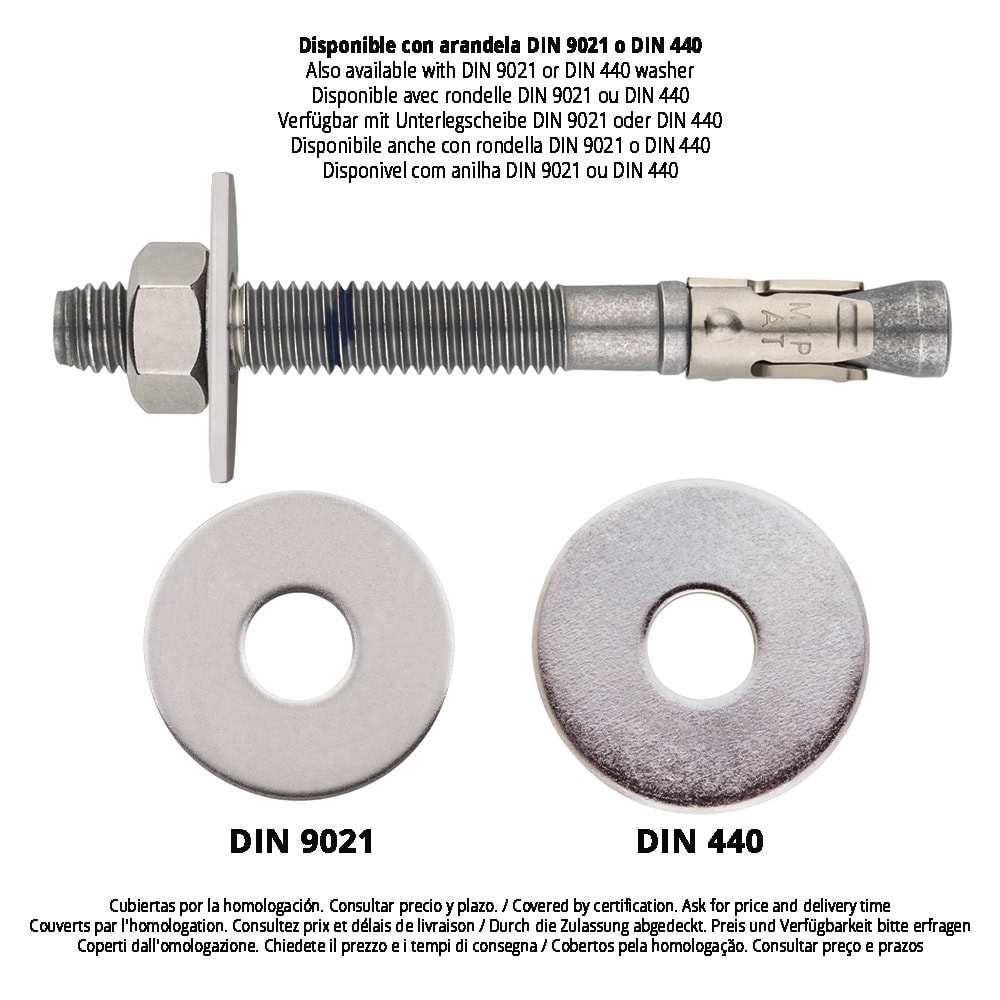

Bolzenanker Zugelassen MTP-AT

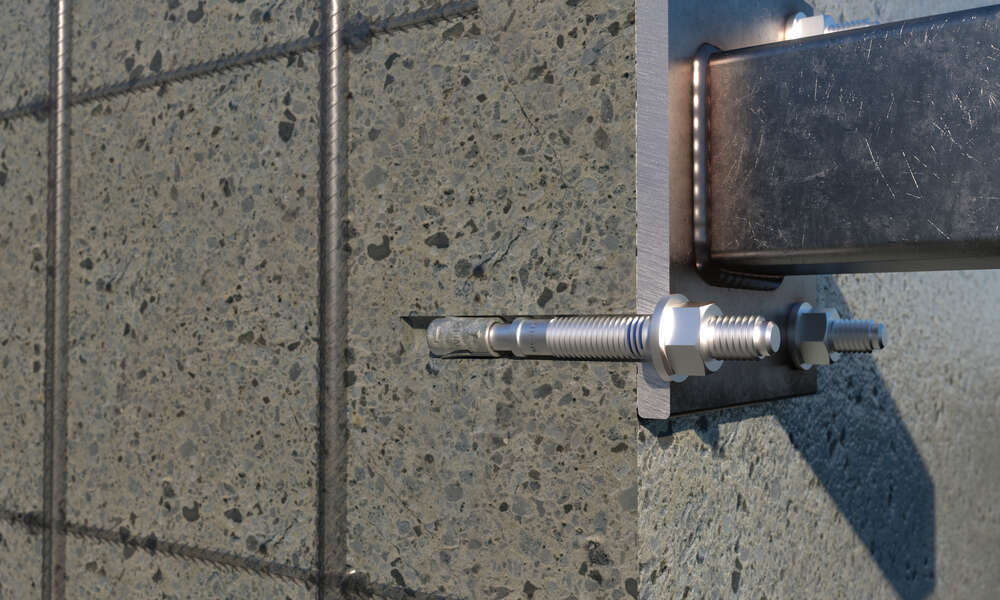

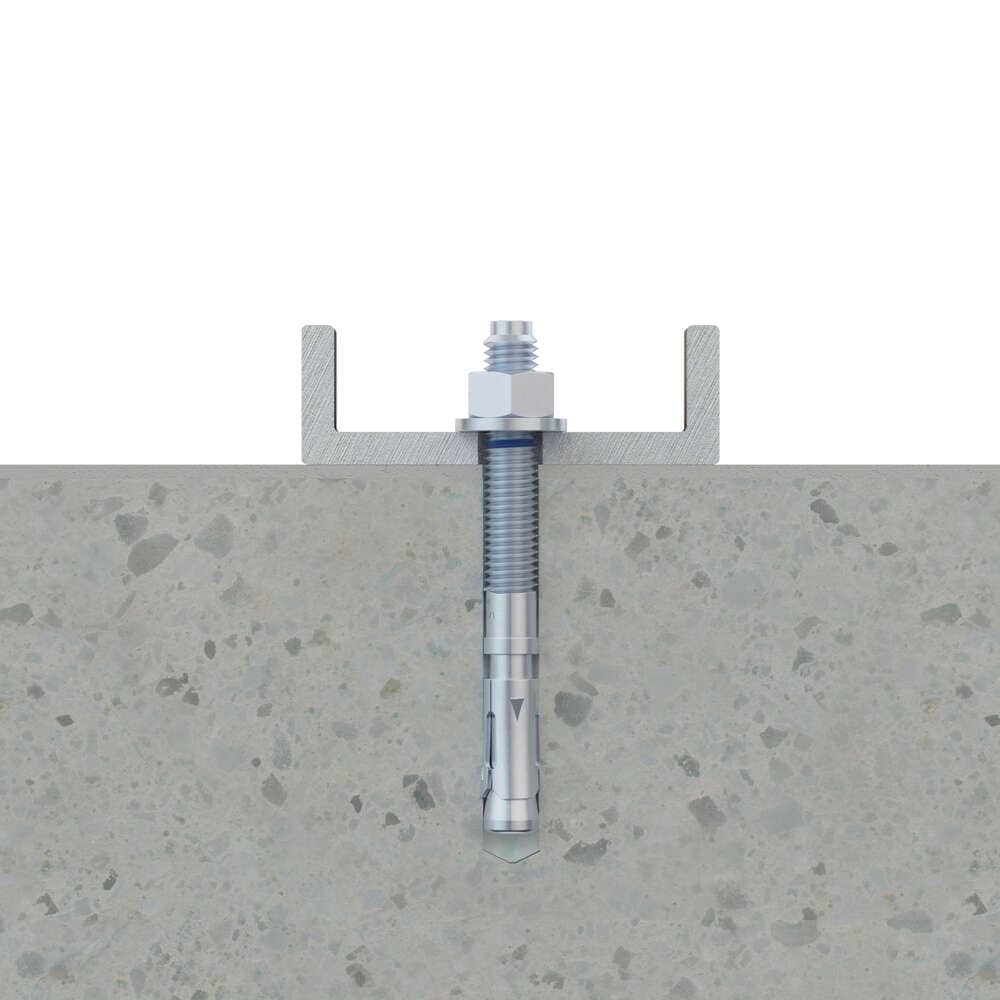

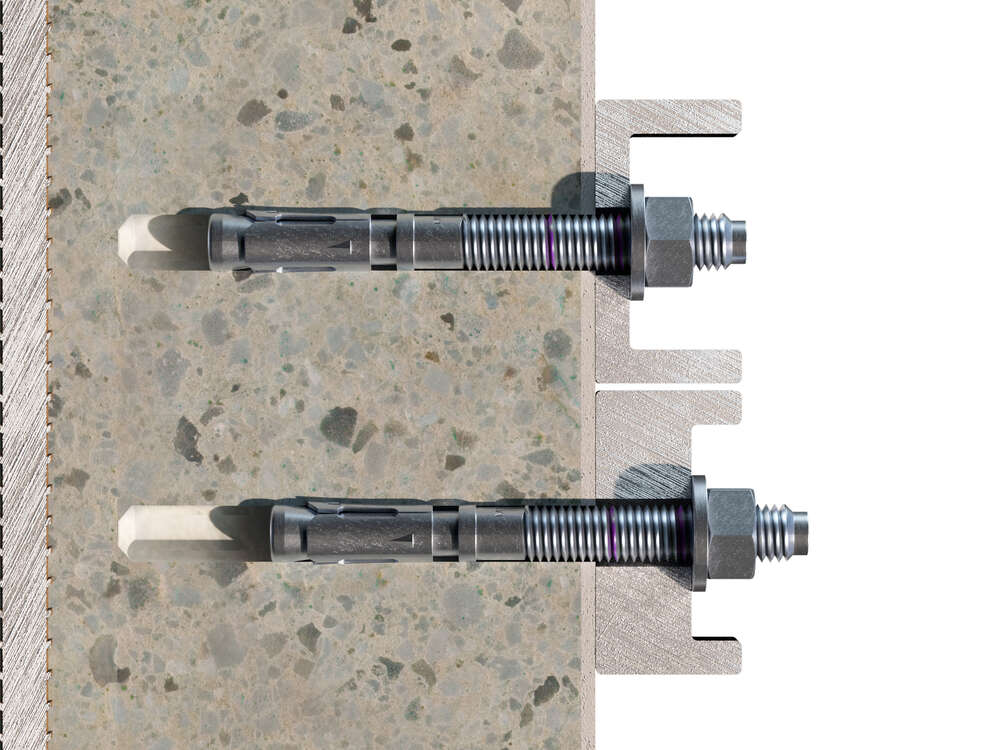

Bolzenanker für hohe Lasten in gerissenem und ungerissenem Beton. ETE Opt. 1 zugelassen für sichere statische Befestigungen in gerissenem und ungerissenem Beton. Schaft aus ATLANTIS C4-M beschichtetem Stahl und Klammer aus rostfreiem Stahl.
Informationen verstärken

Zulassungen und zertifikate

+ info
  • ETA CU 12-0397
  • CE 2012
  • Feuerbeständig
  • VDS
  • SEISMIC C1
  • SEISMIC C1&C2
Produktvarianten
CodeAbmessungKLEMMSTÄRKE [mm]MINDESTBAUTEILDICKEBUCHSTABE (LÄNGE)Stk. VerpackungStk. UmverpackungEANTechnische Info.
APAT08075M8 x 75 Ø89100C1006008423533896520
APAT08095M8 x 95 Ø829100E1006008423533896537
APAT08115M8 x 115 Ø849100G1004008423533896544
APAT10090M10 x 90 Ø1010120E1004008423533896551
APAT10105M10 x 105 Ø1025120F503008423533896568
APAT10115M10 x 115 Ø1035120G502008423533896575
APAT10135M10 x 135 Ø1055120H502008423533896582
APAT10165M10 x 165 Ø1085120K502008423533896599
APAT10185M10 x 185 Ø10105120L501508423533896605
APAT12100M12 x 100 Ø124140E502008423533896612
APAT12110M12 x 110 Ø1214140F502008423533896629
APAT12120M12 x 120 Ø1224140G502008423533896636
APAT12130M12 x 130 Ø1234140H502008423533896643
APAT12150M12 x 150 Ø1254140I501008423533896650
APAT12180M12 x 180 Ø1284140L501508423533896667
APAT12200M12 x 200 Ø12104140M501508423533896674
APAT16145M16 x 145 Ø1628170I251008423533896681
APAT16175M16 x 175 Ø1658170K25508423533896698
APAT16220M16 x 220 Ø16103170O25508423533896704
APAT20170M20 x 170 Ø2032200K20408423533896711
APAT20200M20 x 200 Ø2062200N20408423533896728
