Produkte / Montagesysteme / Installationssysteme und Befestigungen für Solarmodule / ISF-FR / Produkte / KFS-MA
KFS-MA
KFS-MA
KFS-MA

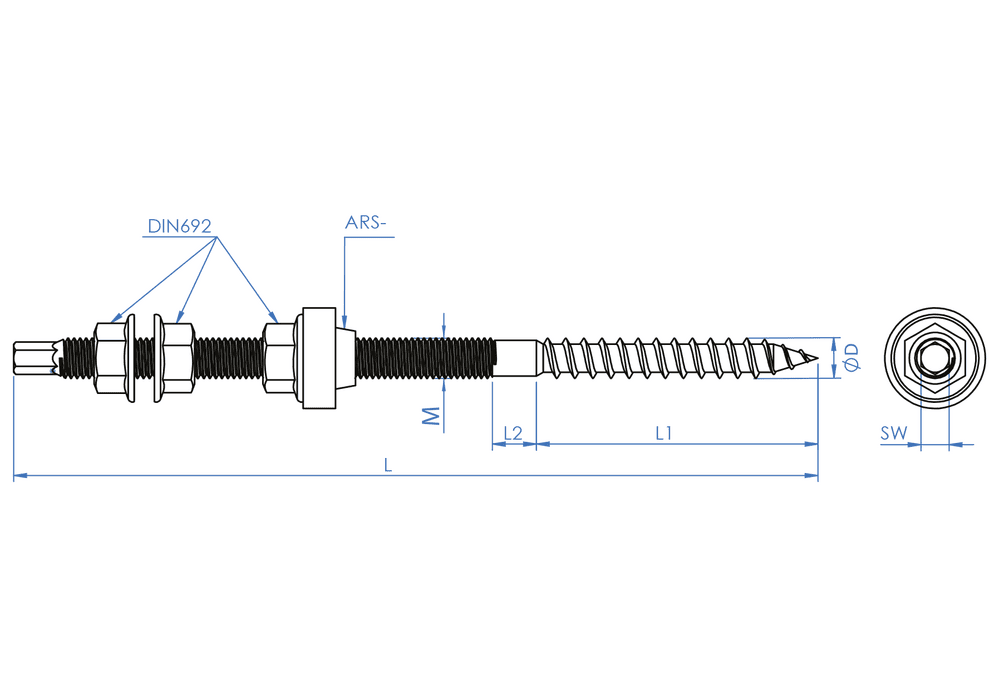

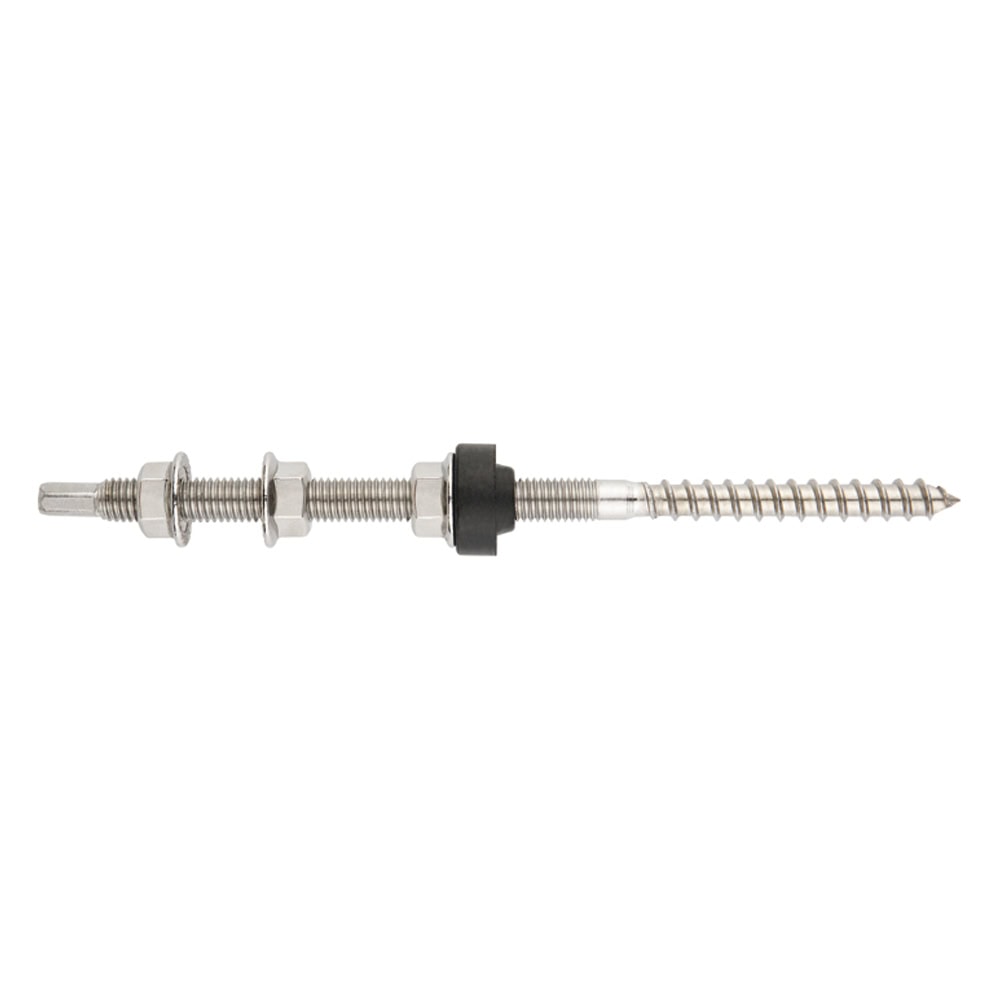

Doppelgewindeschraube für Holz KFS-MA

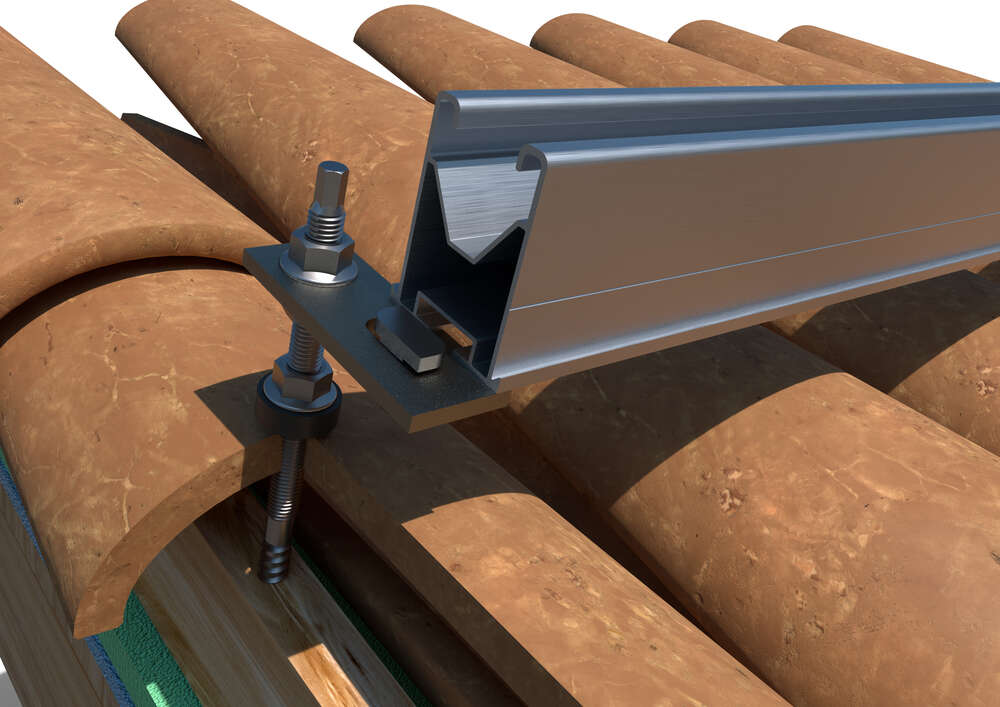

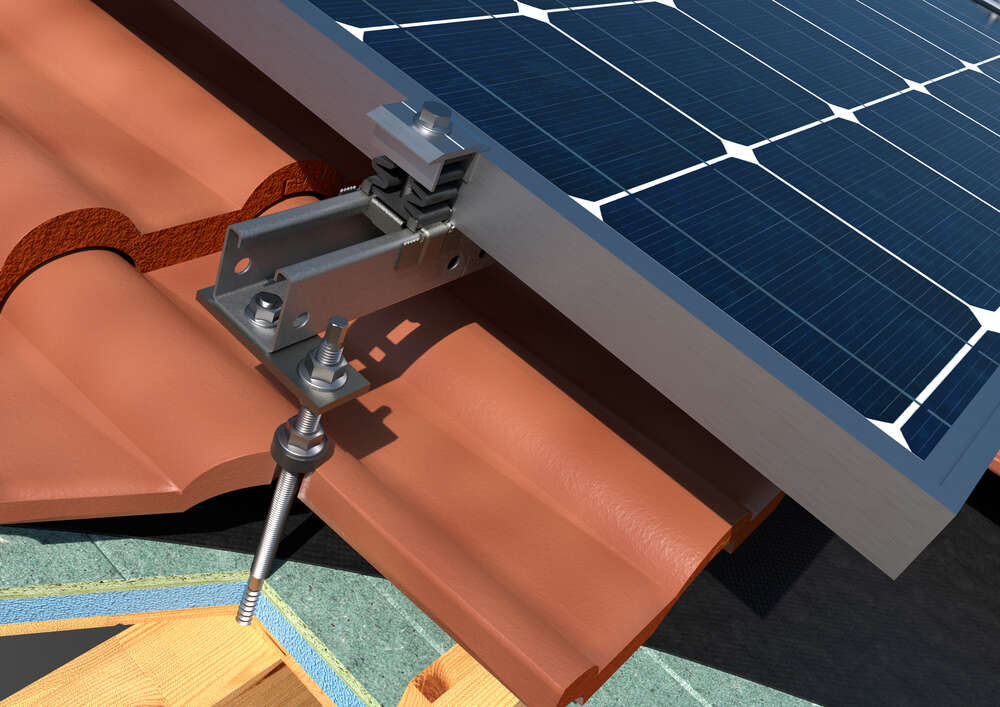

Doppelgewindeschraube für die Befestigung von Solarmodulkonstruktionen an Holzunterkonstruktionen unter dem Dach. Sie hat ein sechseckiges Ende für die Montage mit einem Schraubenzieher. Sie enthält 3 Gewindemuttern nach DIN-6923 und eine EPDM-Unterlegscheibe, um die Wasserdichtigkeit zu gewährleisten. Die Schraube und die Muttern sind aus rostfreiem Stahl A2 gefertigt.
Informationen verstärken
Produktvarianten
CodeAbmessungSCHLÜSSELWEITE [SW]Stk. VerpackungStk. UmverpackungEANTechnische Info.
KFSMA1020010 x 2007251508423533861634
KFSMA10200210 x 2007208423533911216
KFSMA10201010 x 200710408423533911209
KFSMA1025010 x 2507251508423533861641
KFSMA10250210 x 2507208423533911230
KFSMA10251010 x 250710208423533911223
KFSMA1230012 x 300925758423533897763
KFSMA1235012 x 350925758423533897756
