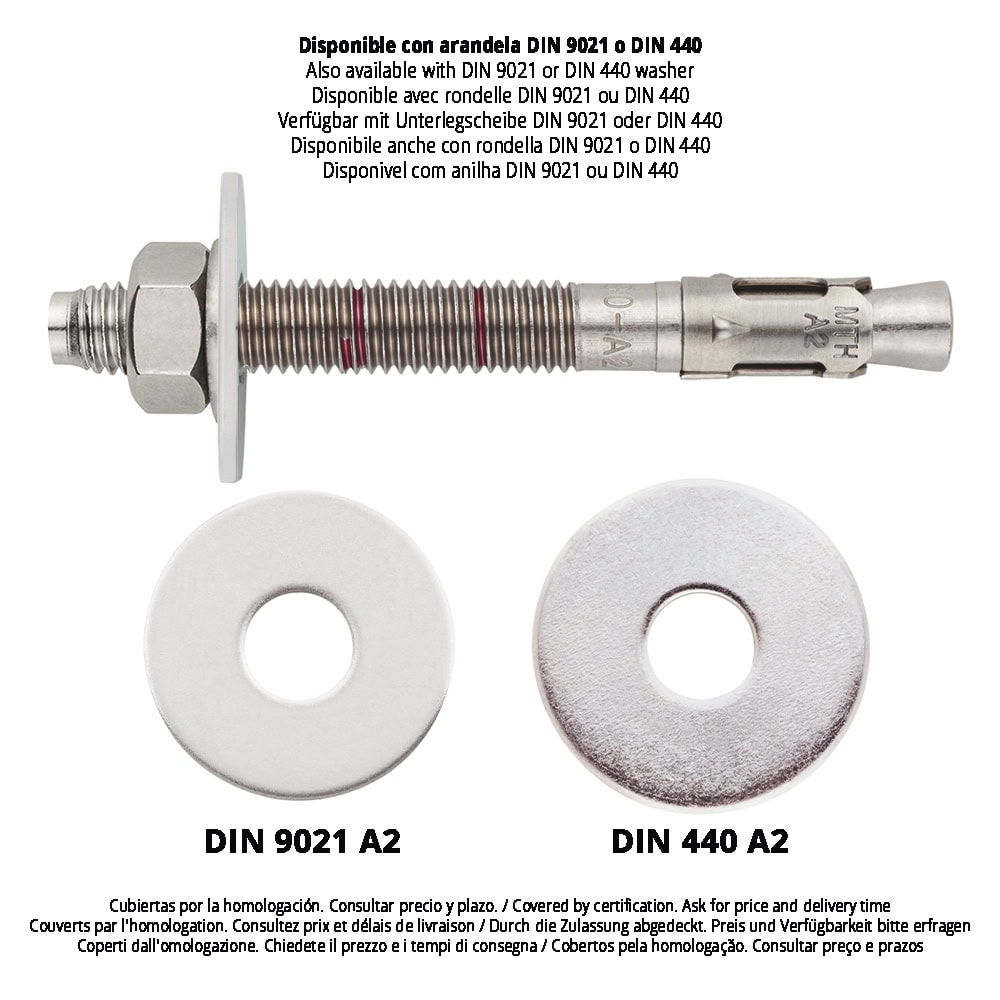

Bolzenanker Rostfreie MTH-A2

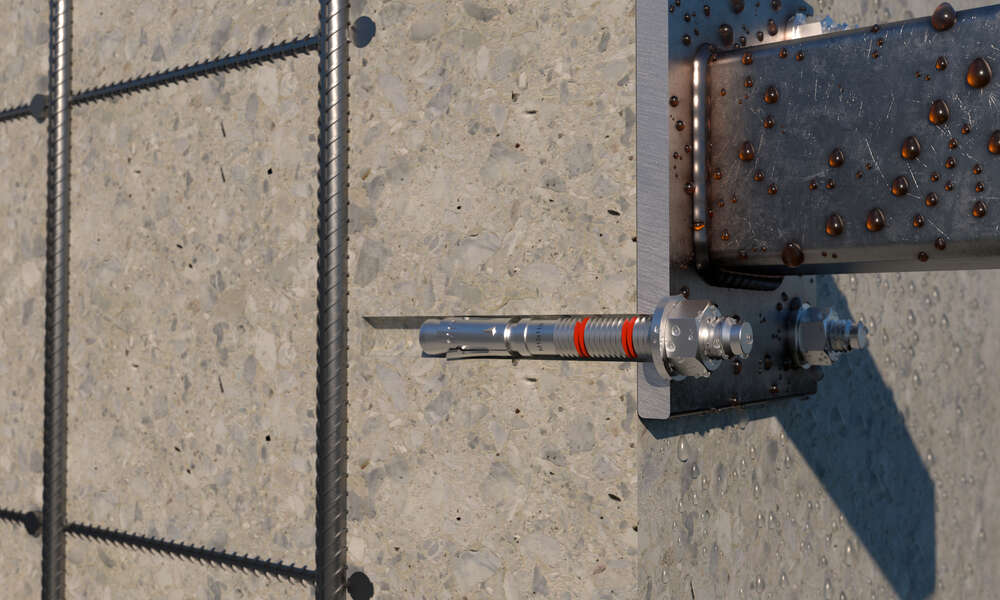

Spreizdübel, mit Außengewinde, für hohe Lasten in ungerissenem Beton. ETE Opt. 7 für statische Anwendungen. Schaft und Clip aus rostfreiem Stahl A2, der die Korrosionsbeständigkeit des Dübels gewährleistet.
Informationen verstärken

Zulassungen und zertifikate

+ info
  • ETA UN 05-0242
  • CE 2005
  • Feuerbeständig
Nicht zugelassene Größe
Produktvarianten

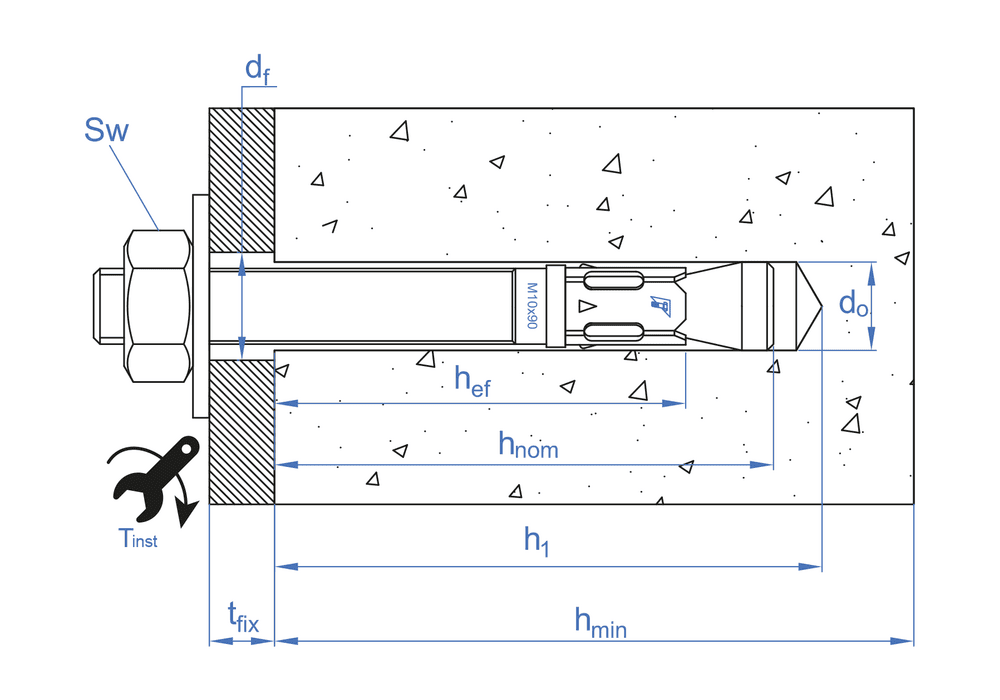

CodeAbmessungKLEMMSTÄRKE [mm]MINDESTBAUTEILDICKEBUCHSTABE (LÄNGE)Stk. VerpackungStk. UmverpackungEANTechnische Info.
MI06045 M6 x 45 Ø61100A2001.2008423533019103
MI06060M6 x 60 Ø62100B2001.2008423533029683
MI06080M6 x 80 Ø622100D2001.2008423533019202
MI06120M6 x 120 Ø662100G1006008423533072702
MI06140M6 x 140 Ø682100I1006008423533072801
MI06160M6 x 160 Ø6102100J1004008423533072832
MI06170M6 x 170 Ø6112100K1004008423533766199
MI06180M6 x 180 Ø6122100L1003008423533122643
MI08050 M8 x 50 Ø84100A1008008423533019301
MI08075M8 x 75 Ø85100C1006008423533019400
MI08090M8 x 90 Ø820100E1006008423533019509
MI08115M8 x 115 Ø845100G1004008423533019608
MI10070M10 x 70 Ø103100C1004008423533019707
MI10090M10 x 90 Ø1010110E1004008423533019806
MI10120M10 x 120 Ø1040110G503008423533019905
MI10150M10 x 150 Ø1070110I502008423533020000
MI12075 M12 x 75 Ø125100C503008423533020109
MI12090M12 x 90 Ø1213120D502008423533020208
MI12110M12 x 110 Ø1218130F502008423533020307
MI12140M12 x 140 Ø1248130I502008423533025623
MI16090 M16 x 90 Ø164100D251508423533579621
MI16145M16 x 145 Ø1623168I251008423533020406
MI16170M16 x 170 Ø1648168K25758423533071002
MI20120 M20 x 120 Ø205145G20408423533579638
MI20170M20 x 170 Ø2023206K20408423533071200
MI20220M20 x 220 Ø2073206O20408423533071309
