Produkte / Schrauben / Metrische Schrauben / DIN-125 / Produkte / DIN-125 A2
DIN-125 A2
DIN-125 A2
DIN-125 A2

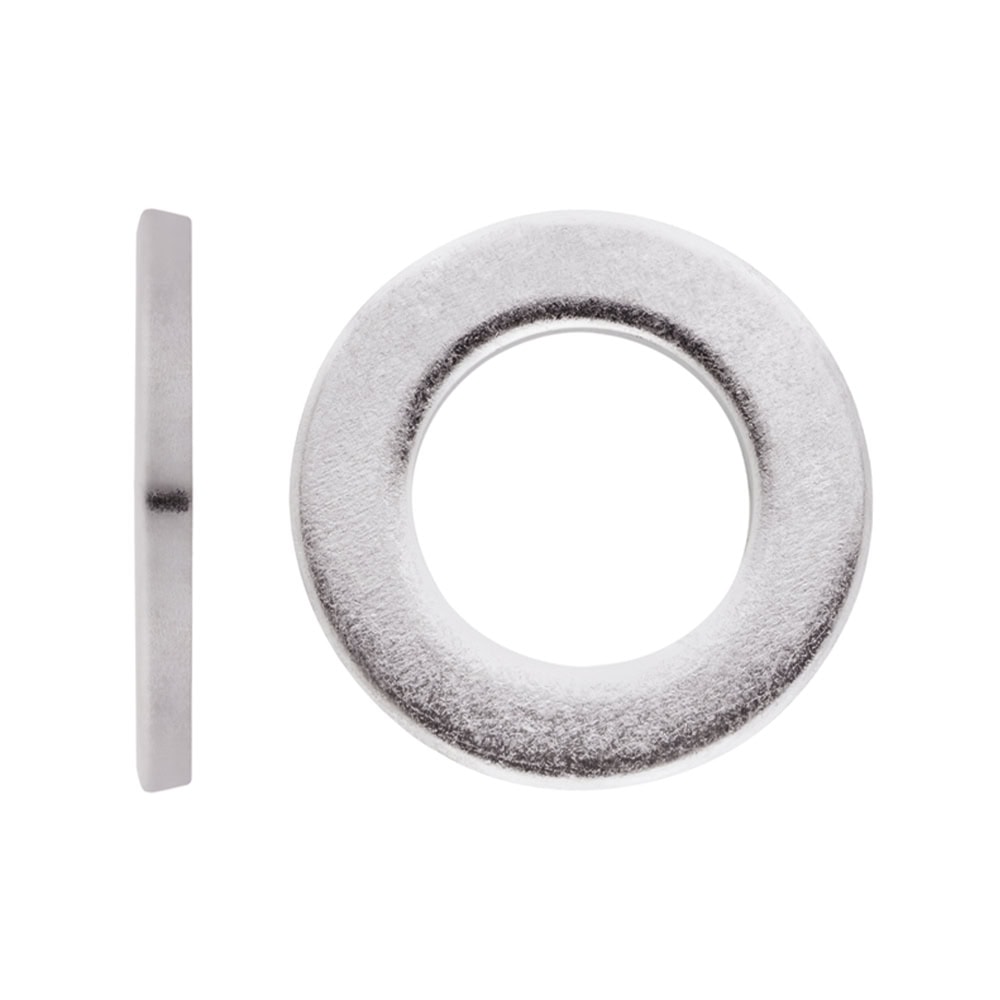

Unterlegscheibe aus nichtrostendem Stahl DIN-125 A2

Scheibe DIN-125, rostfrei, mit flachem Körper. Sie dient zur Verstärkung von Befestigungen mit genormten Schrauben, indem sie die Verbindungsfläche vergrößert und die Anzugskraft verteilt. Sie wird in der Regel bei der Verbindung von Blechen oder der Montage von Platten verwendet. Sie besteht aus rostfreiem Stahl A2, einem Material, das das Teil vor Korrosion schützt.
Produktvarianten
CodeAbmessungStk. VerpackungStk. UmverpackungEANTechnische Info.
D125IM04M450022.5008423533836403
D125IM05M550022.5008423533836410
D125IM06M650022.5008423533836427
D125IM08M825011.2508423533836434
D125IM10M102506.0008423533836441
D125IM12M122503.0008423533836458
D125IM14M142002.4008423533836465
D125IM16M161002.4008423533836472
D125IM18M181001.6008423533836489
D125IM20M20501.2008423533836496
D125IM22M22501.2008423533836502
D125IM24M24506008423533836519
