Produkte / Schrauben / Dach-und Fassadenschrauben / ABE BIMETAL / Produkte / ABE BIMETAL + ARVUL A2
ABE BIMETAL + ARVUL A2
ABE BIMETAL + ARVUL A2
ABE BIMETAL + ARVUL A2
ABE BIMETAL + ARVUL A2
ABE BIMETAL + ARVUL A2

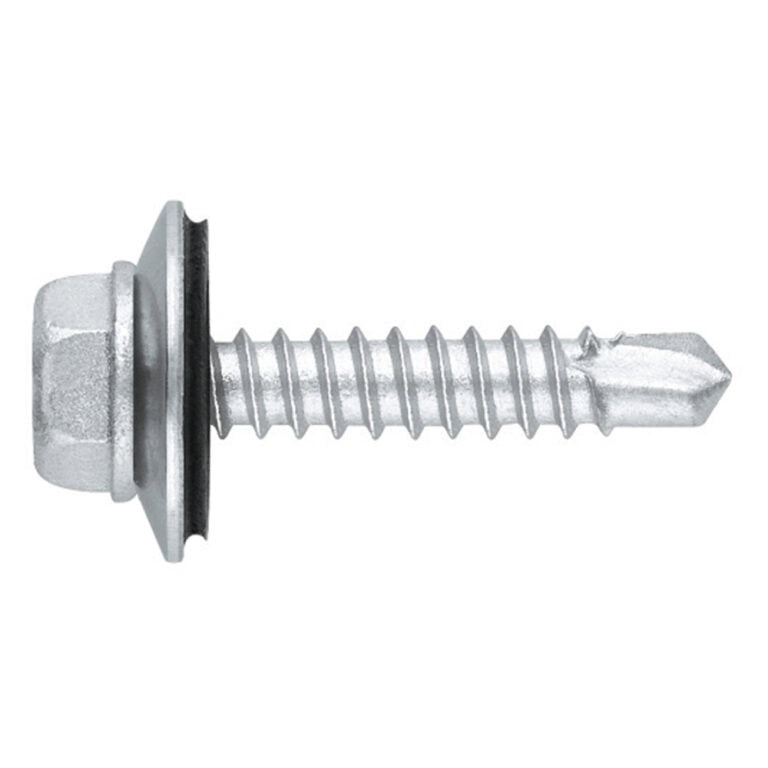

Selbstbohrende Bimetallschraube mit Unterlegscheibe ABE BIMETAL + ARVUL A2

Selbstbohrende Schraube mit vulkanisierter Unterlegscheibe aus Stahl-EPDM. Sechskantkopf mit geprägter Unterlegscheibe. Korrosionsbeständiger Schaft aus Edelstahl A2 mit gehärteter Spitze zum Bohren und Gewindeschneiden in Stahl. Die Bohrerspitze ermöglicht direktes Bohren in das Material. Die vulkanisierte EPDM-Unterlegscheibe gewährleistet die Dichtheit der Verbindungen. Sie ist mit einer Atlantis C3-H-Beschichtung versehen.
Produktvarianten

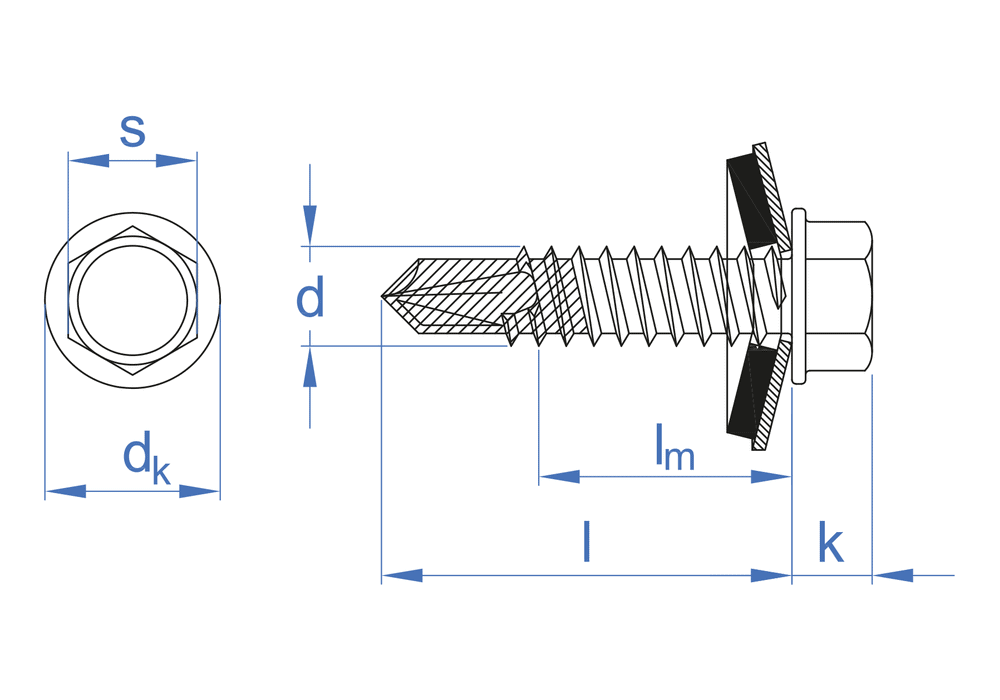

CodeAbmessungKLEMMSTÄRKE [mm]Nº ANTRIEBBOHRLEISTUNGStk. VerpackungStk. UmverpackungEANTechnische Info.
BIE1648254,8 x 25 P16781,75-4,405002.0008423533617651
BIE1655255,5 x 25 P16381,75-5,255002.0008423533617668
BIE1655325,5 x 32 P161081,75-5,255002.0008423533617675
BIE1655385,5 x 38 P161681,75-5,255001.5008423533617682
BIE1655505,5 x 50 P162881,75-5,255001.5008423533617699
BIE1655585,5 x 58 P163681,75-5,252501.5008423533617705
BIE1655655,5 x 65 P164381,75-5,252501.5008423533617712
BIE1655805,5 x 80 P165881,75-5,252501.0008423533617729
BIE1663256,3 x 25 P165102,50-6,005002.0008423533617736
