Produkte / Verankerungen / Hohlraum-Befestigung / IN / Produkte / IN-SI
IN-SI
IN-SI
IN-SI

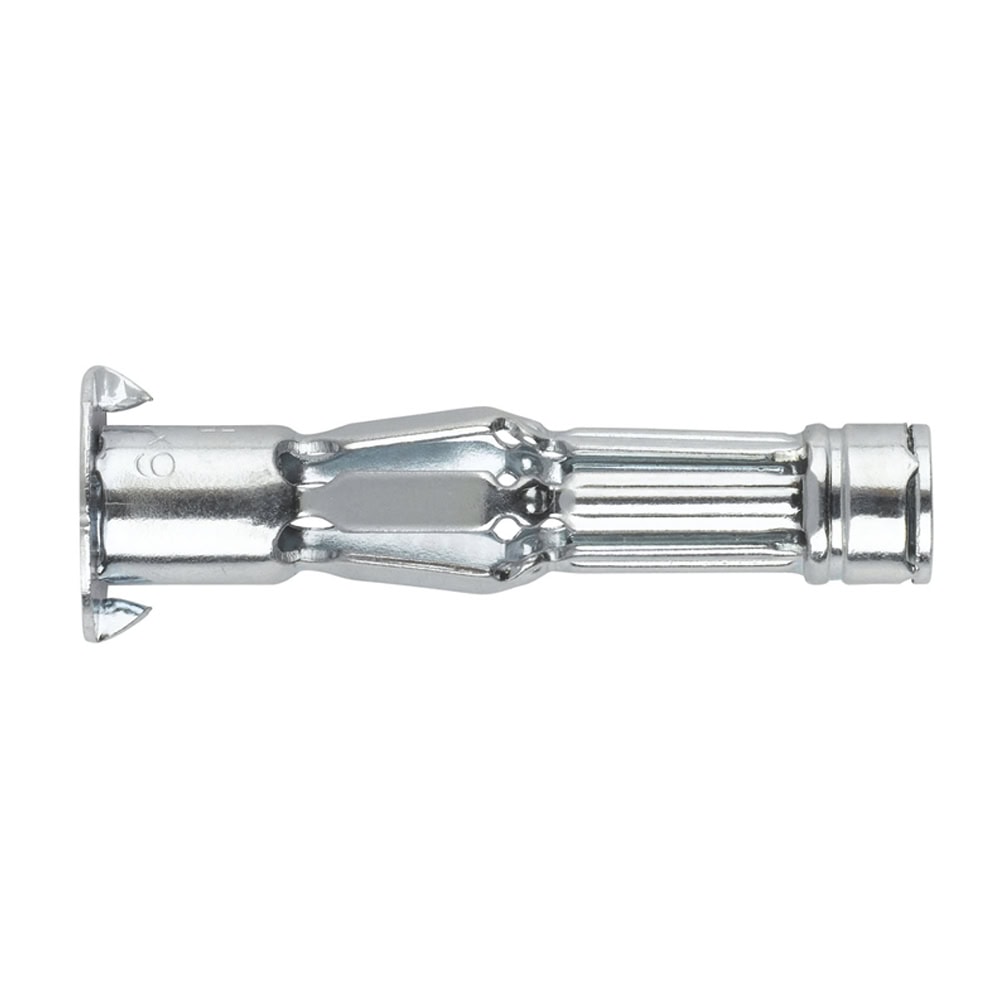

Indemoll-Anker ohne Schraube IN-SI

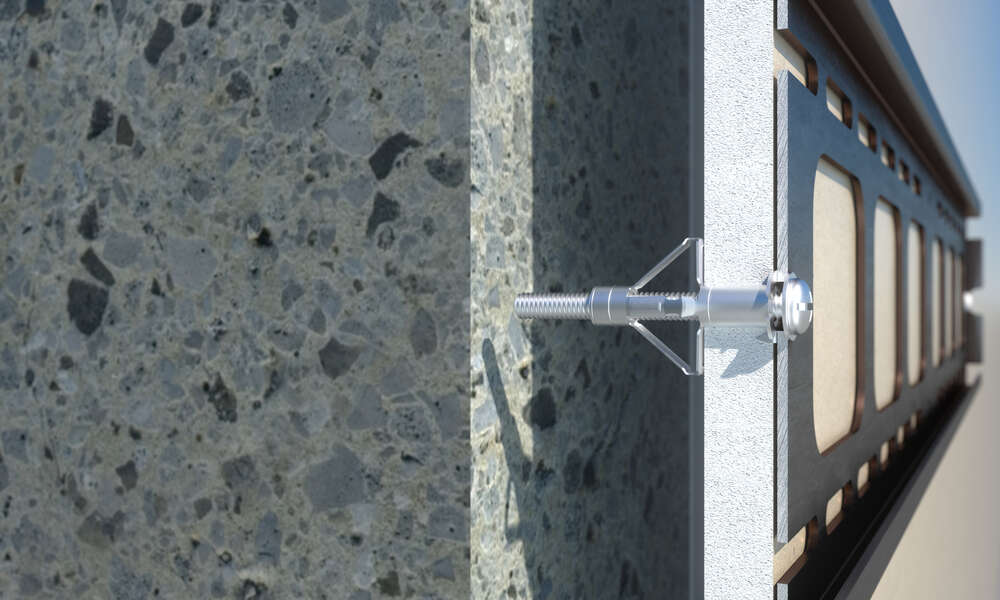

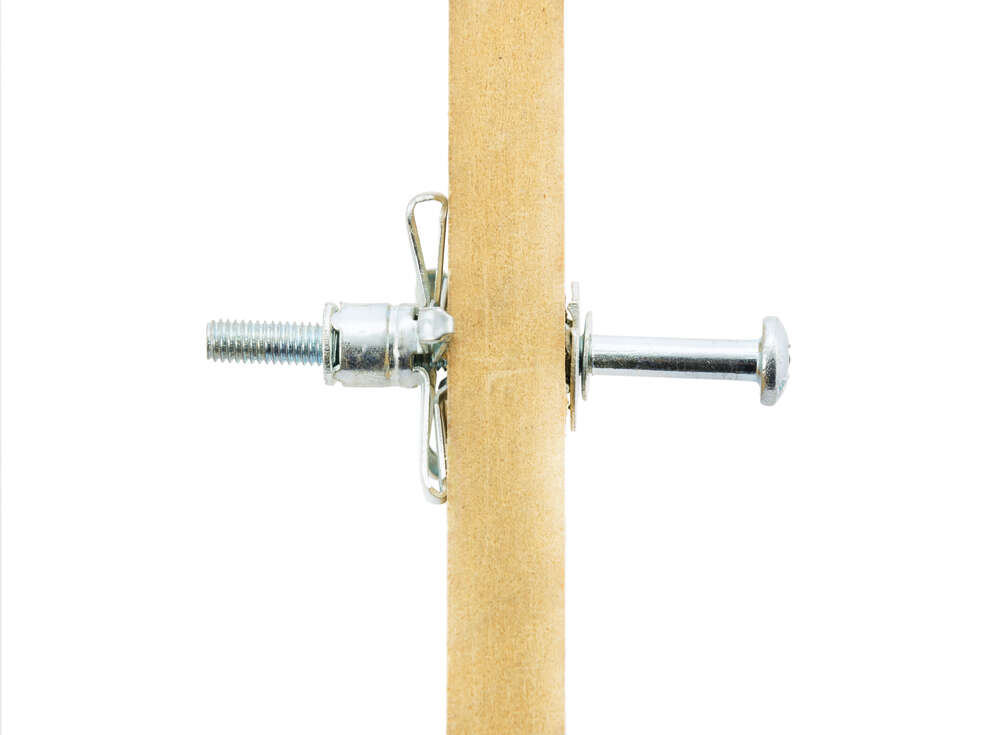

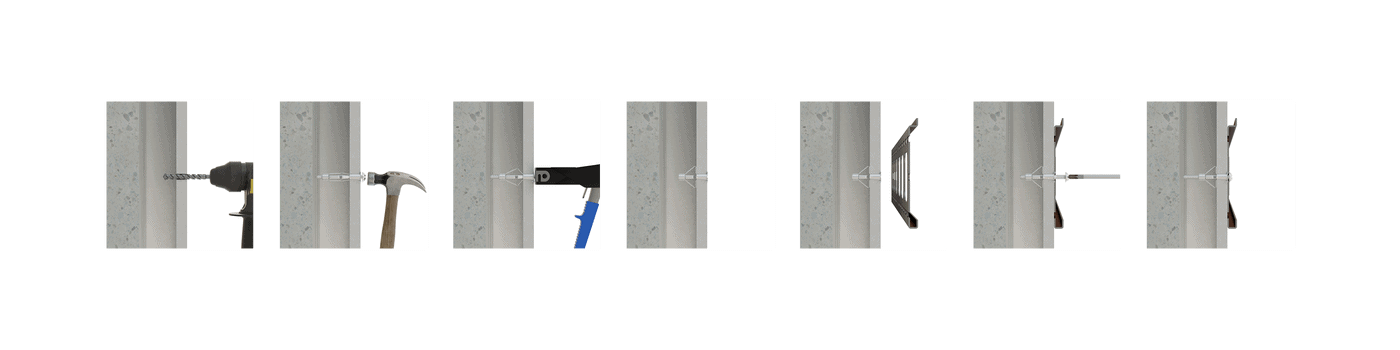

Spreizdübel aus Metall für hohle Materialien. Er ist für die Befestigung von leichten Elementen auf Hohlkörpern wie Gipskarton, Ziegeln oder Hohlbeton bestimmt. Erfordert die Verwendung einer Schraube. Er wird sicher und schnell mit einer Montagepistole montiert. Hergestellt aus verzinktem Stahl.
Produktvarianten

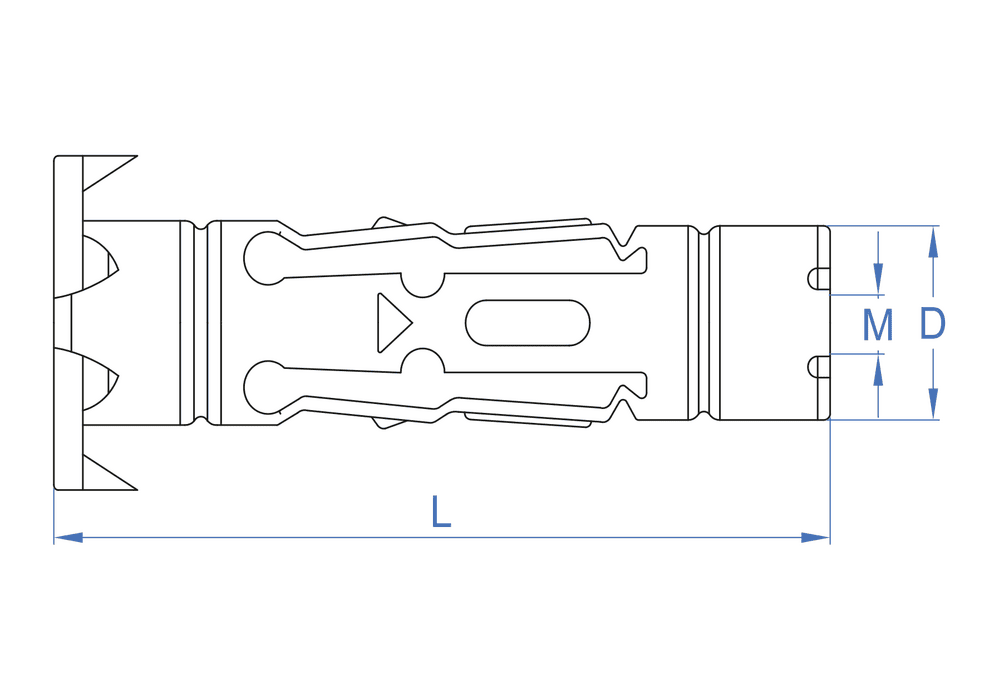

CodeAbmessungKLEMMSTÄRKE [mm]MINDESTBAUTEILDICKEStk. VerpackungStk. UmverpackungEANTechnische Info.
INSI421M4 x 21 Ø 817 -hmin1-51002.4008423533076687
INSI432M4 x 32 Ø 822 -hmin3-101002.4008423533076717
INSI438M4 x 38 Ø 830 -hmin9-161002.4008423533723154
INSI537M5 x 37 Ø 1026 -hmin5-141001.2008423533076793
INSI552M5 x 52 Ø 1042 -hmin6-181006008423533076823
INSI565M5 x 65 Ø 1055 -hmin16-331006008423533076847
INSI637M6 x 37 Ø 1225 -hmin5-131001.2008423533076915
INSI652M6 x 52 Ø 1238 -hmin6-171006008423533076939
INSI665M6 x 65 Ø 1249 -hmin14-321006008423533076977
INSI865M8 x 65 Ø 1447 -hmin17-331004008423533077028
