Produtos / Sistemas de Instalação / Sistemas de instalação e fixações para painéis solares / ISF-KT / KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC
KT-PSC

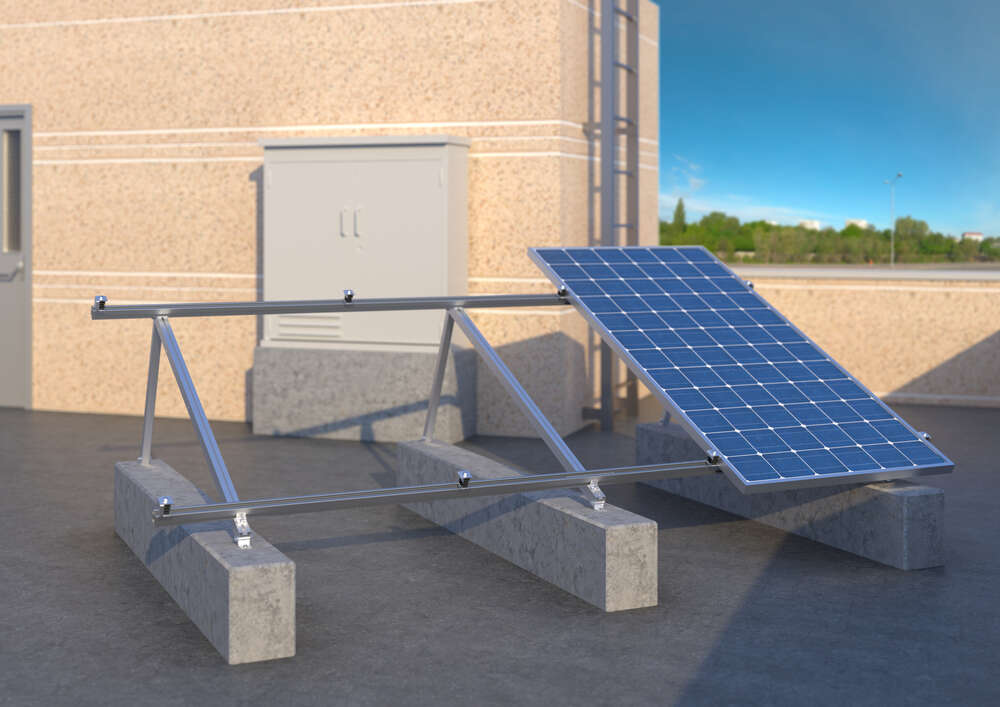

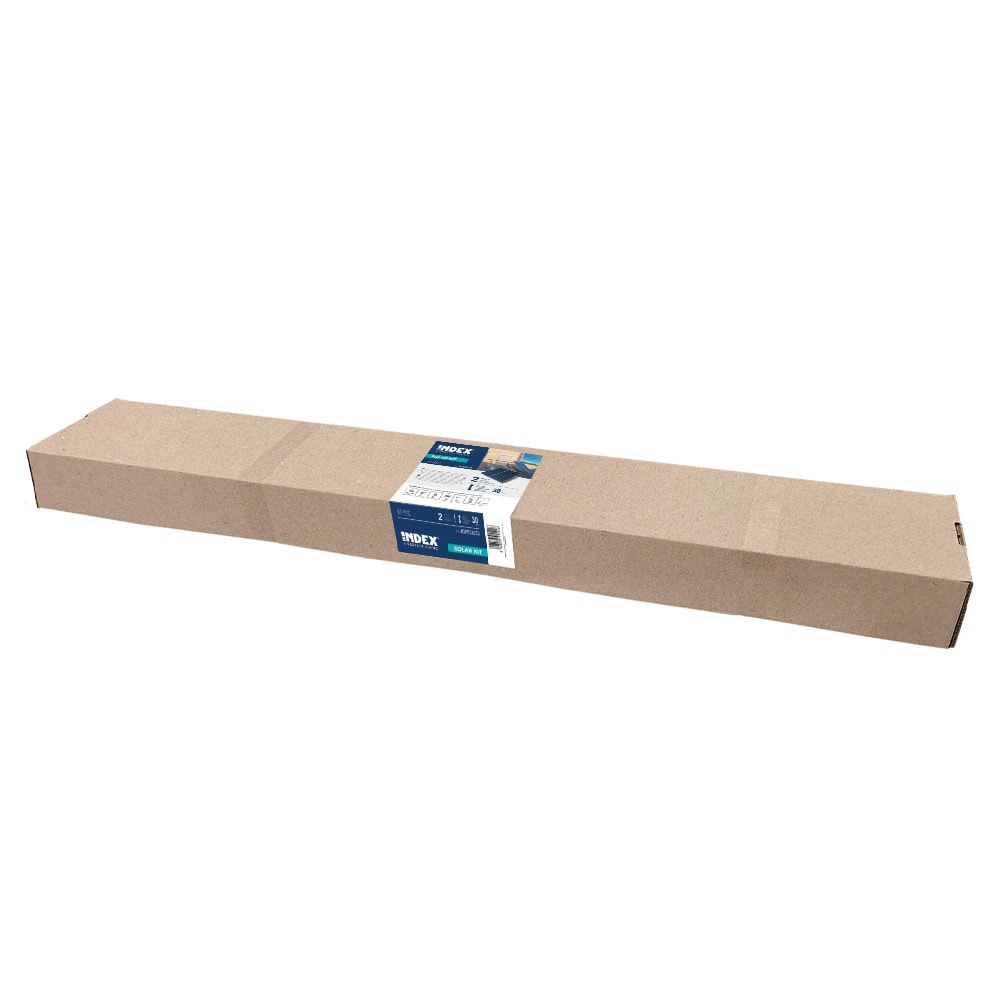

Estrutura triangular KT-PSC

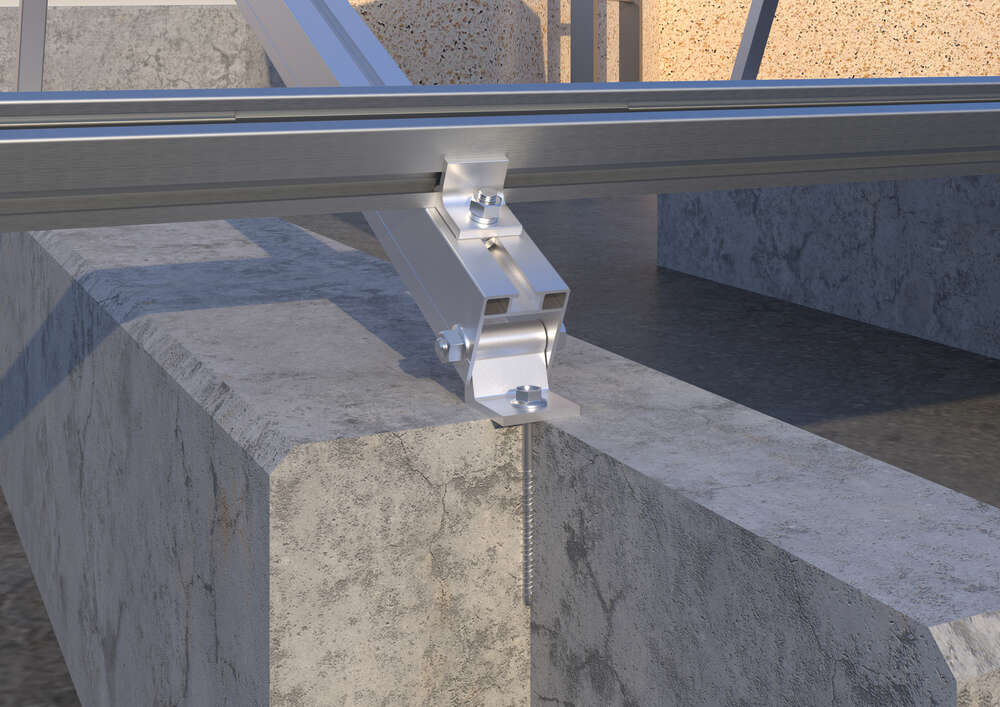

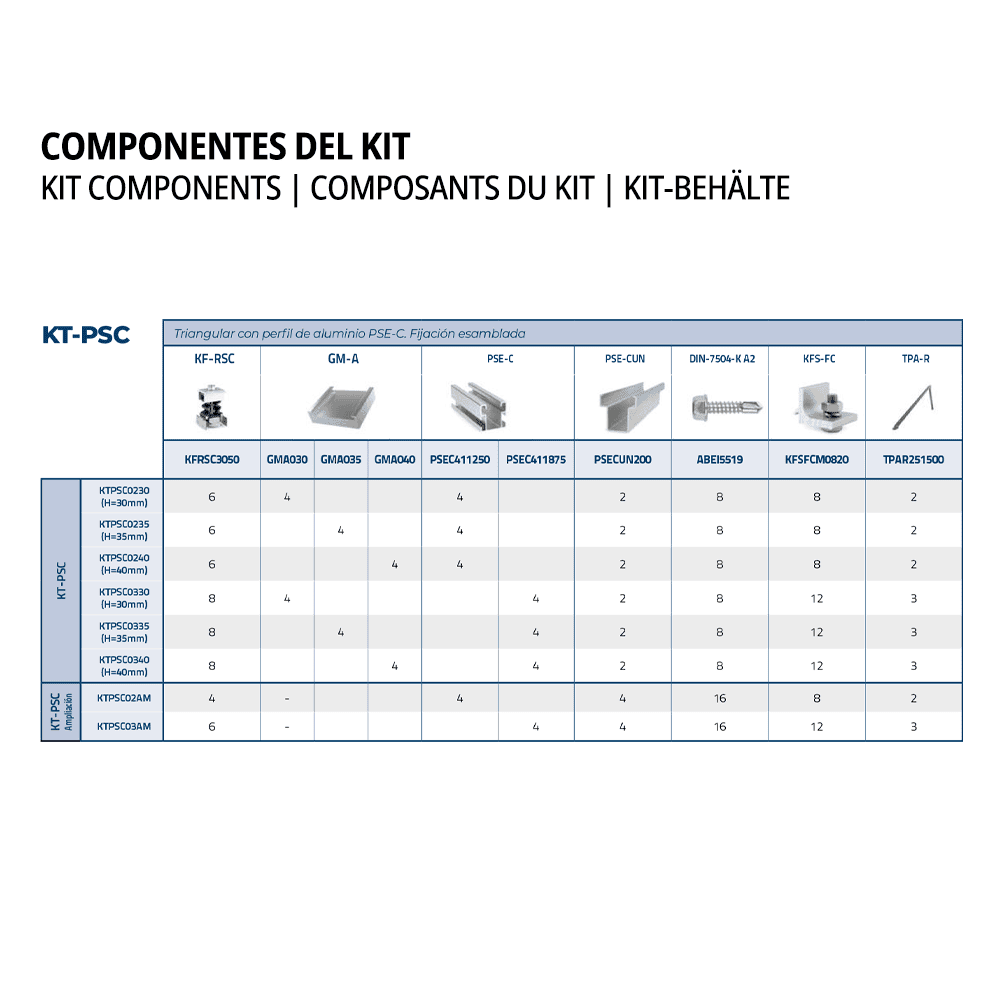

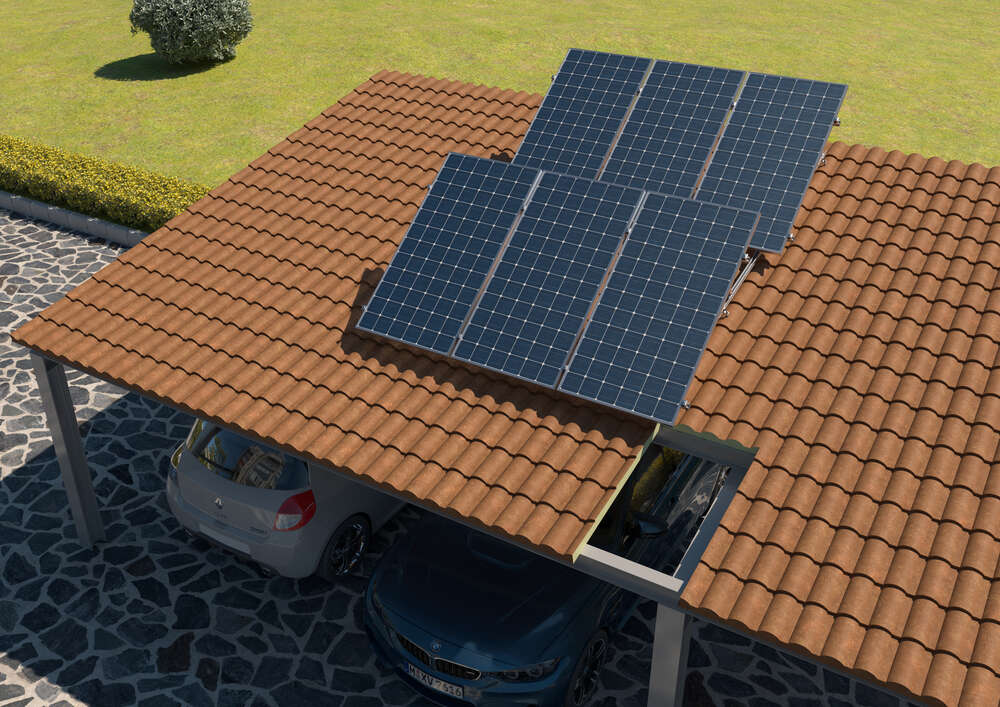

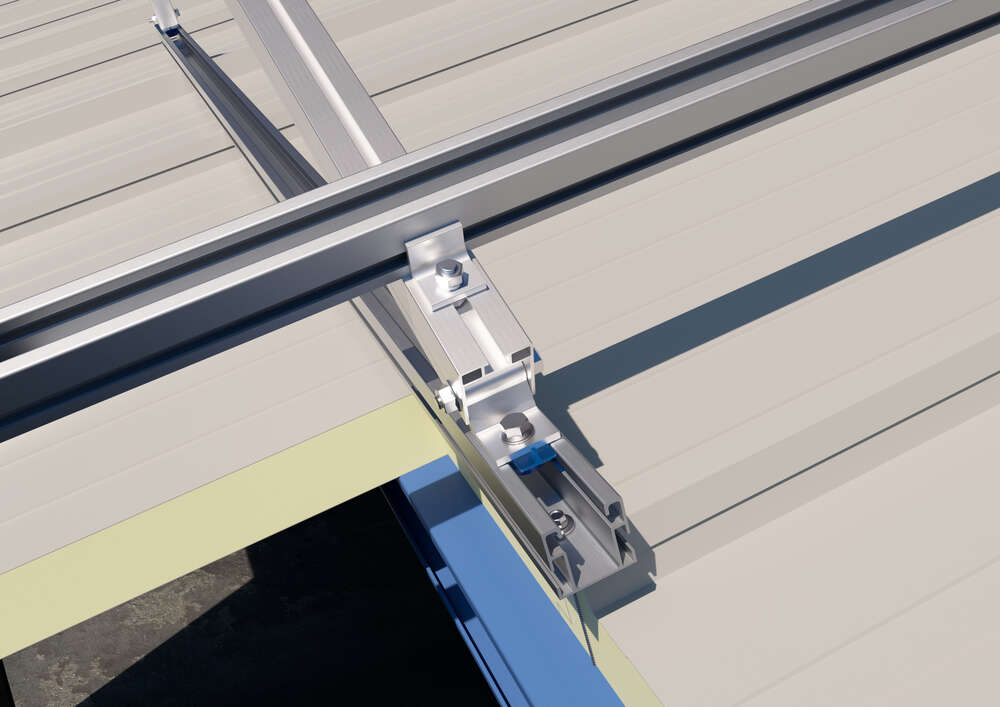

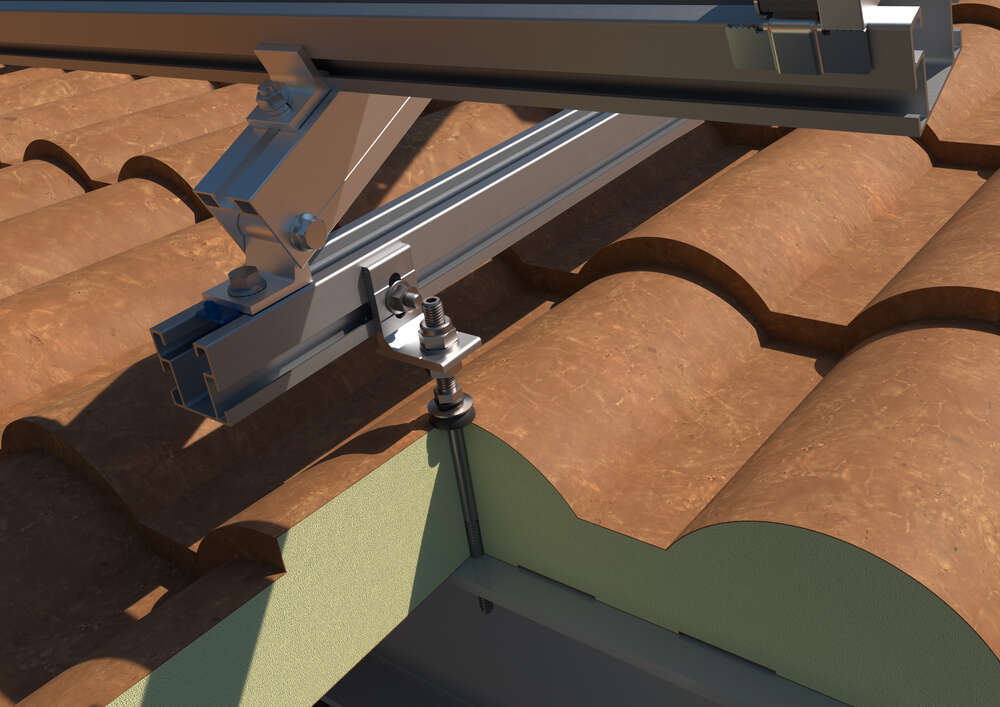

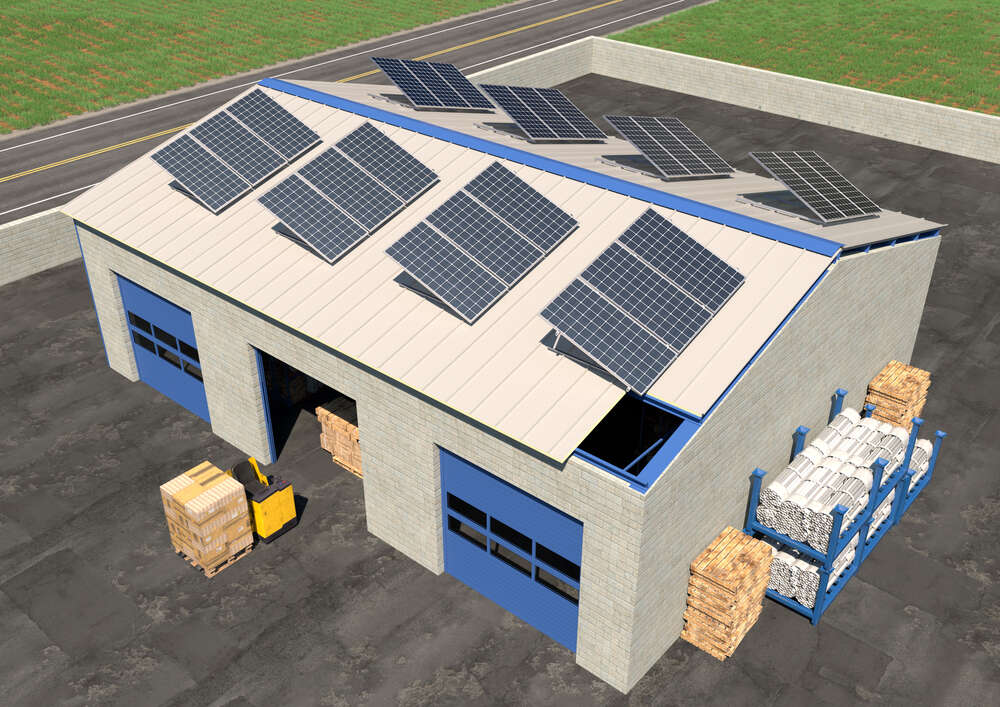

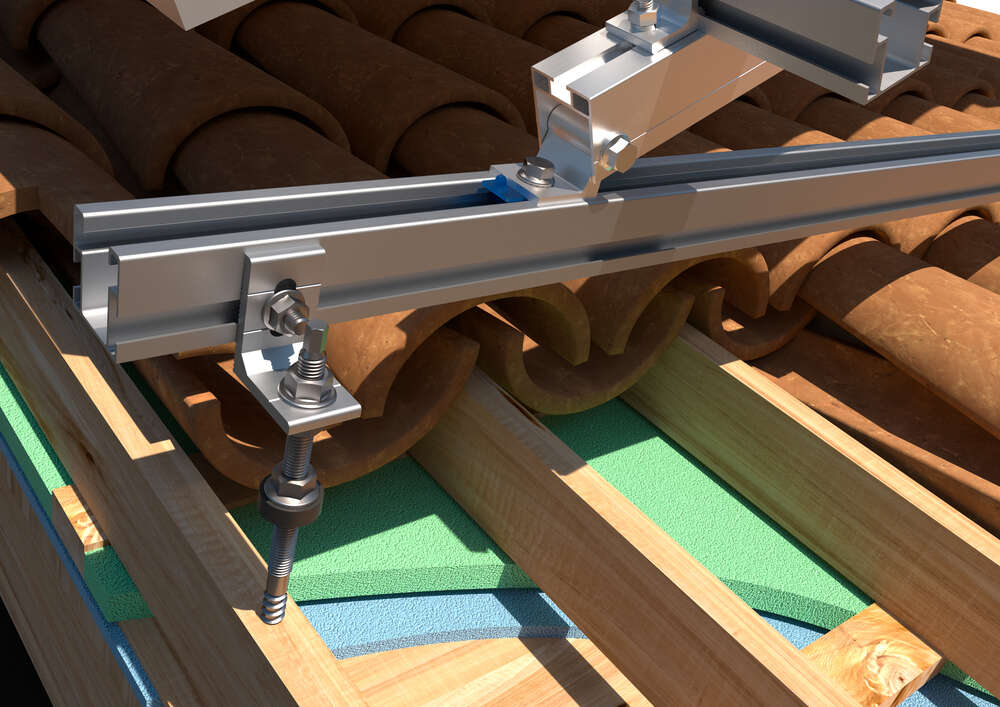

Kit de montagem para a instalação de uma estrutura triangular para painéis solares. Permite a fixação dos painéis em telhados planos ou de baixa inclinação. A estrutura triangular pode ser ancorada à subestrutura sob o telhado ou montada numa estrutura auxiliar. O kit foi concebido de acordo com o sistema de montagem coplanar ST-PSC. Inclui triângulos ajustáveis TPA-R; perfis de alumínio PSE-C para montagem contínua; conectores para unir os triângulos aos perfis KFS-FC; peças de ligação entre os perfis PSE-CUN com parafusos DIN-7504-K A2; grampos de fixação rápida KFR-SC e medidores GM-A. Estão disponíveis vários modelos, com a possibilidade de instalar 2 ou 3 placas.
Amplie as informações

Aprovações e certificados

+ info
  • CE 2024
Variantes do produto
CódigoNº MódulosC Placa [mm]InclinaçãoUds. CaixaEANInfo. Técnica
KTPSC023023025º/30º/35º18423533915146
KTPSC023523525º/30º/35º18423533915153
KTPSC024024025º/30º/35º18423533915160
KTPSC02AM2025º/30º/35º18423533915177
KTPSC033033025º/30º/35º18423533915184
KTPSC033533525º/30º/35º18423533915191
KTPSC034034025º/30º/35º18423533915207
KTPSC03AM3025º/30º/35º18423533915214

Solicitar mais informações
