Estrutura coplanar com guias perfuradas KC-GPX

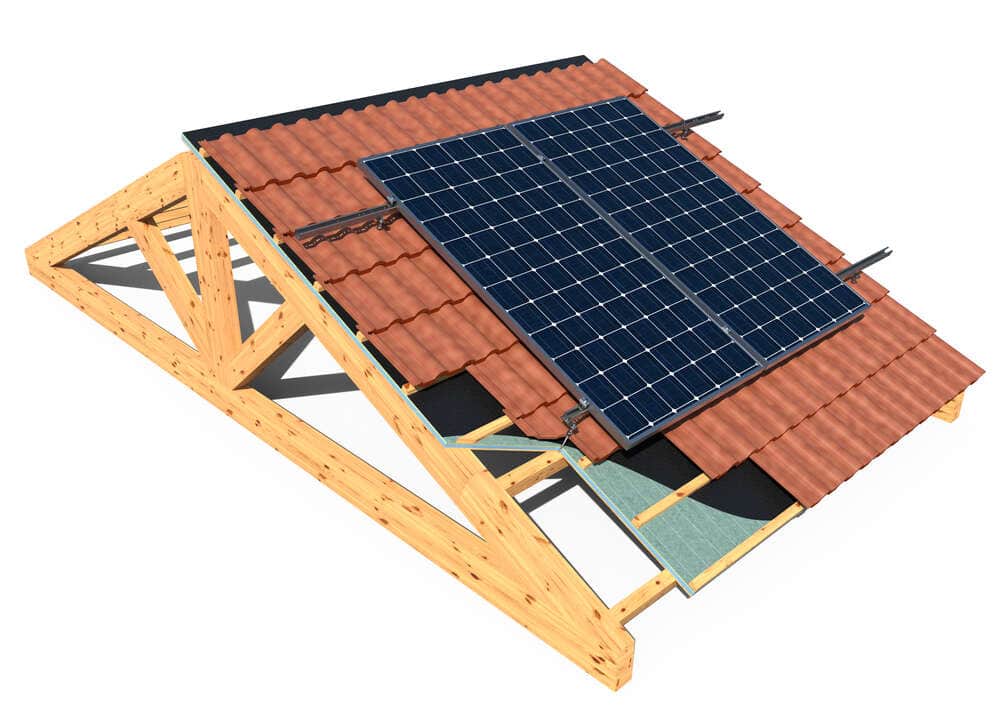

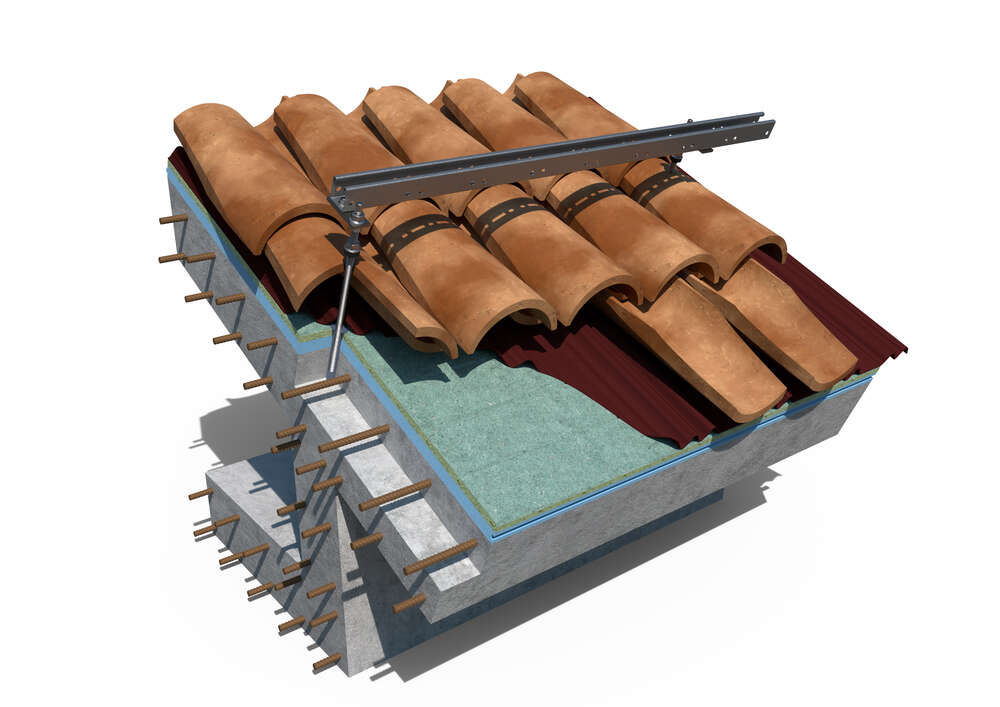

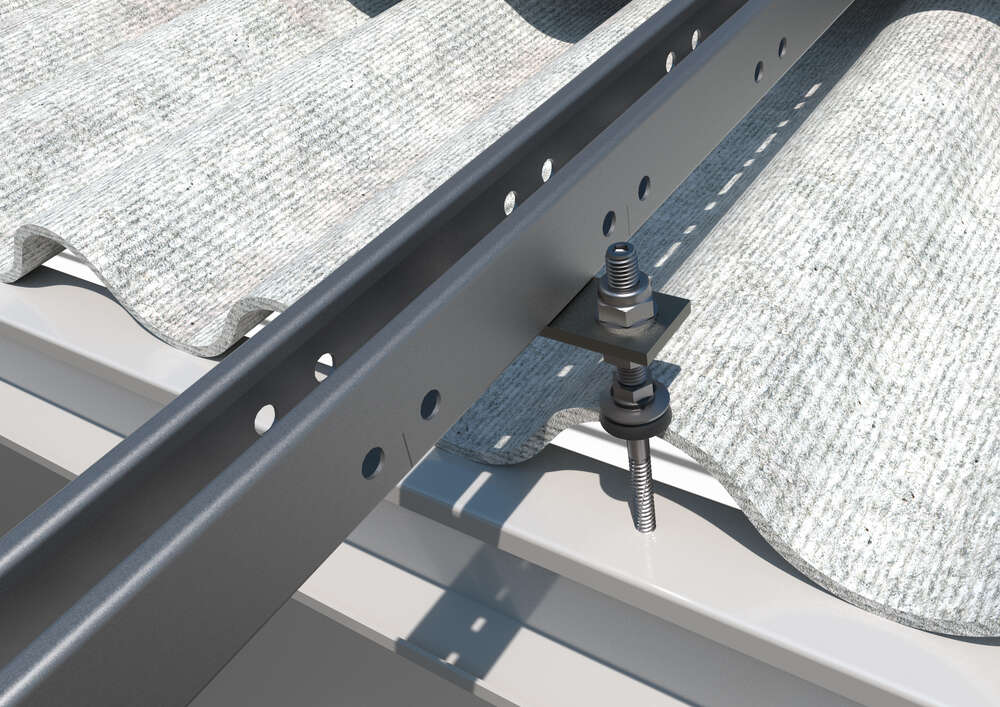

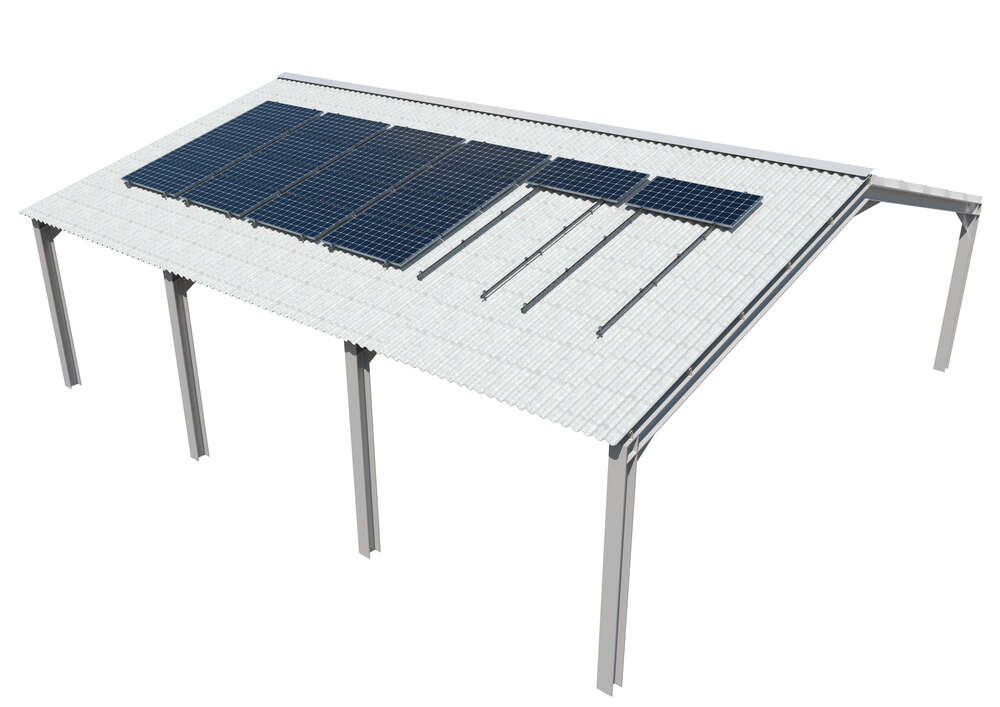

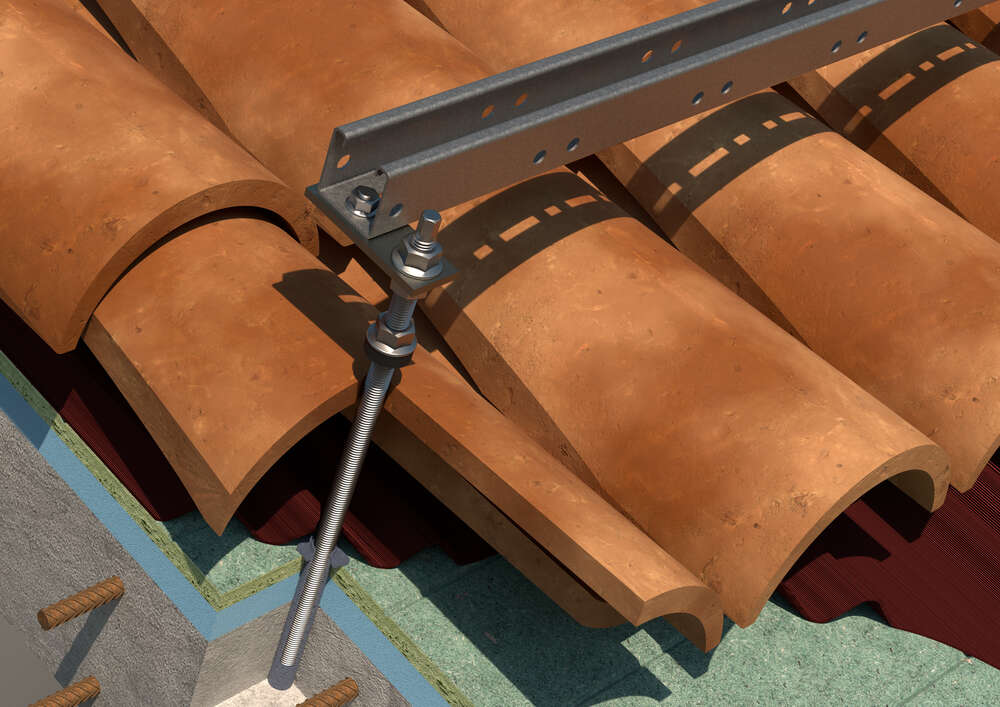

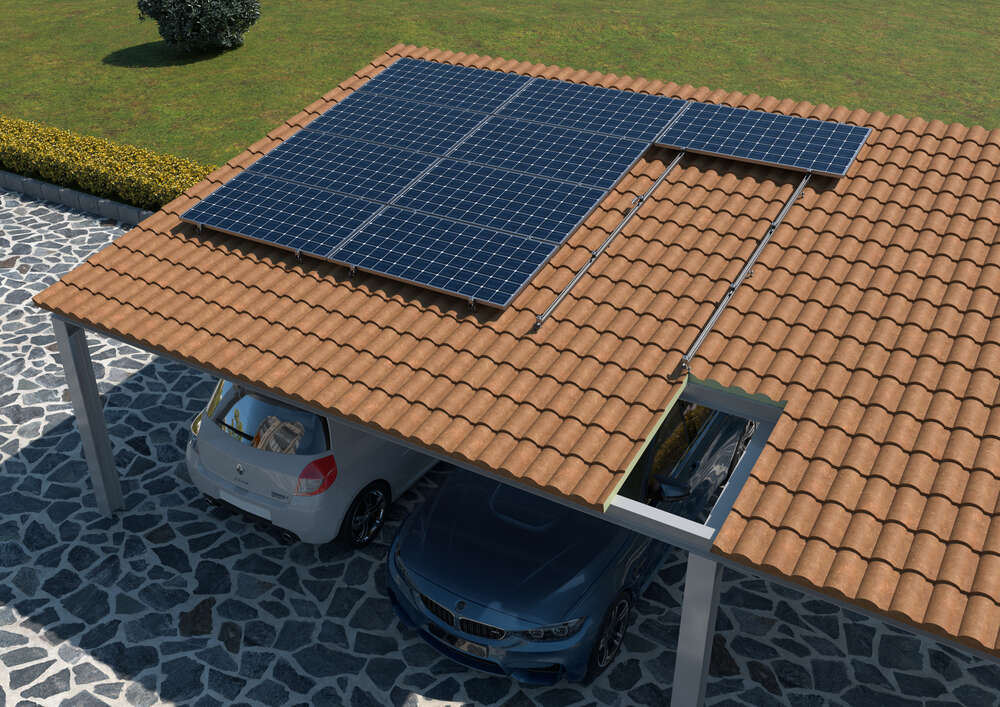

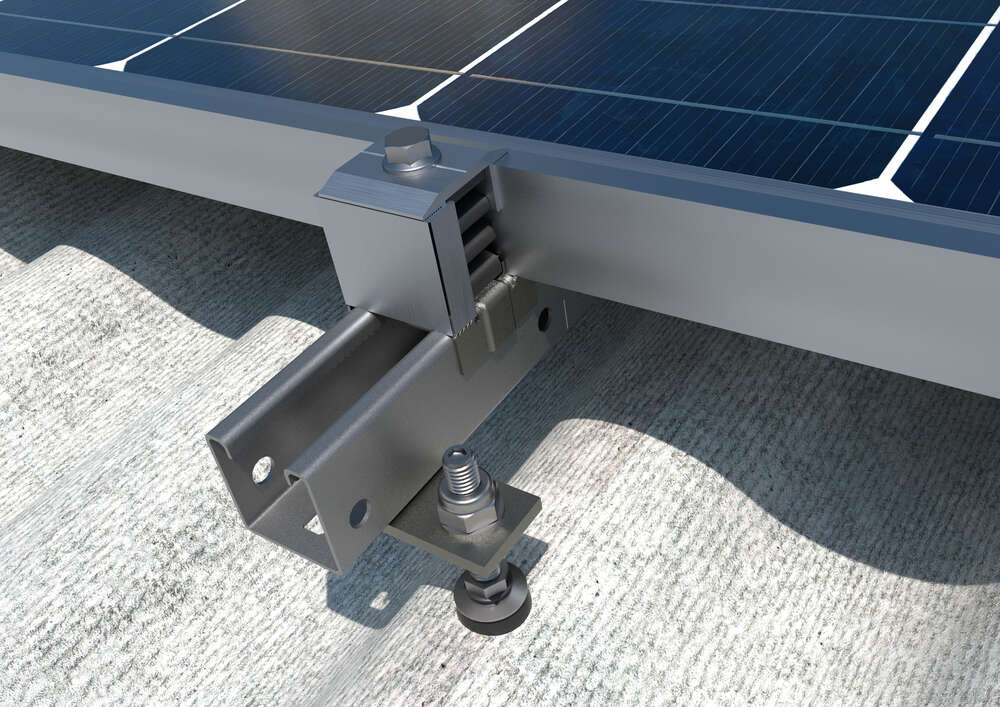

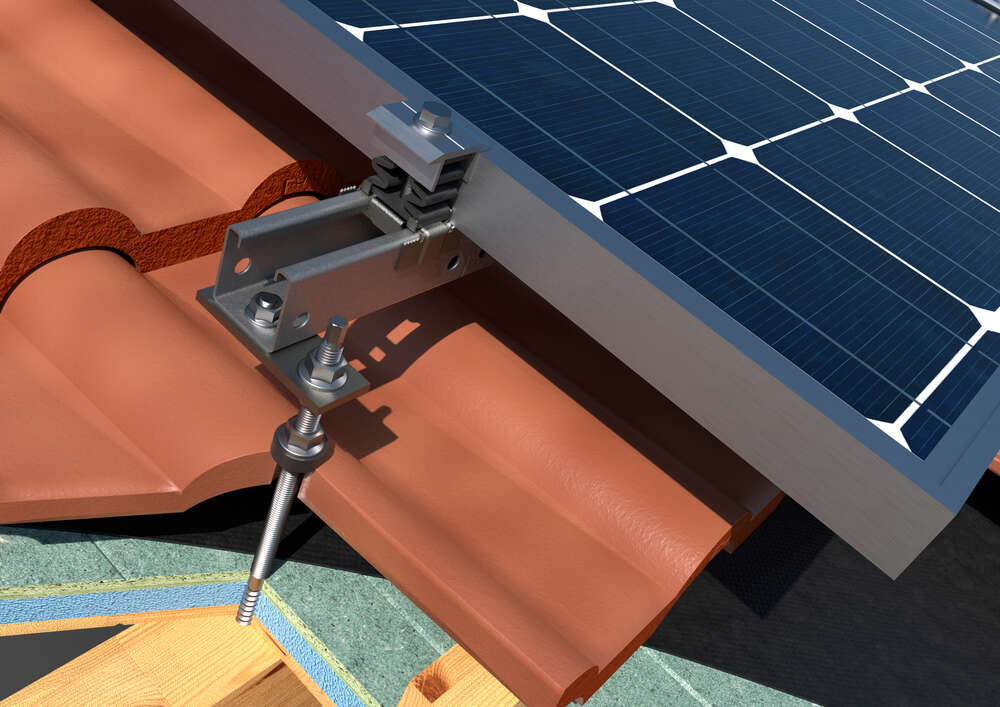

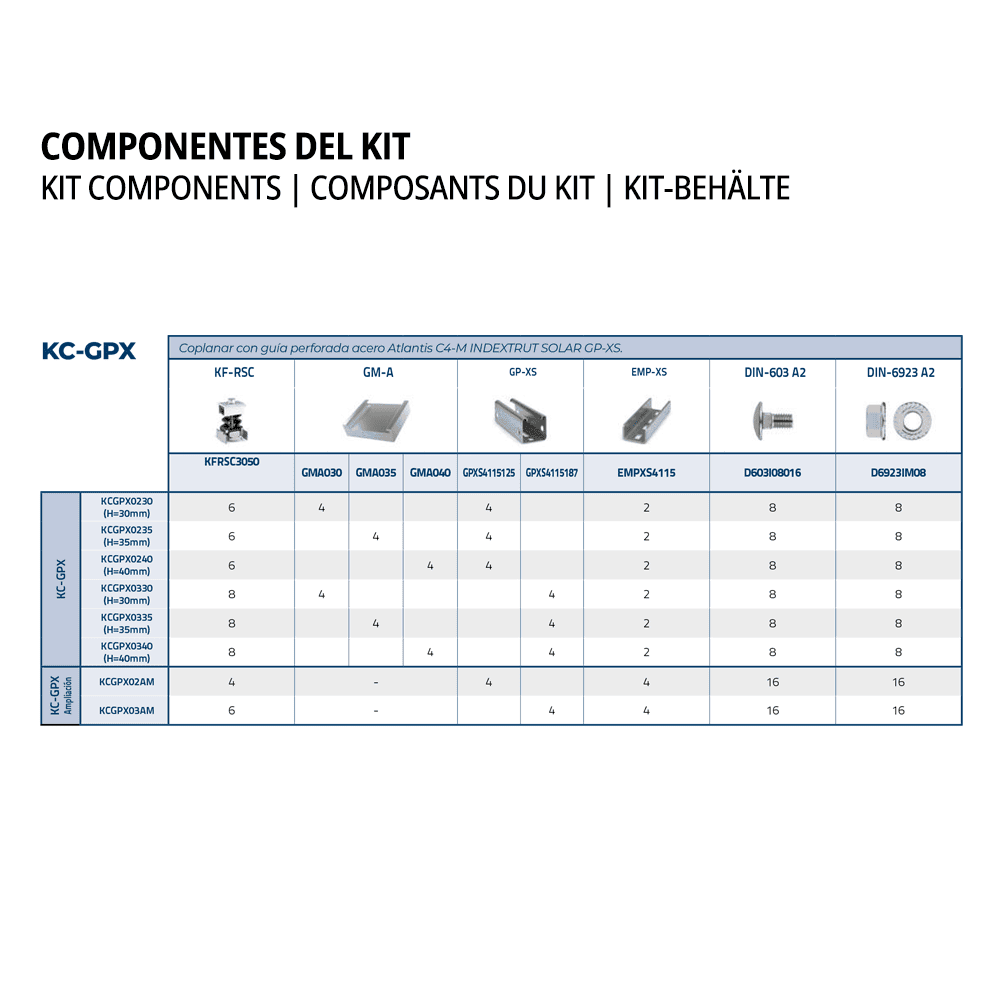

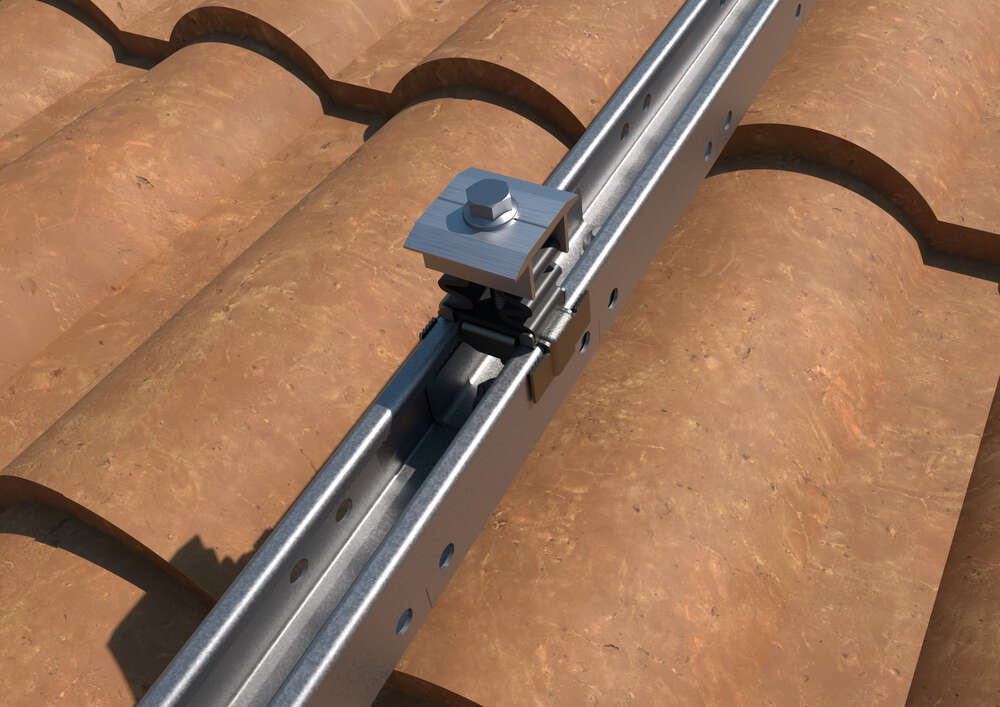

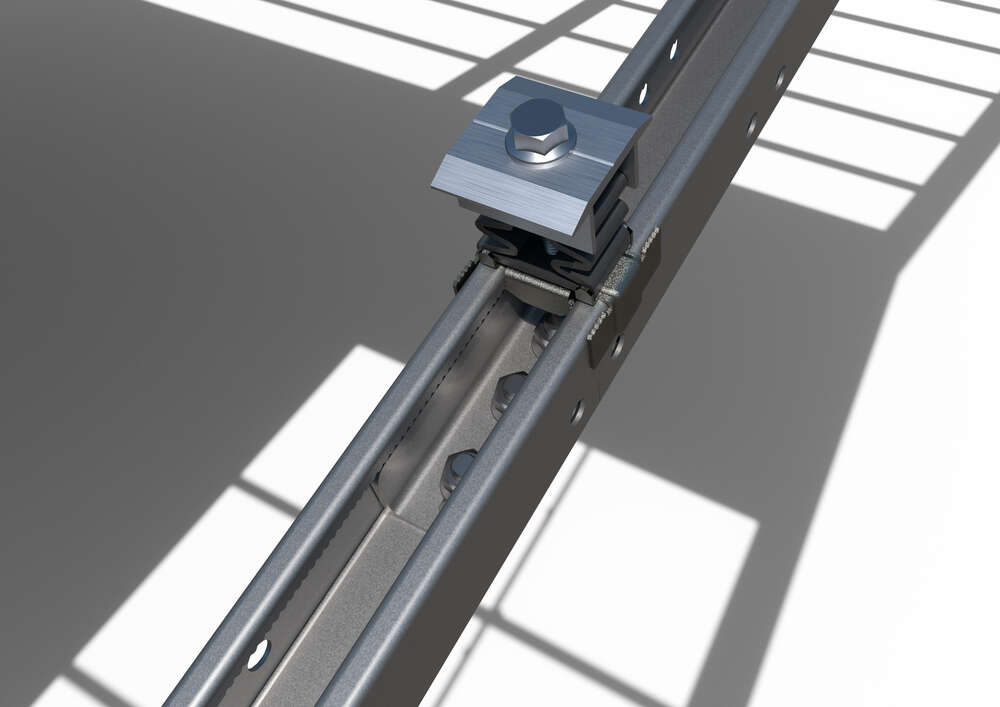

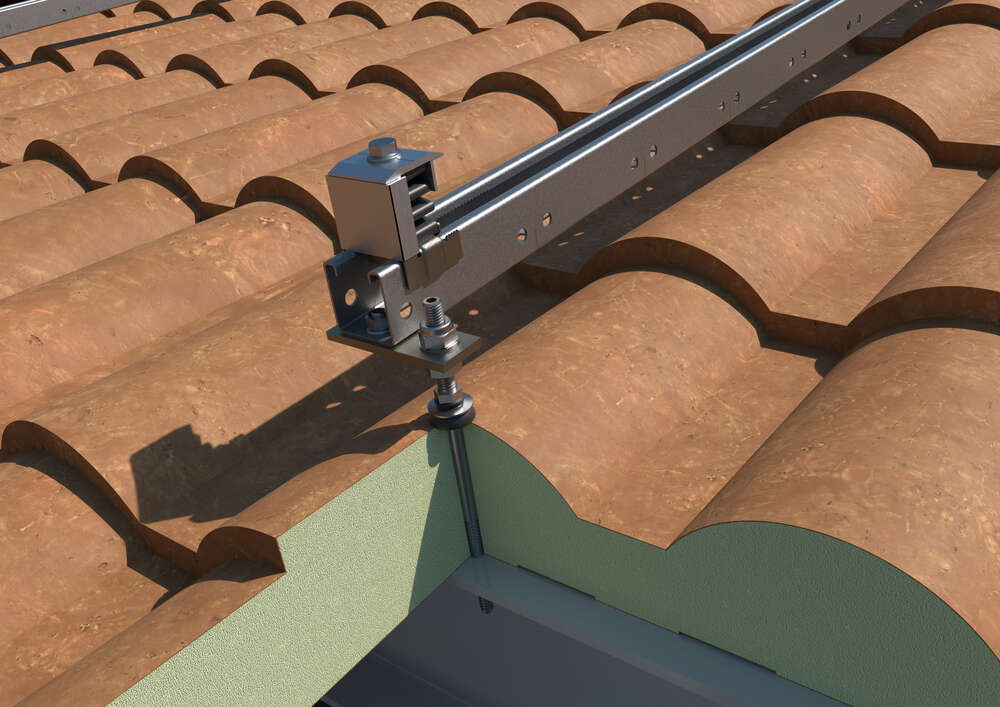

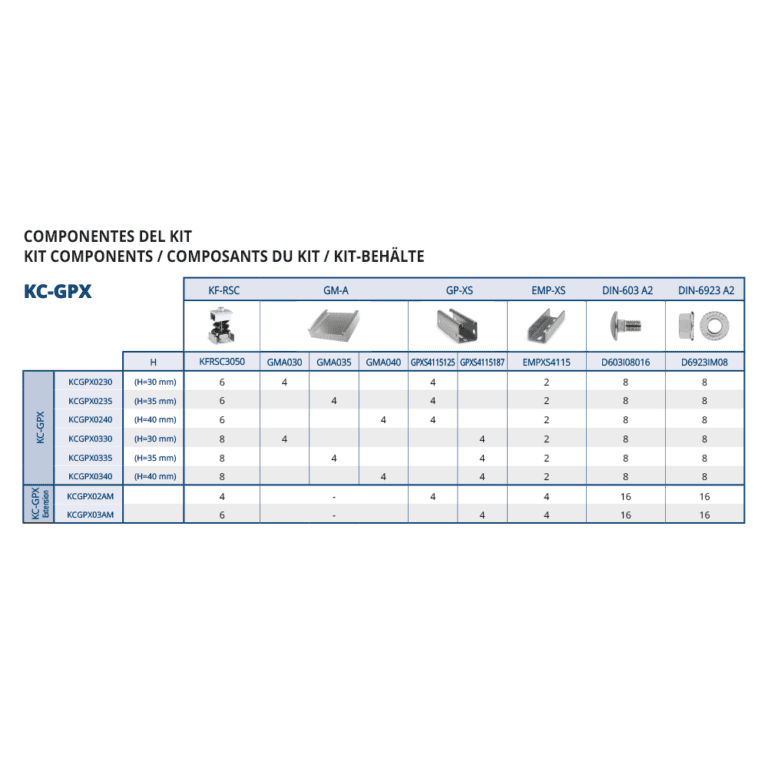

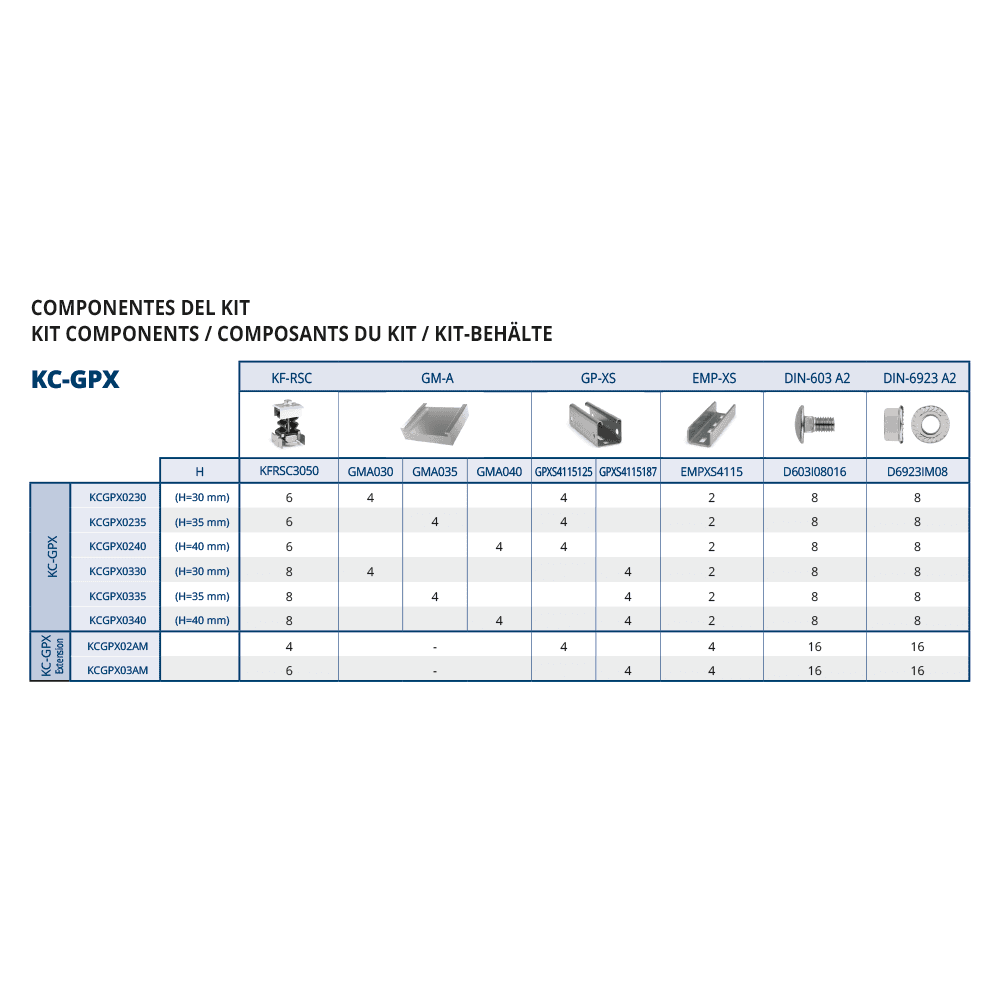

Kit de montagem para instalação de uma estrutura coplanar para painéis solares. Permite a fixação dos painéis em diferentes tipos de telhados inclinados, por meio de acessórios de fixação ajustáveis ou diretamente. Foi concebido de acordo com o sistema de montagem coplanar SC-GPX. Inclui guias perfuradas GP-XS para uma montagem contínua; peças de ligação EMPXS4115 com porcas DIN6923 e parafusos DIN-6921; clipes de fixação rápida KFR-SC e calibradores GM-A. Estão disponíveis vários modelos, com a possibilidade de instalar 2 ou 3 placas.
Amplie as informações
Variantes do produto
CódigoNº MódulosC Placa [mm]Uds. CaixaEANInfo. Técnica
KCGPX023023018423533902030
KCGPX023523518423533880963
KCGPX024024018423533880970
KCGPX02AM2018423533902450
KCGPX033033018423533902467
KCGPX033533518423533880987
KCGPX034034018423533880994
KCGPX03AM3018423533902474
