Produtos / Sistemas de Instalação / Sistemas de instalação e fixações para painéis solares / ISF-KT / KT-GPX
KT-GPX
KT-GPX
KT-GPX
KT-GPX
KT-GPX
KT-GPX

Estrutura triangular com calhas perfuradas KT-GPX

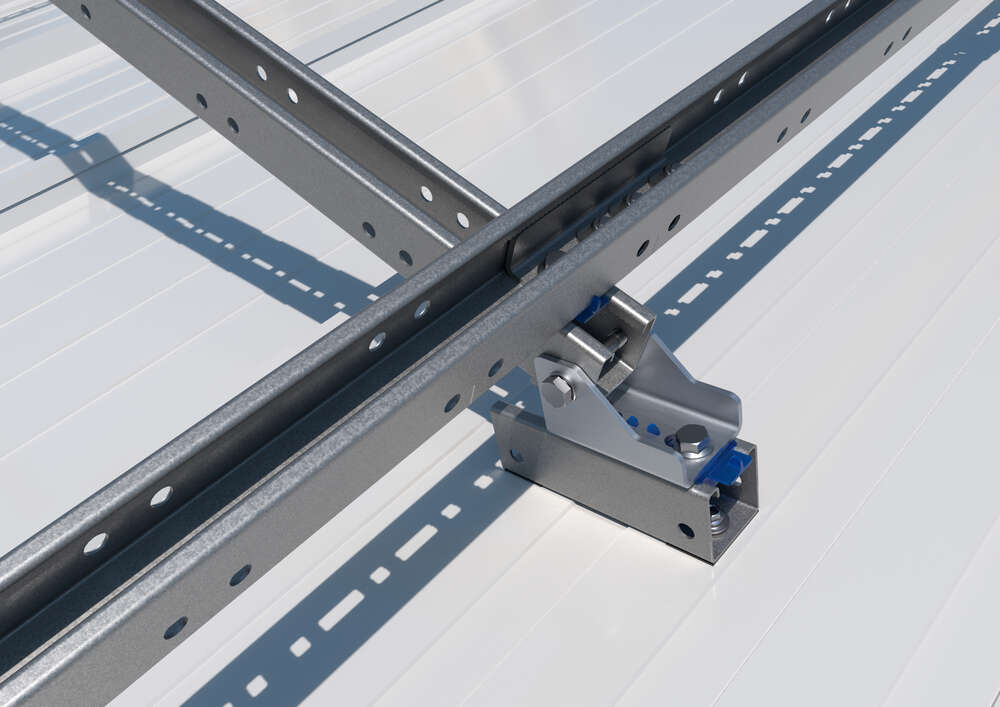

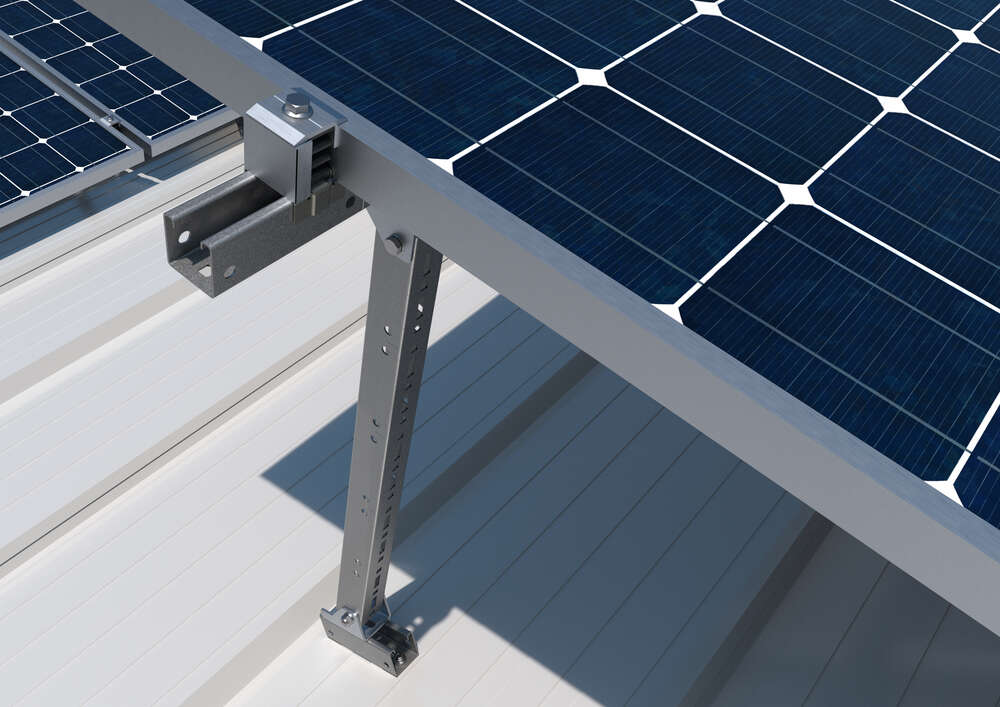

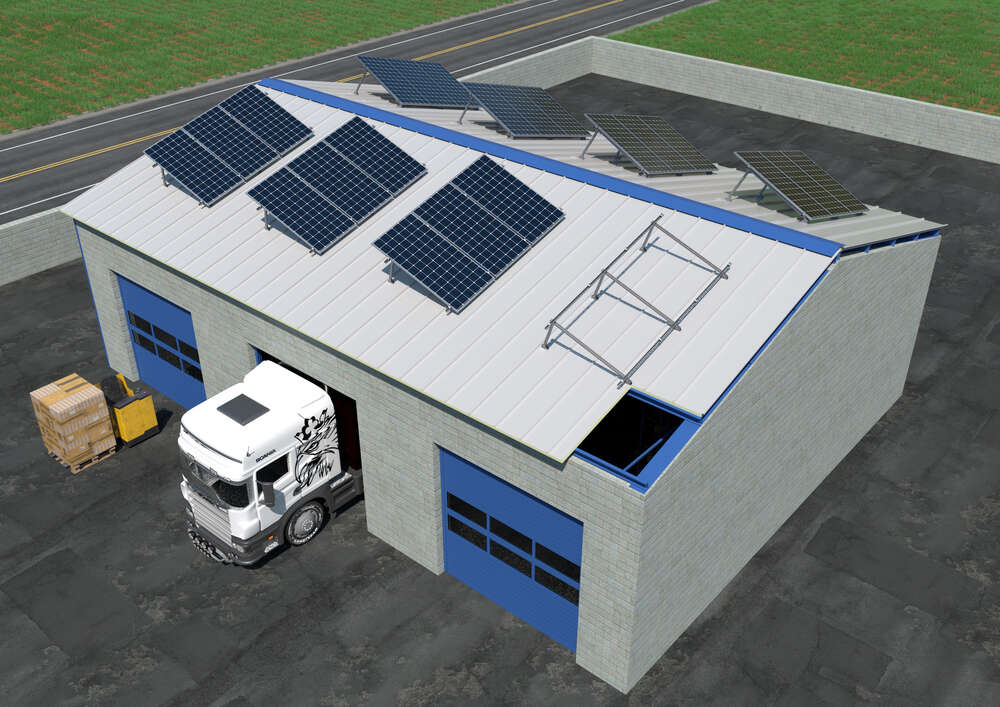

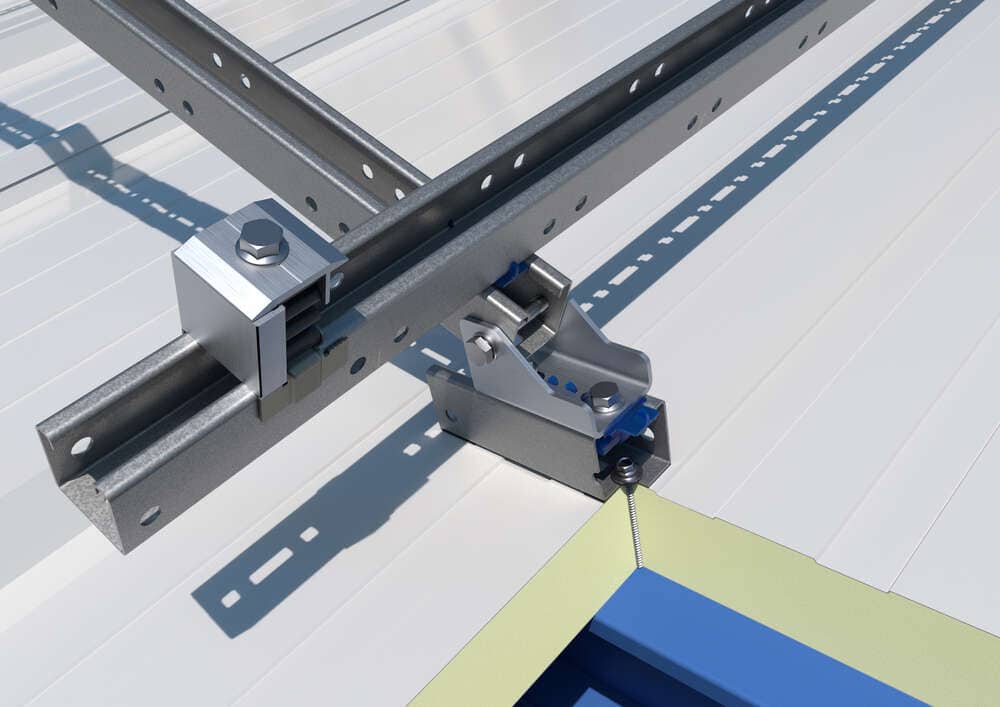

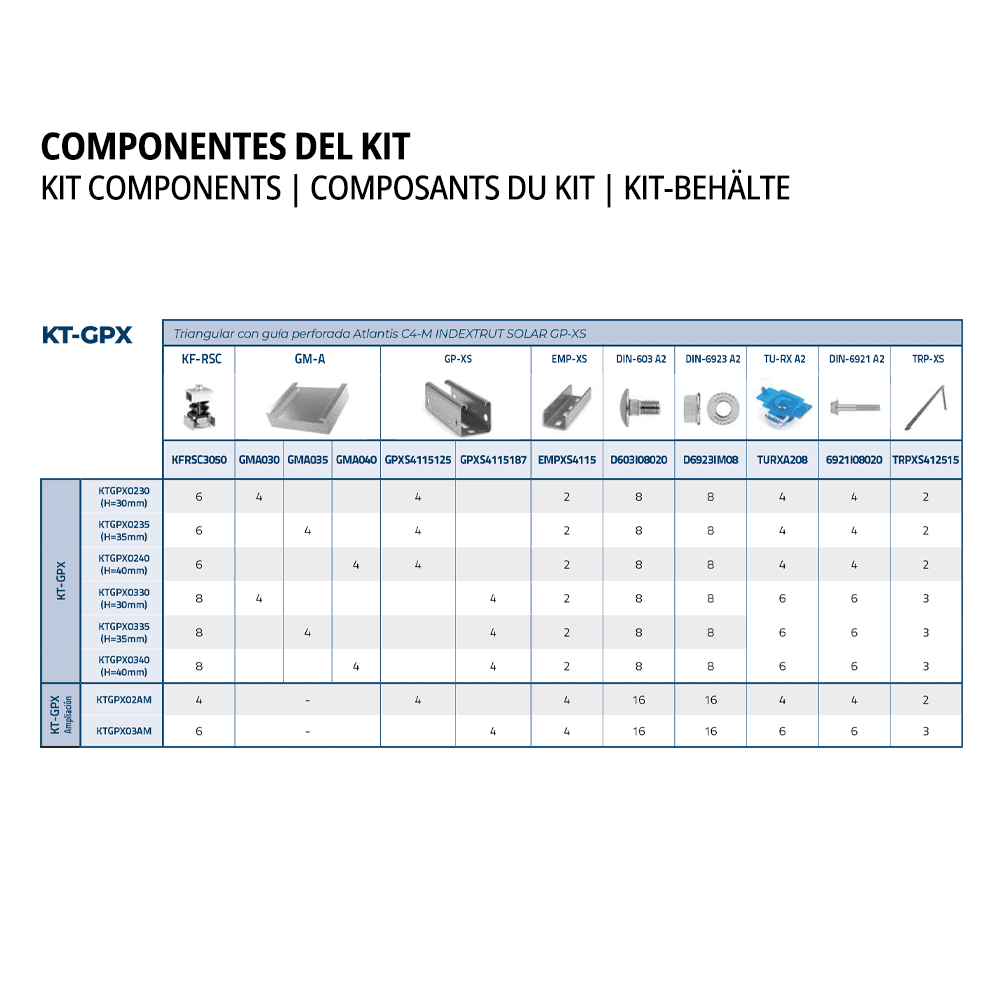

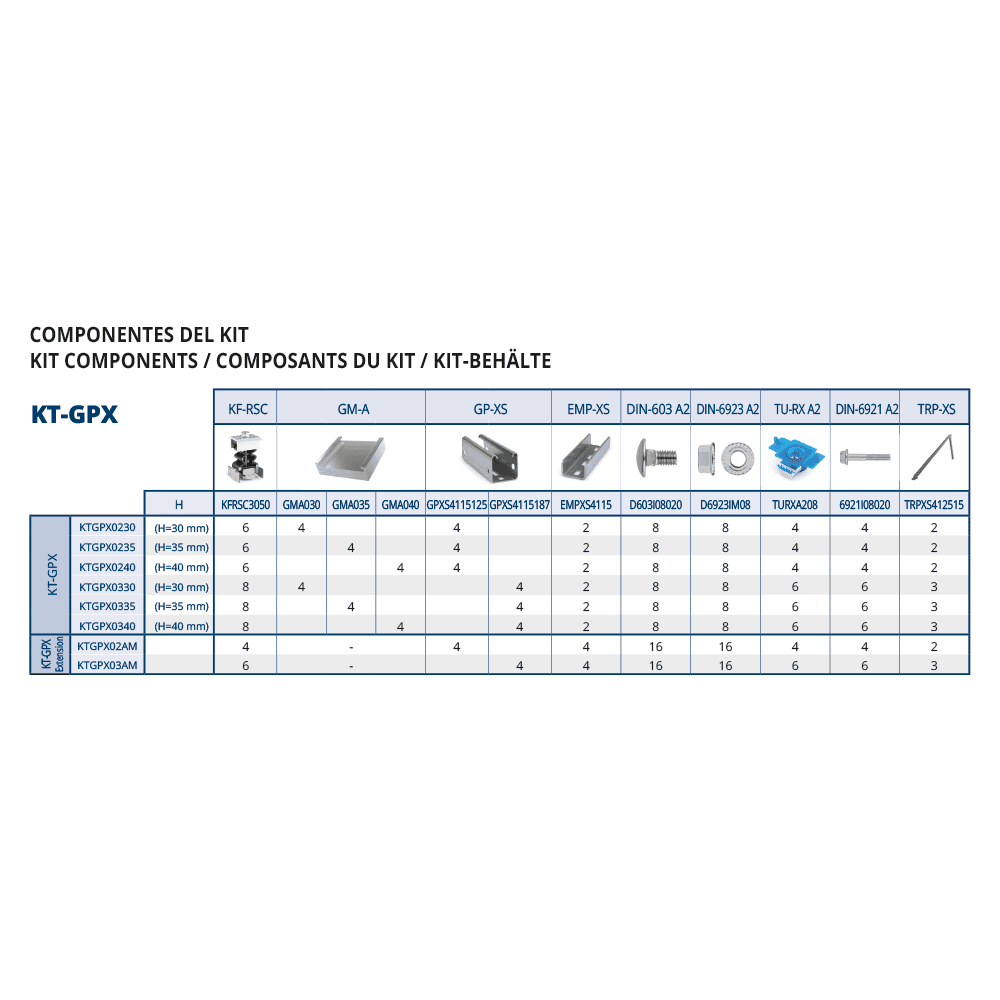

Kit de montagem para instalação de uma estrutura triangular para painéis solares. Permite a fixação dos painéis em telhados planos ou de baixa inclinação. A estrutura triangular pode ser ancorada à subestrutura sob o telhado ou montada numa estrutura auxiliar. O kit foi concebido de acordo com o sistema de montagem coplanar ST-GPX. Inclui triângulos ajustáveis TRP-XS; guias perfuradas GP-XS para montagem contínua; porcas rápidas TU-RXA2 e parafusos DIN-6921 A2 para unir os triângulos às guias; peças de ligação EMP-XS entre guias com porcas DIN-6923 e parafusos DIN-6921; grampos rápidos KFR-SC e calibres GM-A. Estão disponíveis vários modelos, com a possibilidade de instalar 2 ou 3 painéis.
Amplie as informações
Variantes do produto
CódigoNº MódulosC Placa [mm]InclinaçãoUds. CaixaEANInfo. Técnica
KTGPX023023020º/30º/35º18423533902627
KTGPX023523520º/30º/35º18423533881106
KTGPX024024020º/30º/35º18423533881113
KTGPX02AM2018423533902634
KTGPX033033020º/30º/35º18423533902542
KTGPX033533520º/30º/35º18423533881120
KTGPX034034020º/30º/35º18423533881137
KTGPX03AM3018423533902559

Solicitar mais informações
