Gewichtete Dreieckskonstruktion mit Südausrichtung KL-SUR

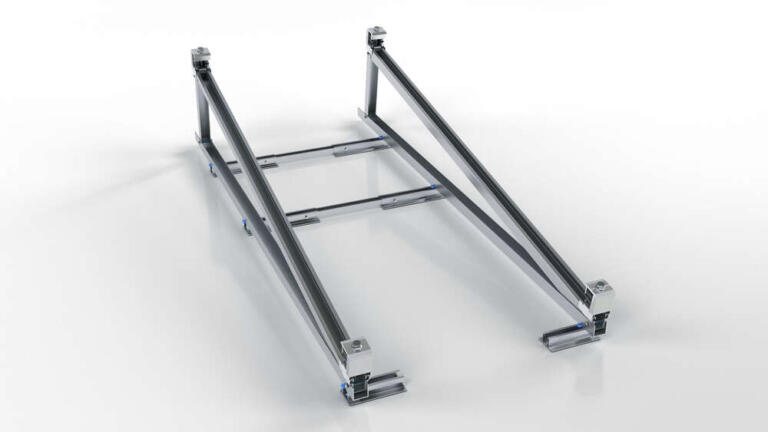

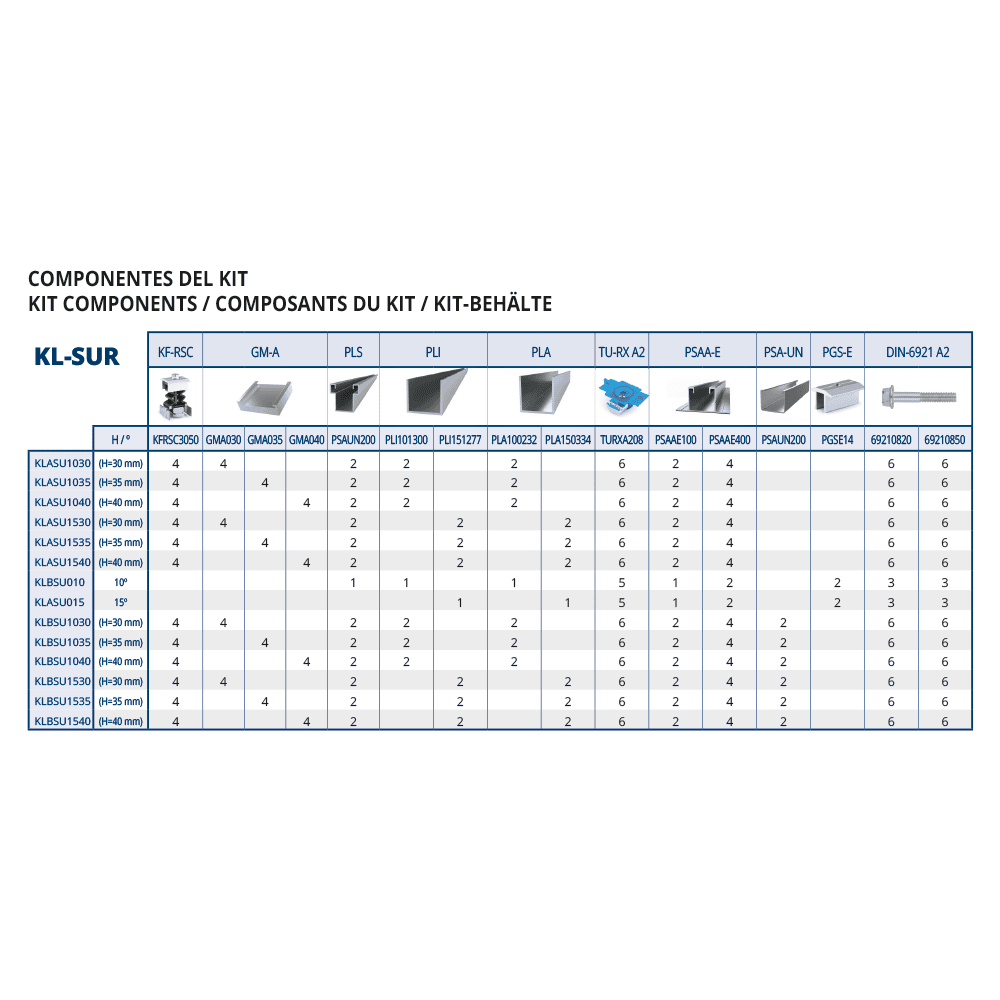

Montagesatz zur Installation einer mit Ballast beschwerten Dreieckskonstruktion für Solarmodule mit Südausrichtung. Ermöglicht die Anbringung der Module auf mit Ballast befestigten Dreiecken auf Flachdächern oder Dächern mit geringer Neigung. Im Lieferumfang enthalten sind vormontierte Dreiecke, Aluminiumprofile mit Flanschen und EPDM PSA-AE, Schnellbefestigungsklammern KFR-SC, Schnellbefestigungsmuttern TU-RX A2 sowie weitere Montageteile für den Aufbau der Konstruktion. Das Set ist nach dem SL-SUR-System konzipiert. Es sind verschiedene Modelle erhältlich, die die Installation von 1 oder 2 Modulen ermöglichen.
Informationen verstärken

Zulassungen und zertifikate

+ info
  • CE 2025
Produktvarianten
CodeNº ModulenPLATTENHÖHE [mm]NeigungStk. VerpackungEANTechnische Info.
KLASU103013010º18423533930798
KLASU103513510º18423533930804
KLASU104014010º18423533930811
KLASU153013015º18423533930828
KLASU153513515º18423533930835
KLASU154014015º18423533930842
KLBSU0101010º18423533933249
KLBSU0151015º18423533933256
KLBSU103013010º18423533933263
KLBSU103513510º18423533933270
KLBSU104014010º18423533933287
KLBSU153013015º18423533933294
KLBSU153513515º18423533933300
KLBSU154014015º18423533933317
